With Automatic Transaxle

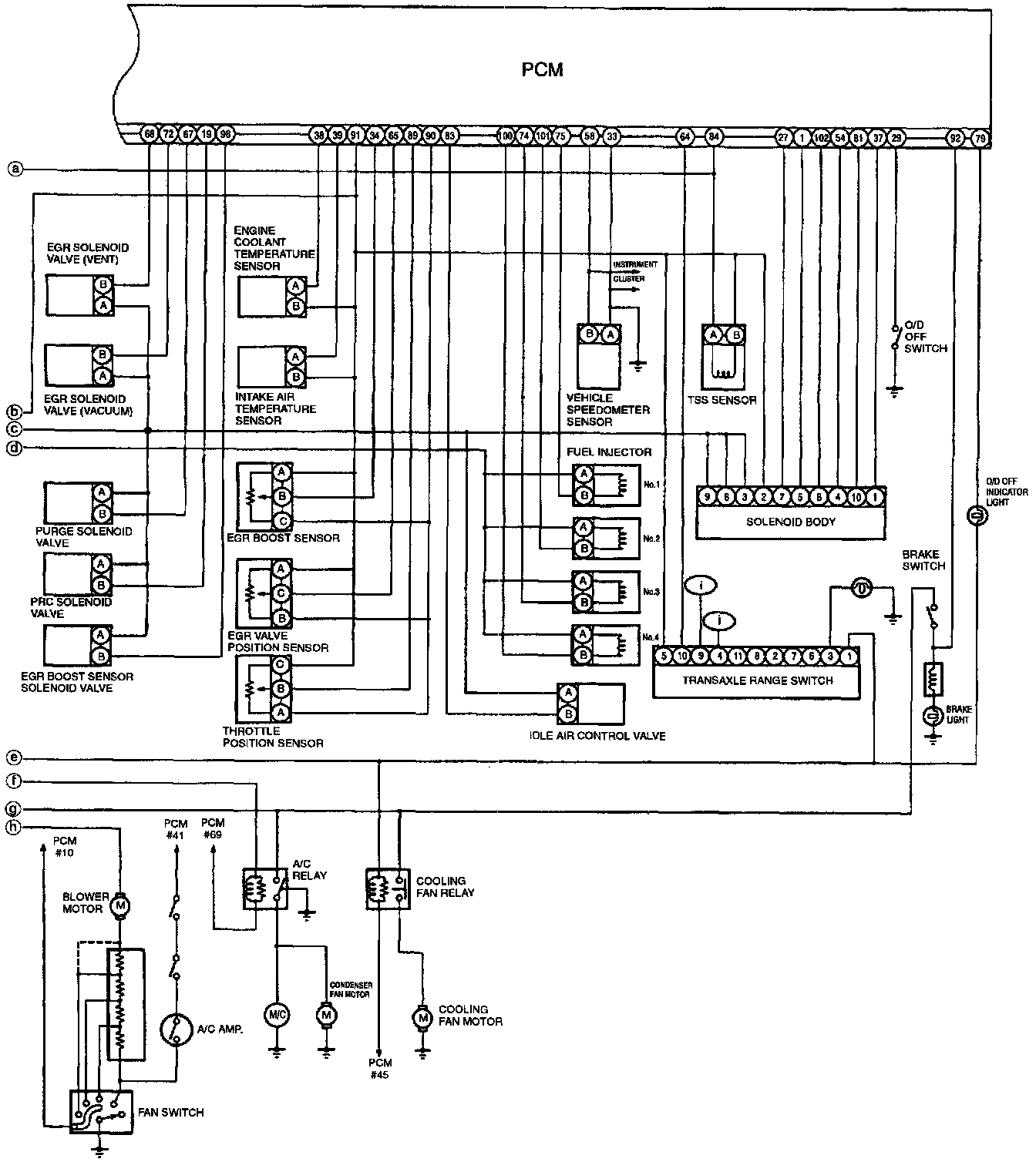

System Wiring Diagram (1 Of 2):

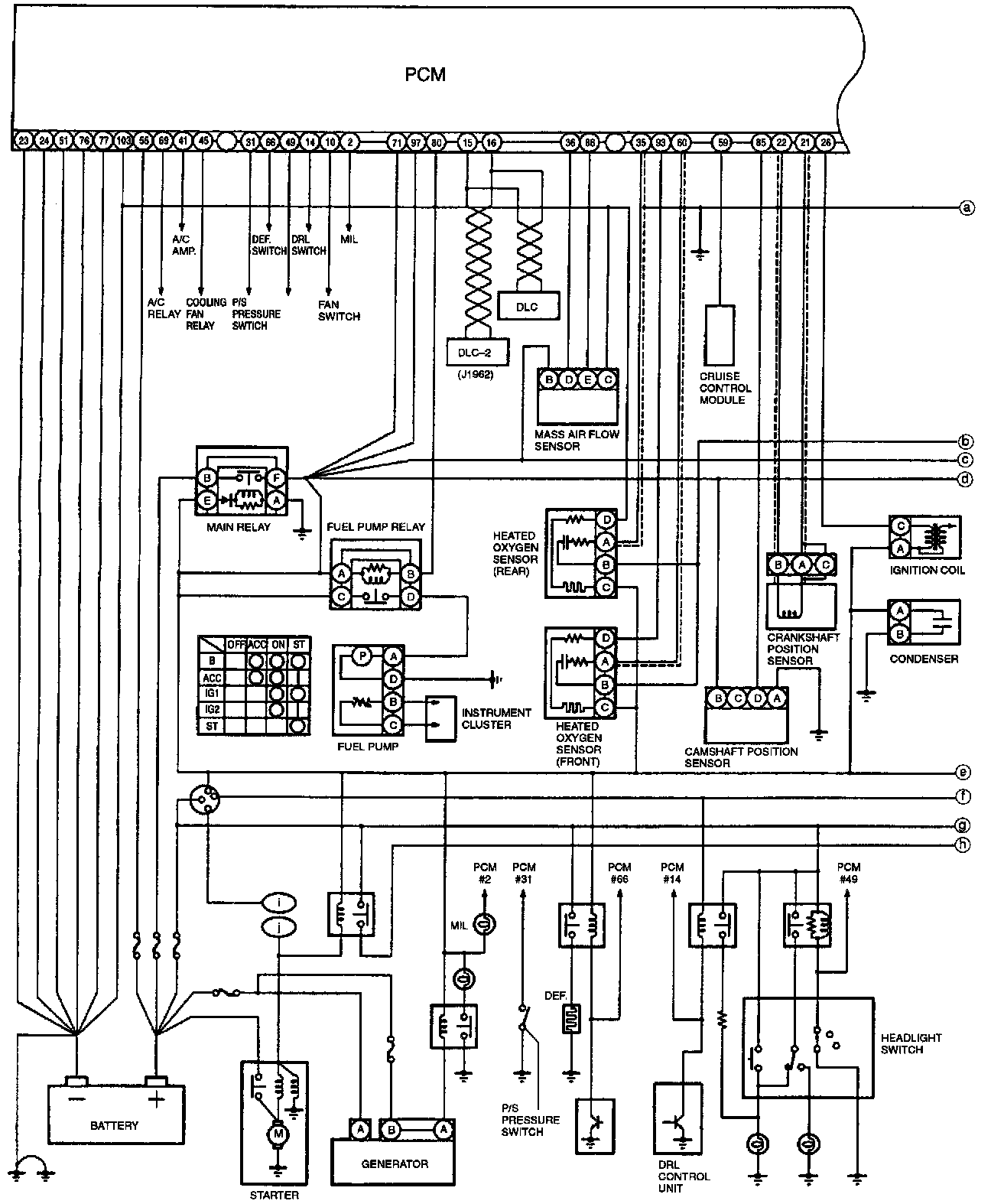

System Wiring Diagram (2 Of 2):

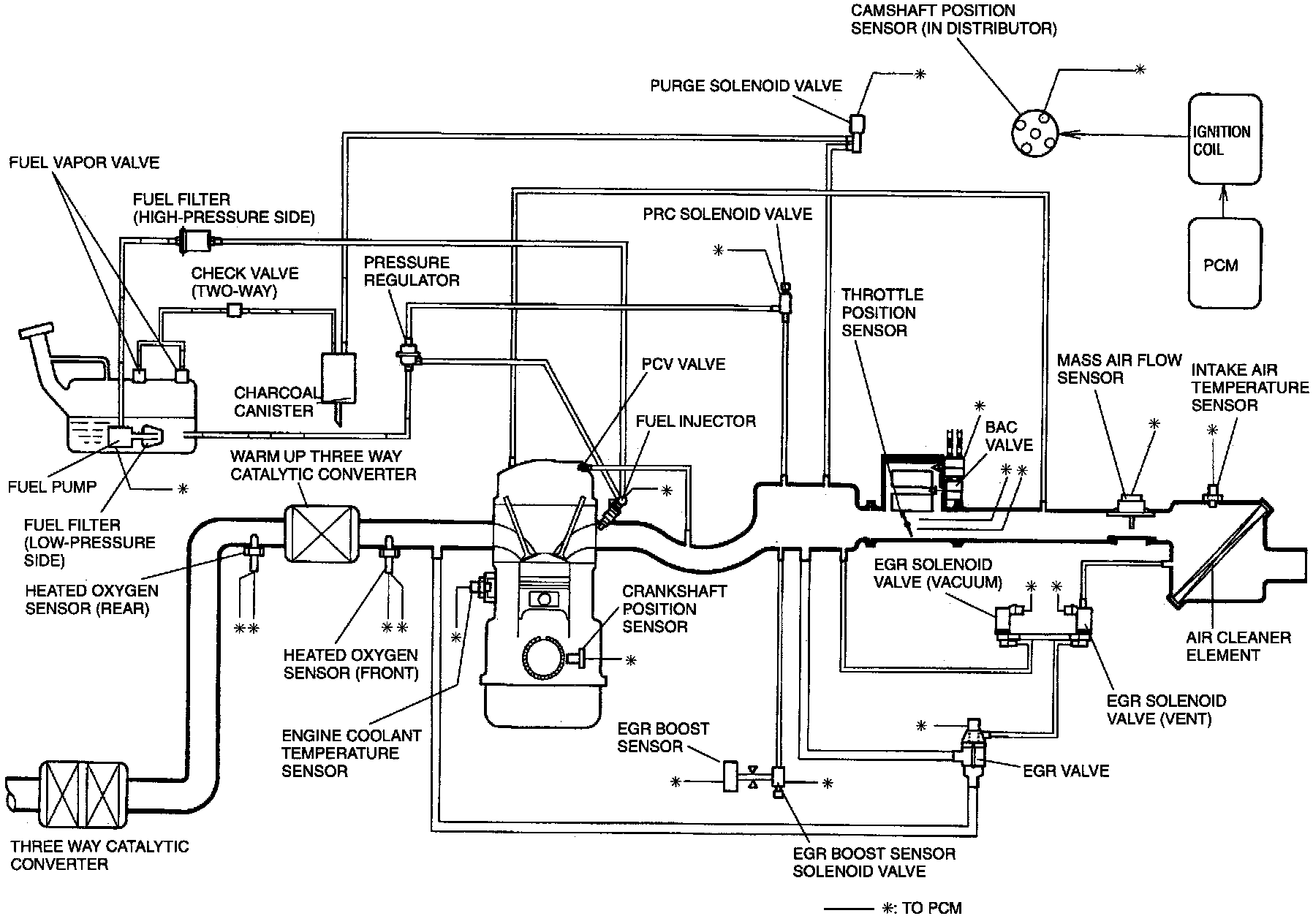

Fuel And Emissions System Diagram:
