Engine Control Module: Diagrams

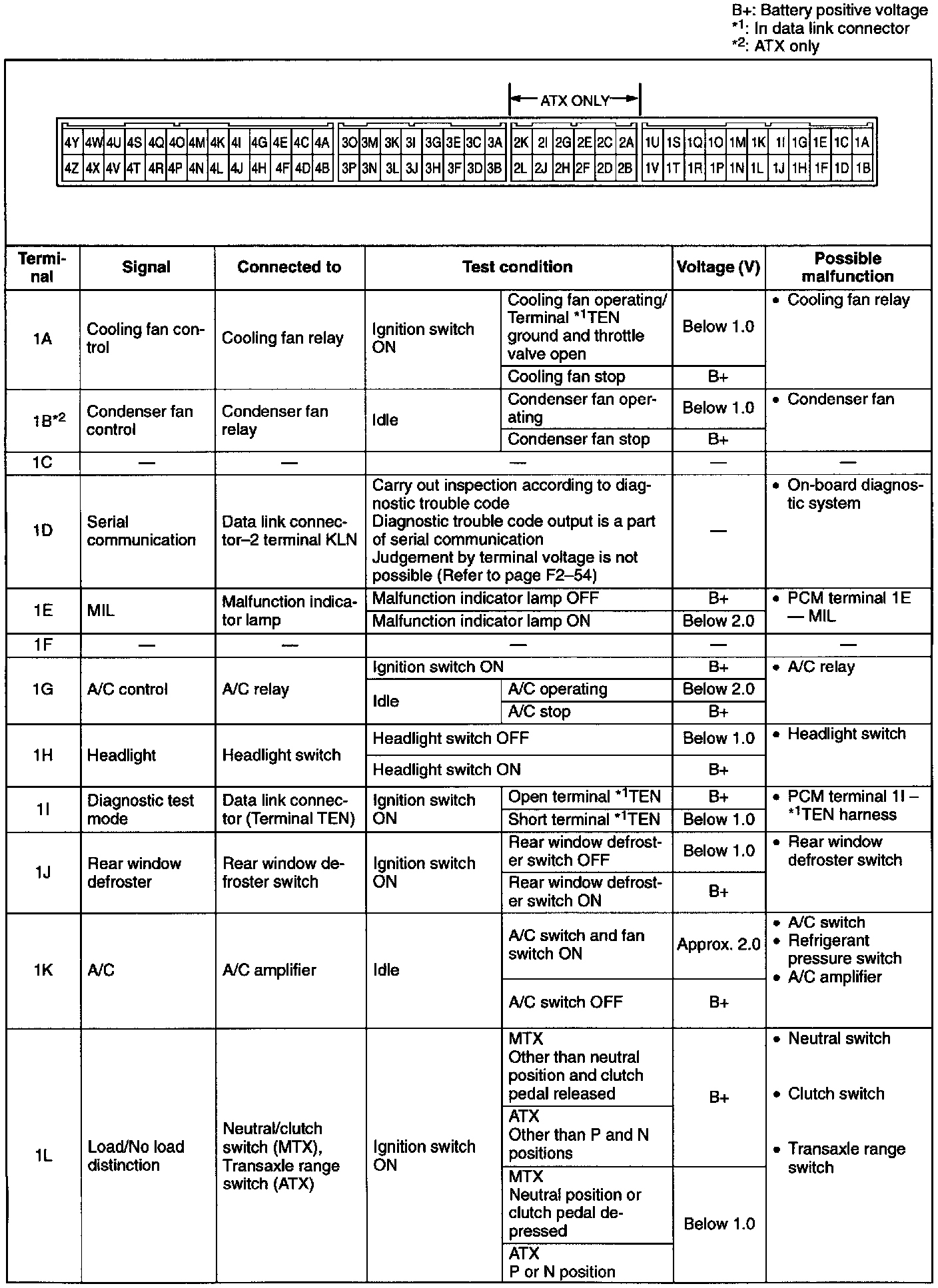

Terminal Voltage References Part 1 of 5:

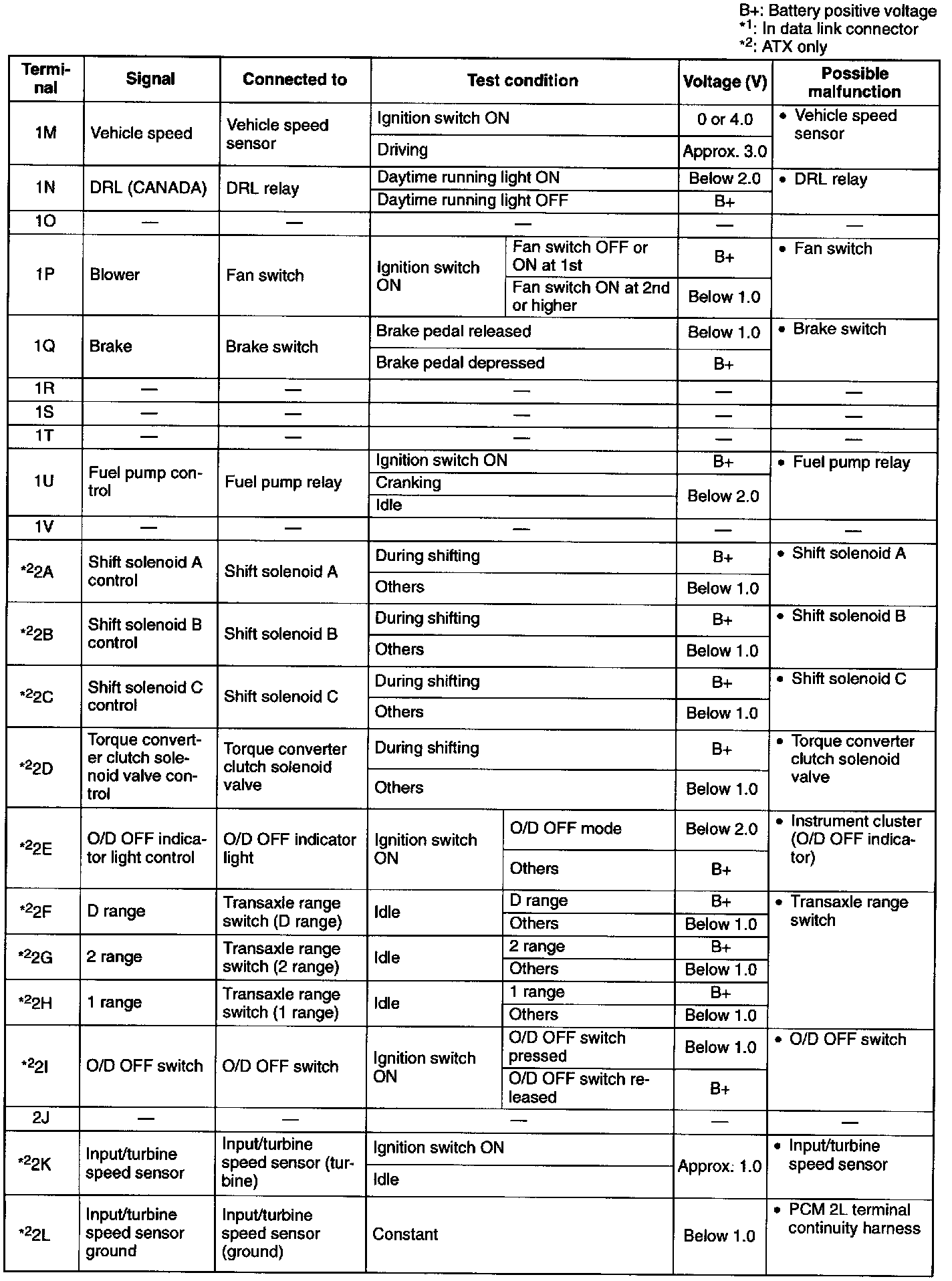

Terminal Voltage References Part 2 of 5:

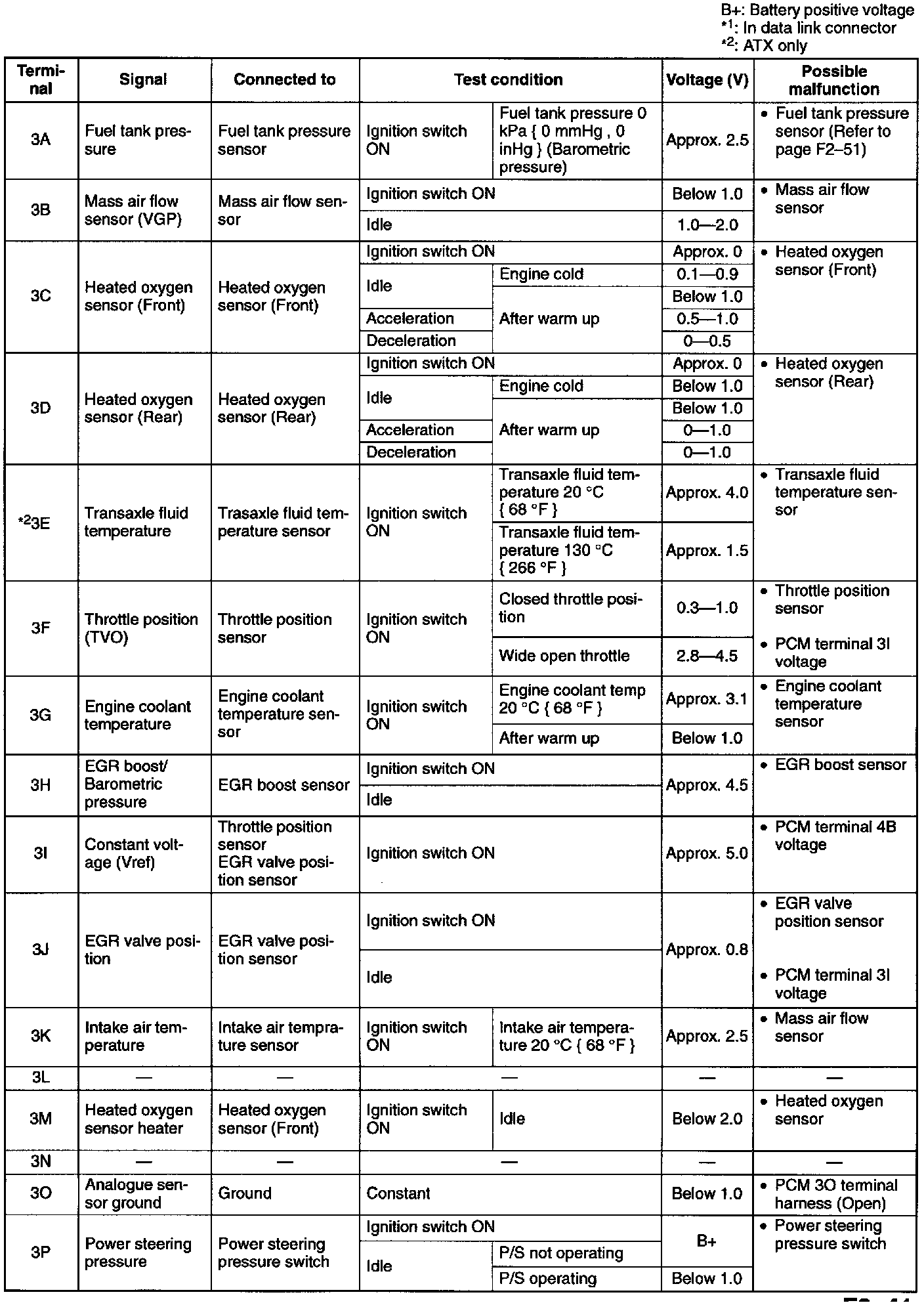

Terminal Voltage References Part 3 of 5:

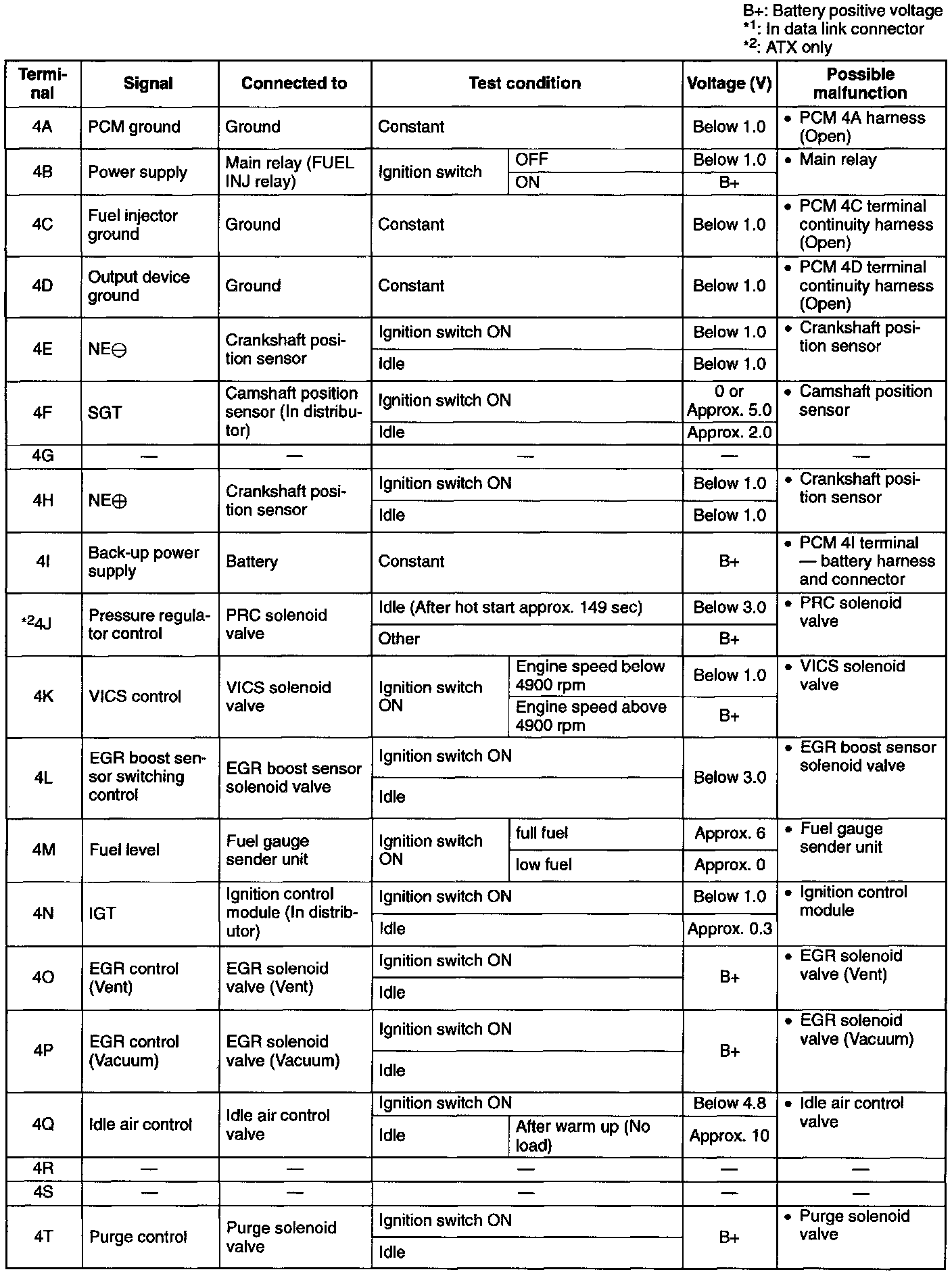

Terminal Voltage References Part 4 of 5:






Terminal Voltage References Part 5 of 5:
