Home >> Mazda >> 1996 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations >> Connector Locations

Connector Locations

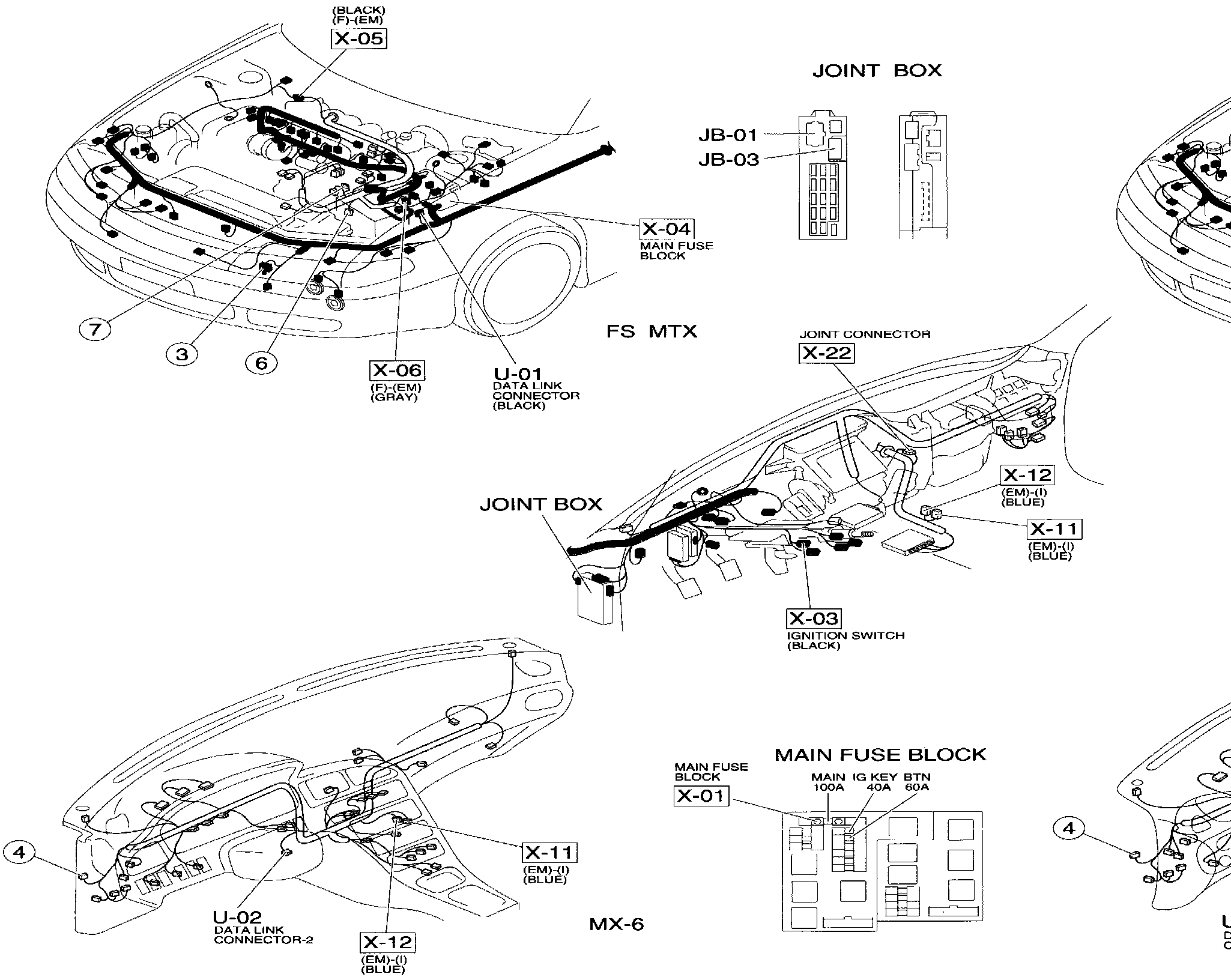

�on4Connector Locations:

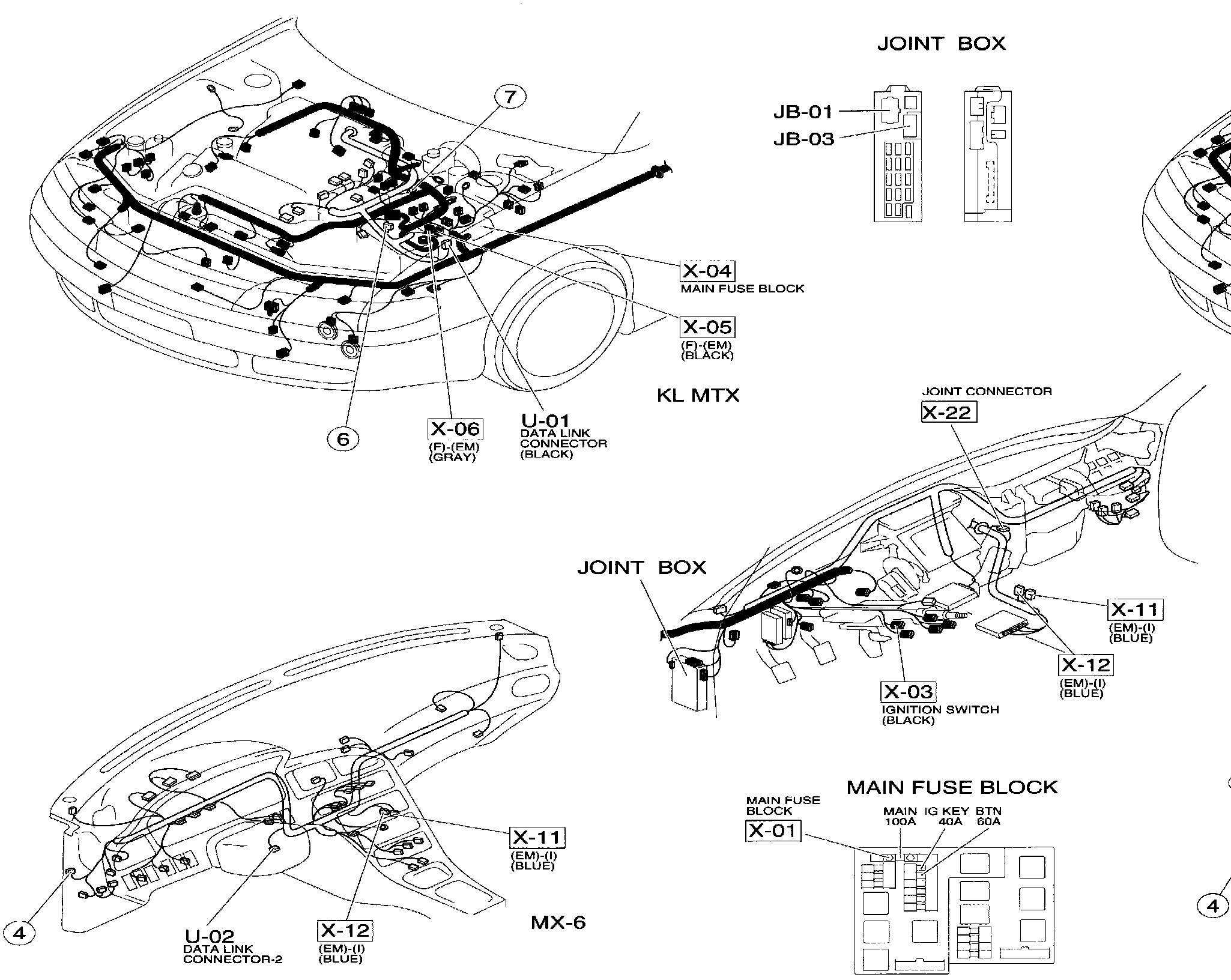

�-o4Connector Locations:
