Flowchart 8

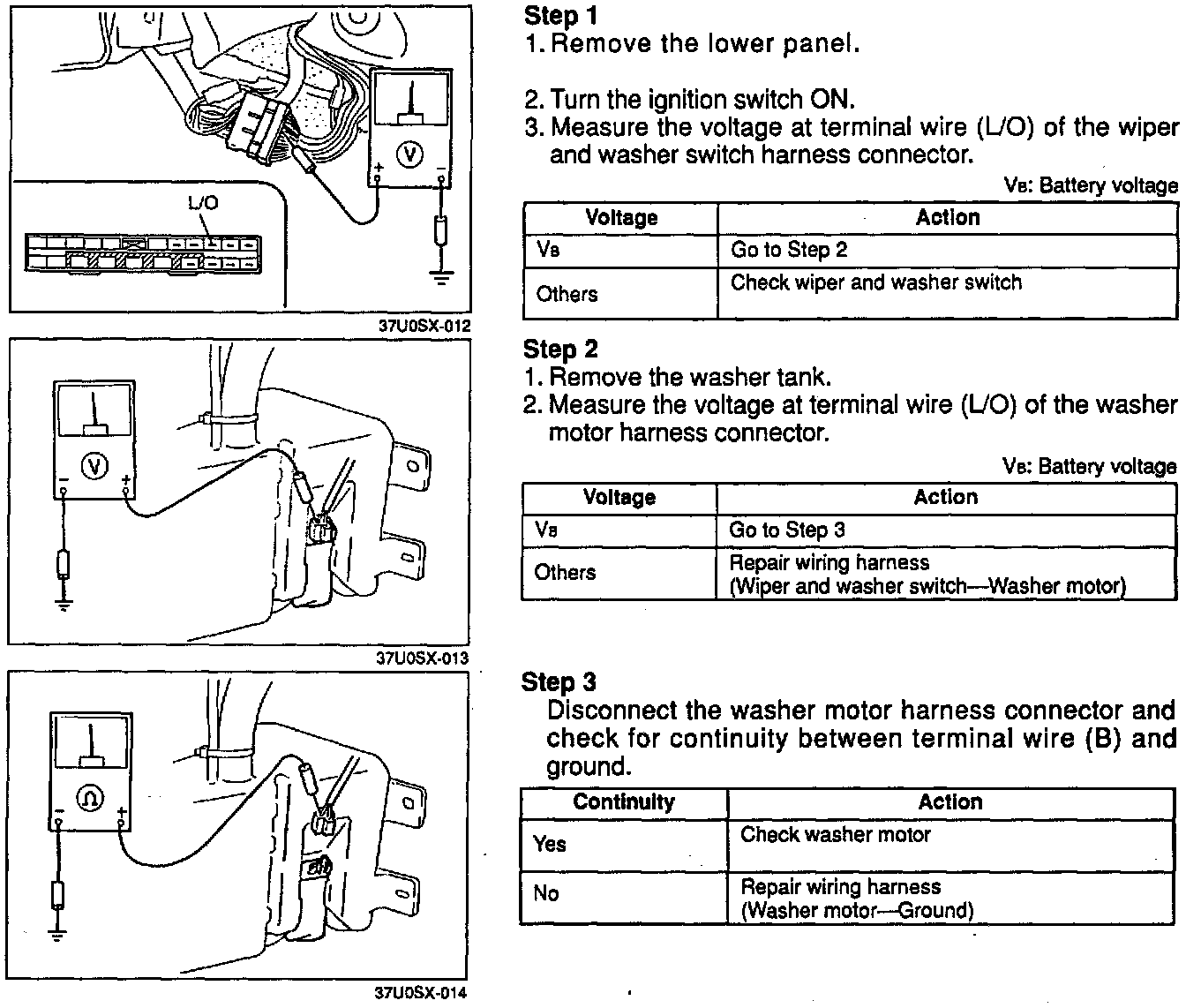

Flowchart 8 - No Washer Operation (Part 1):



Flowchart 8 - No Washer Operation (Part 2):
