Home >> Mazda >> 1995 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Central Control Module >> Terminals I-P

Terminals I-P

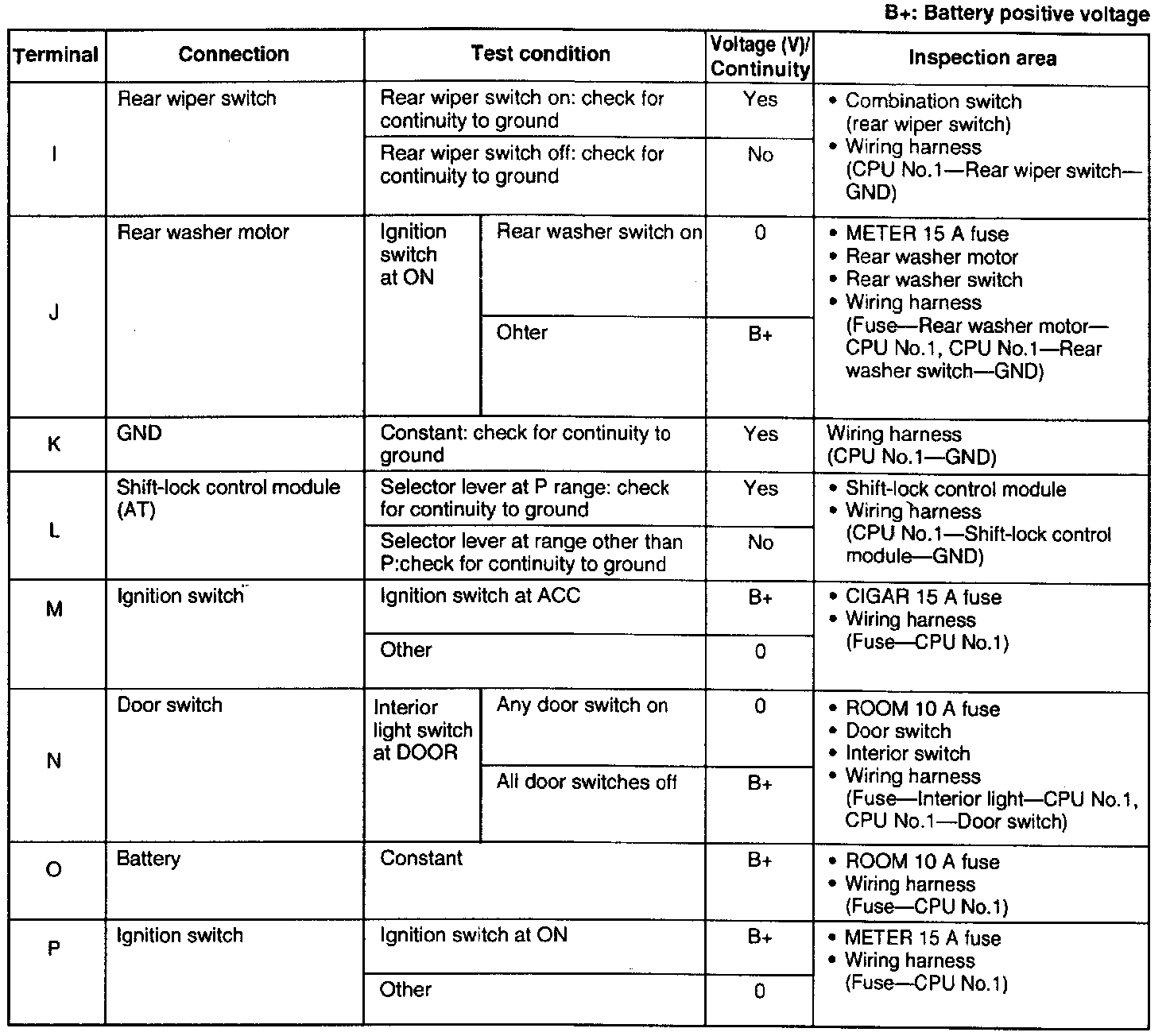

Terminal Voltage Charts:
