EC-AT Control System

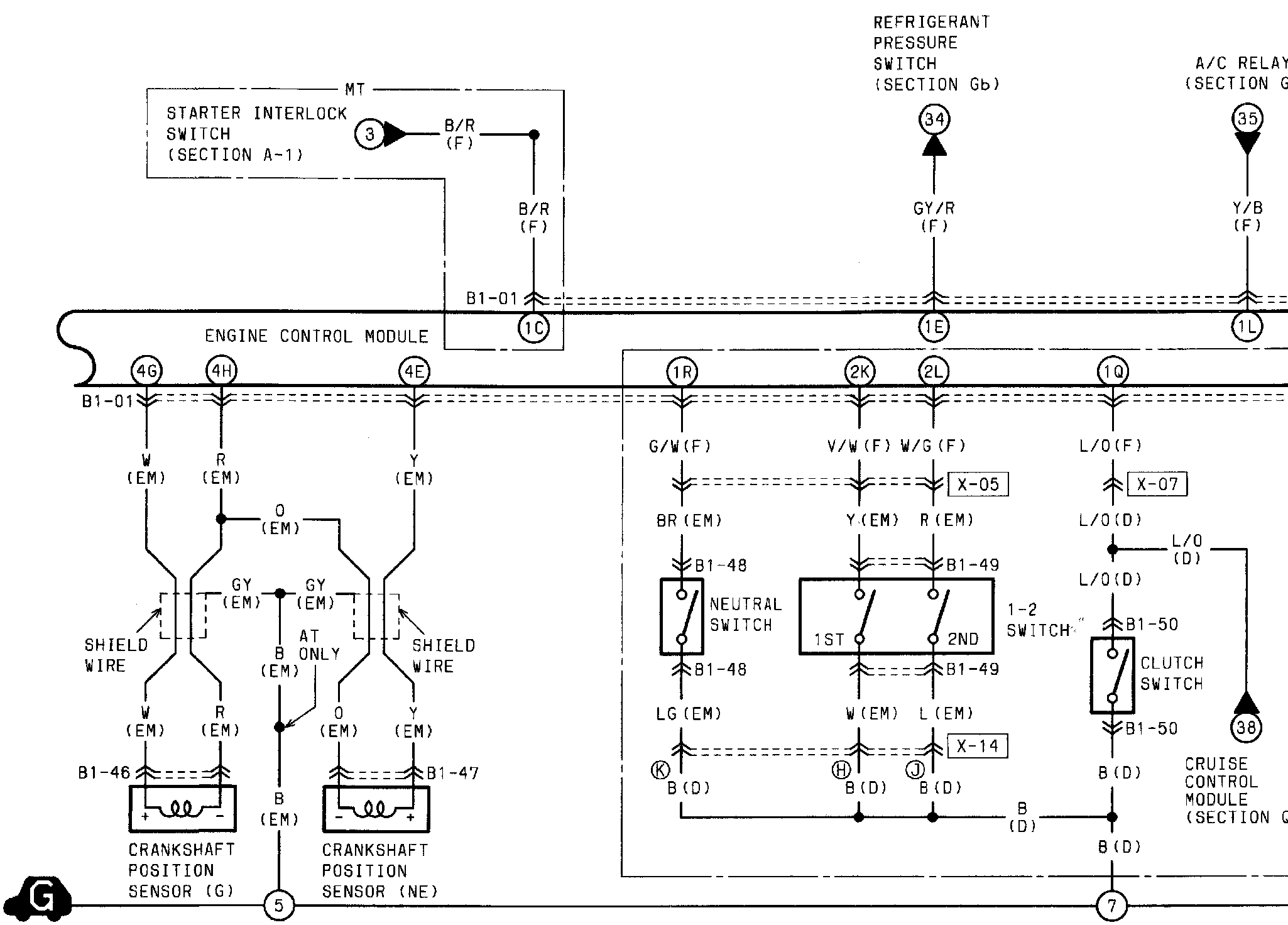

�0FEngine Control System, Fuel Control System, Ignition System B-1A:

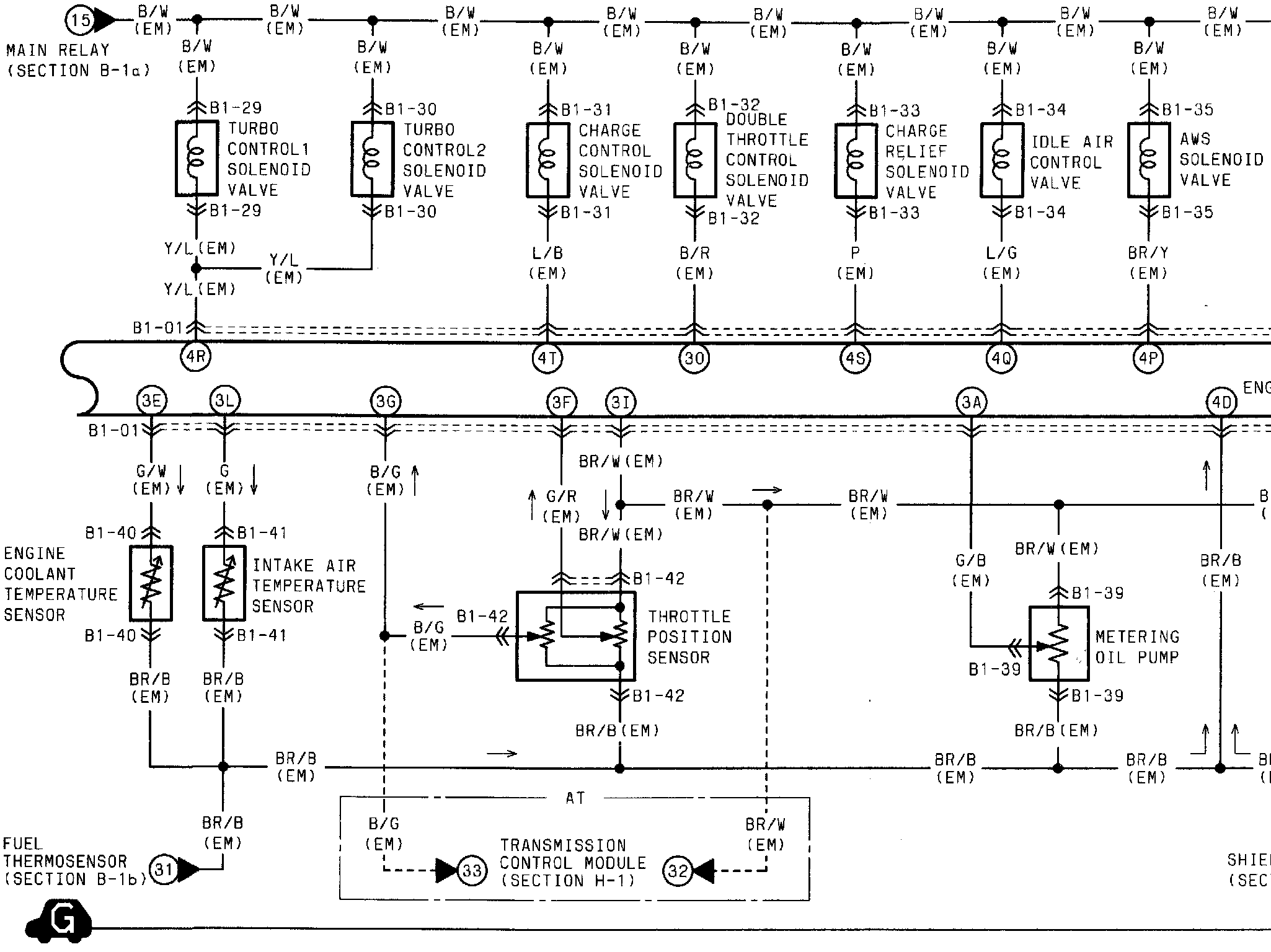

��FEngine Control System, Fuel Control System B-1B:

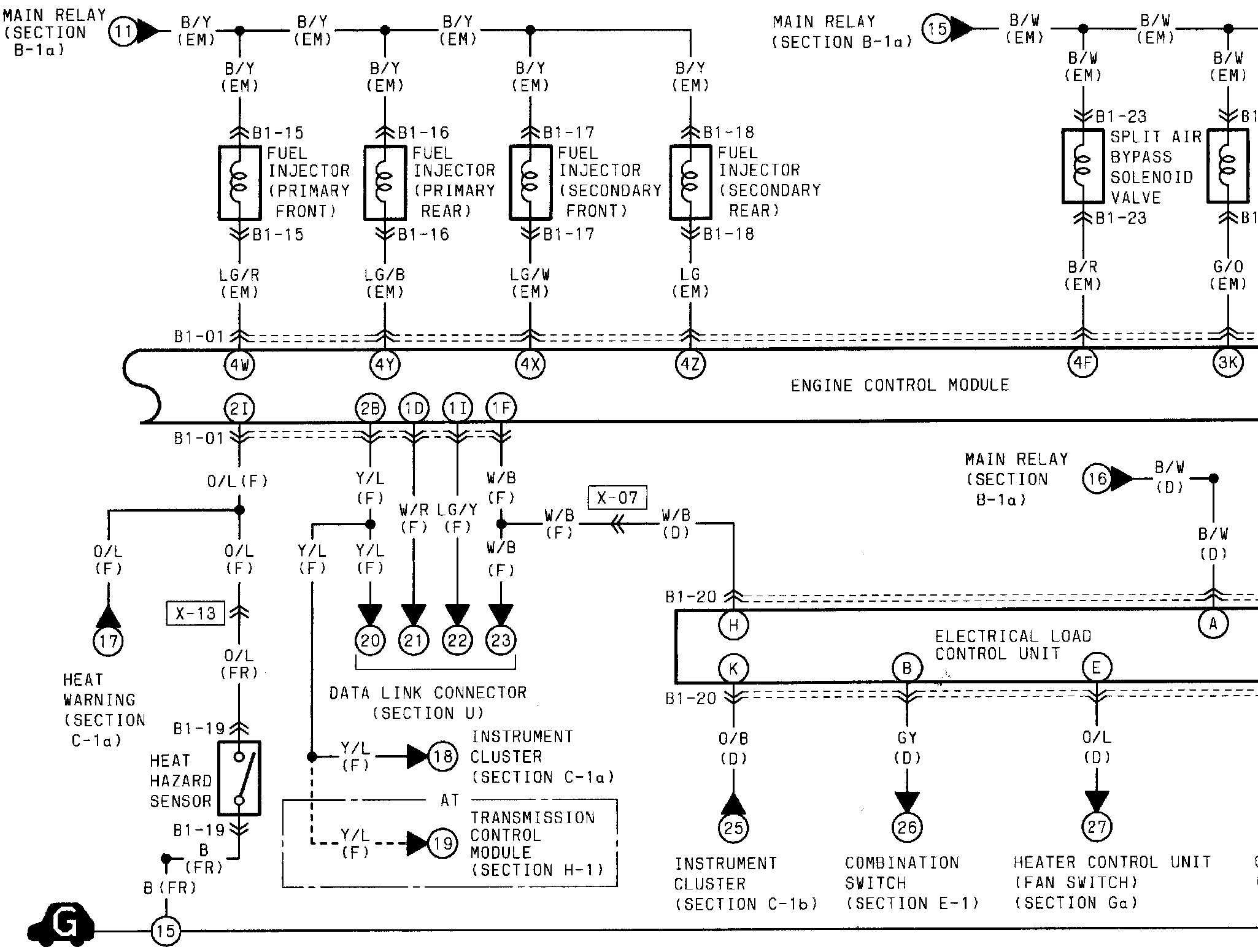

�QFEngine Control System B-1C:

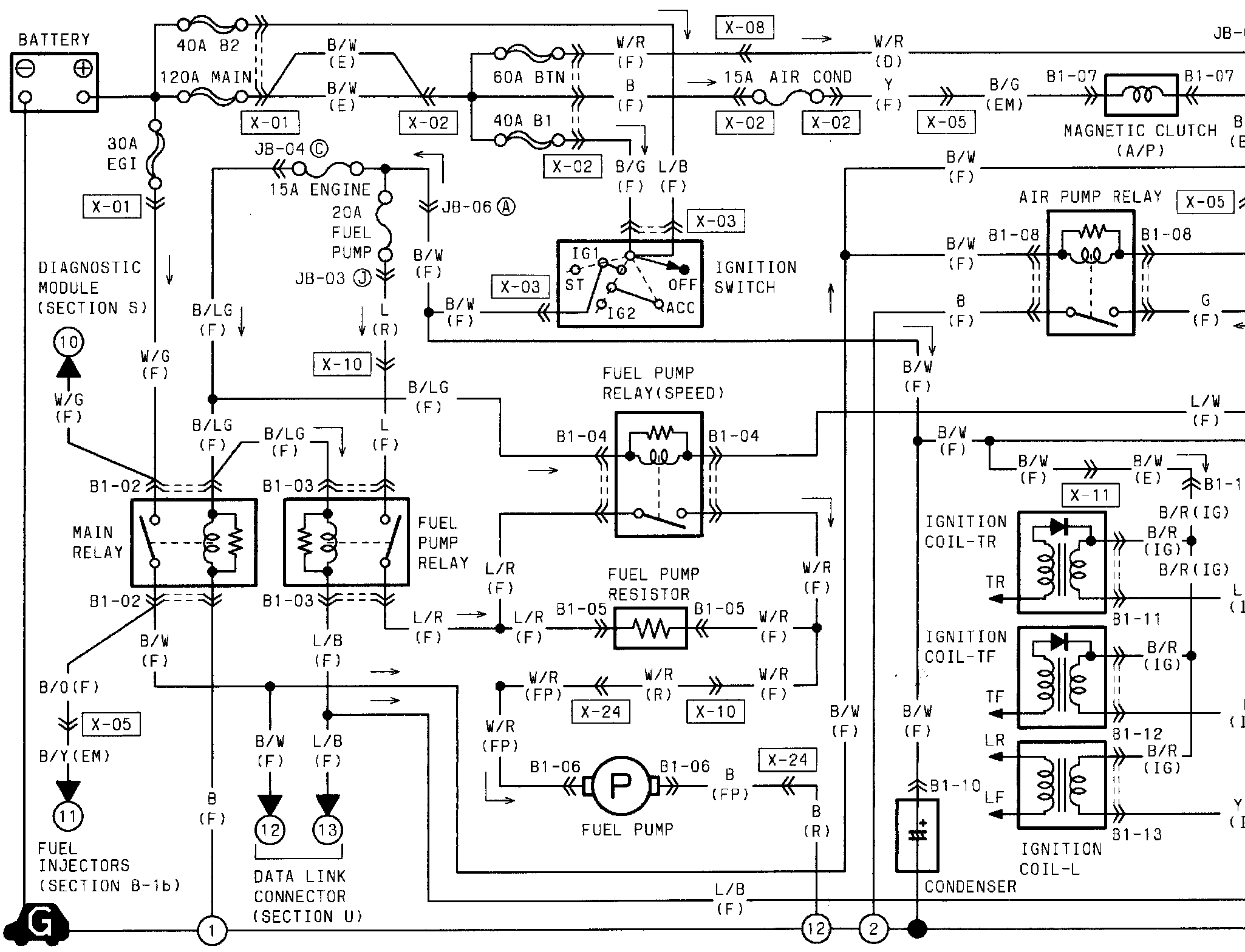

�FEngine Control System B-1D:
