Interior Lighting Module

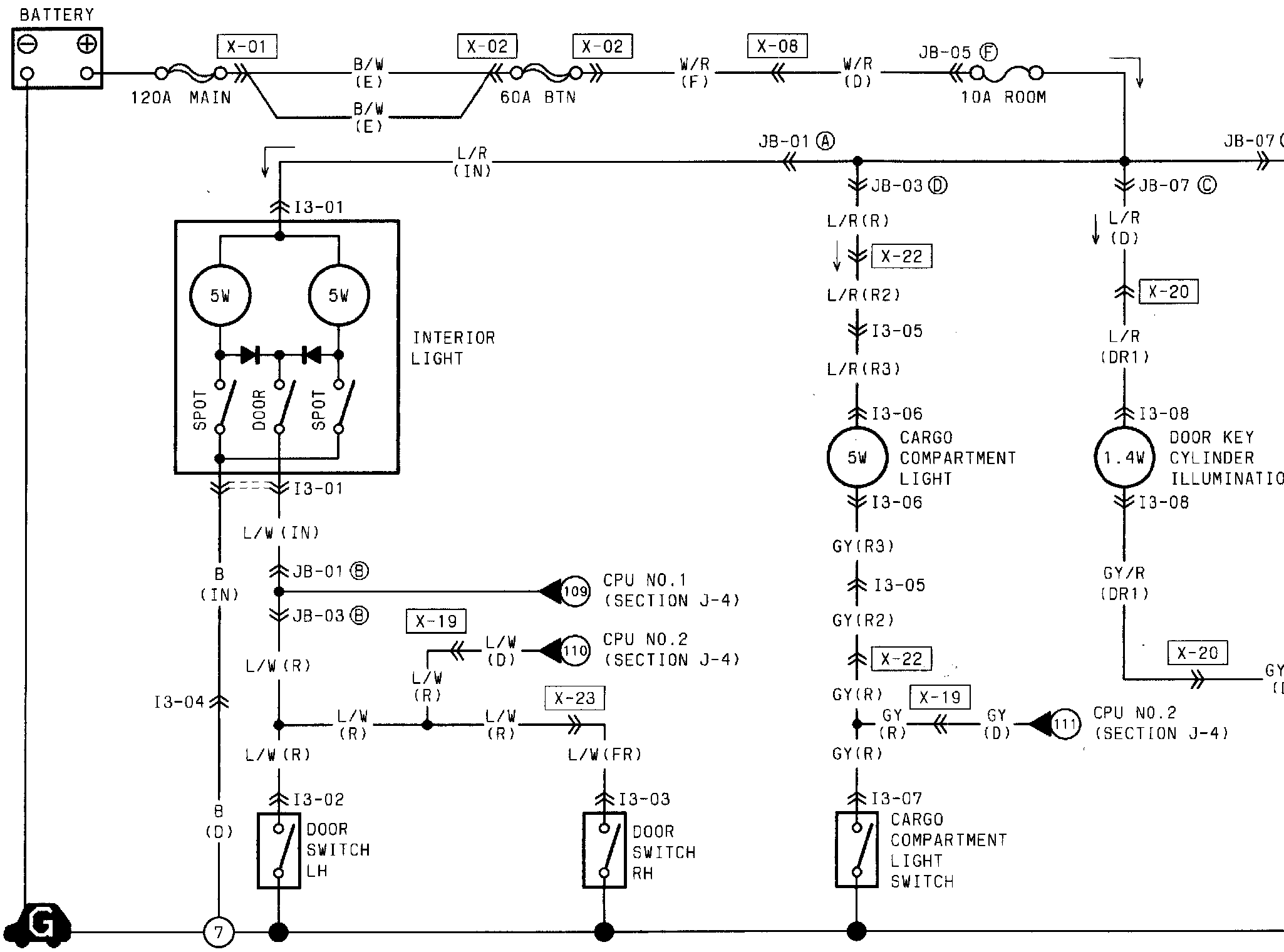

���Interior Light, Cargo Compartment Light, Door Key Cylinder Illumination, Ignition Key Illumination, Glove Compartment Light:
