Repair and Diagnosis
>>
Cruise Control
>>
Specifications
>>
Terminals H-T
Terminals H-T

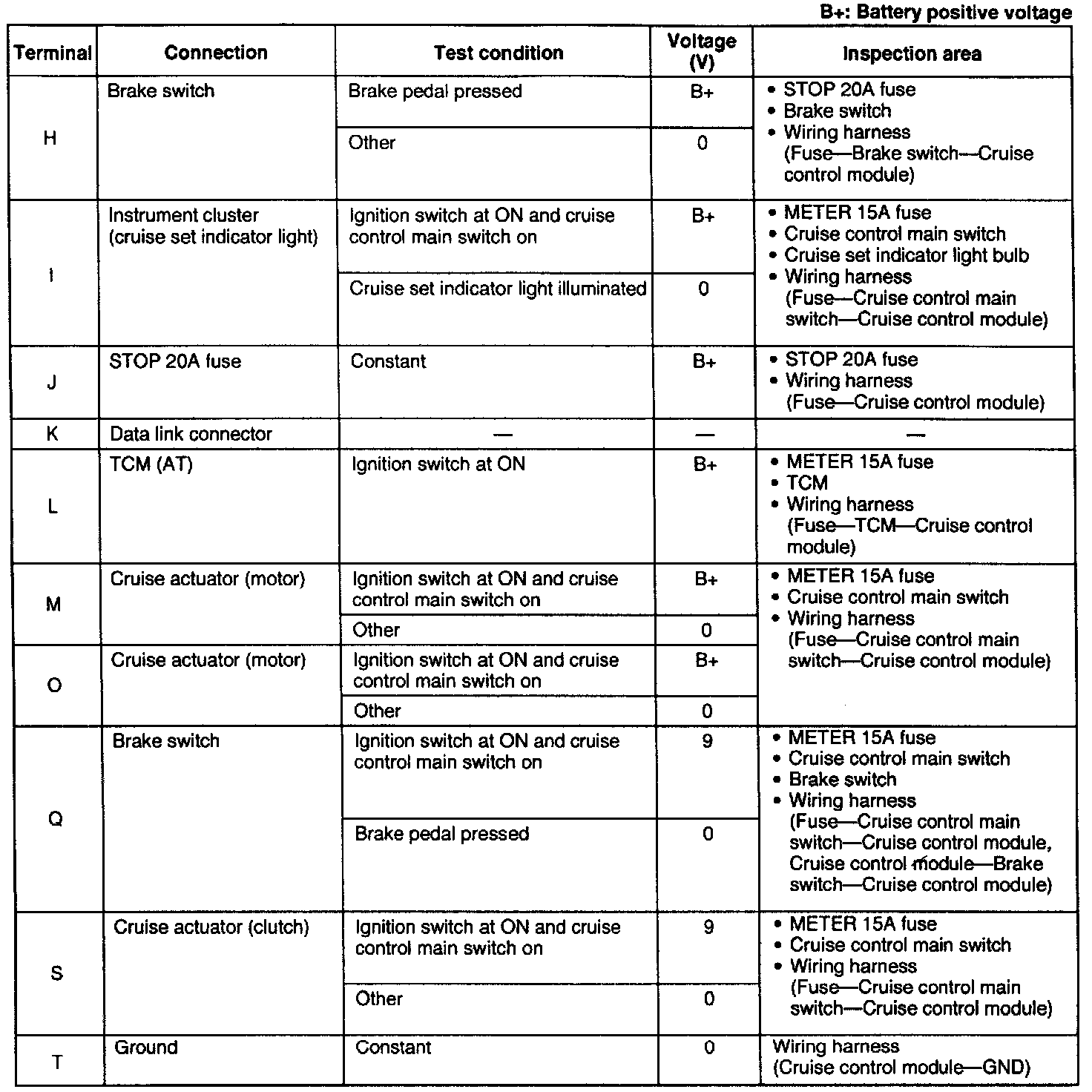

Terminal Voltage Charts:
