Home >> Mazda >> 1995 >> Millenia V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

Radiator

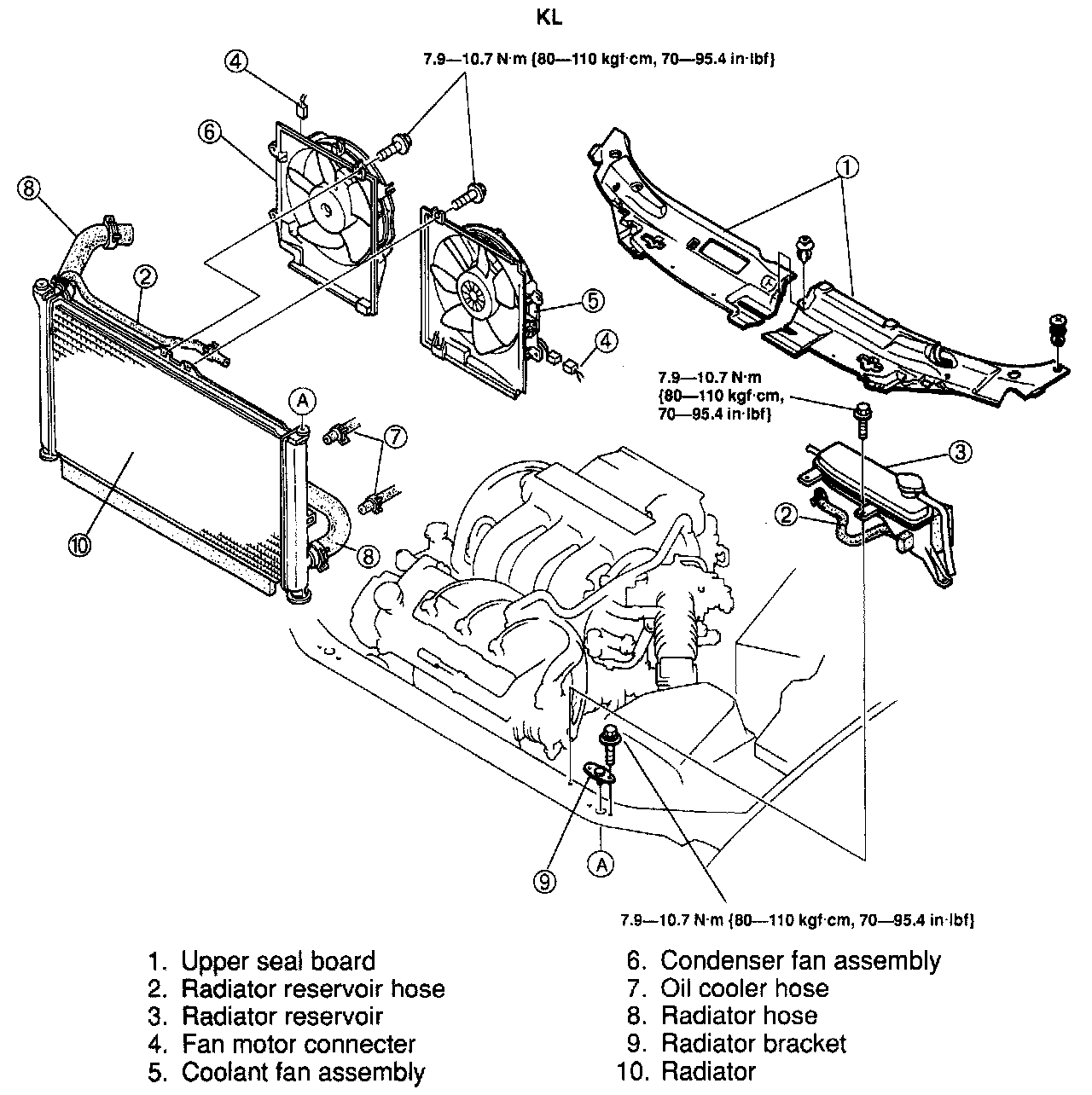

KL 2.5 L

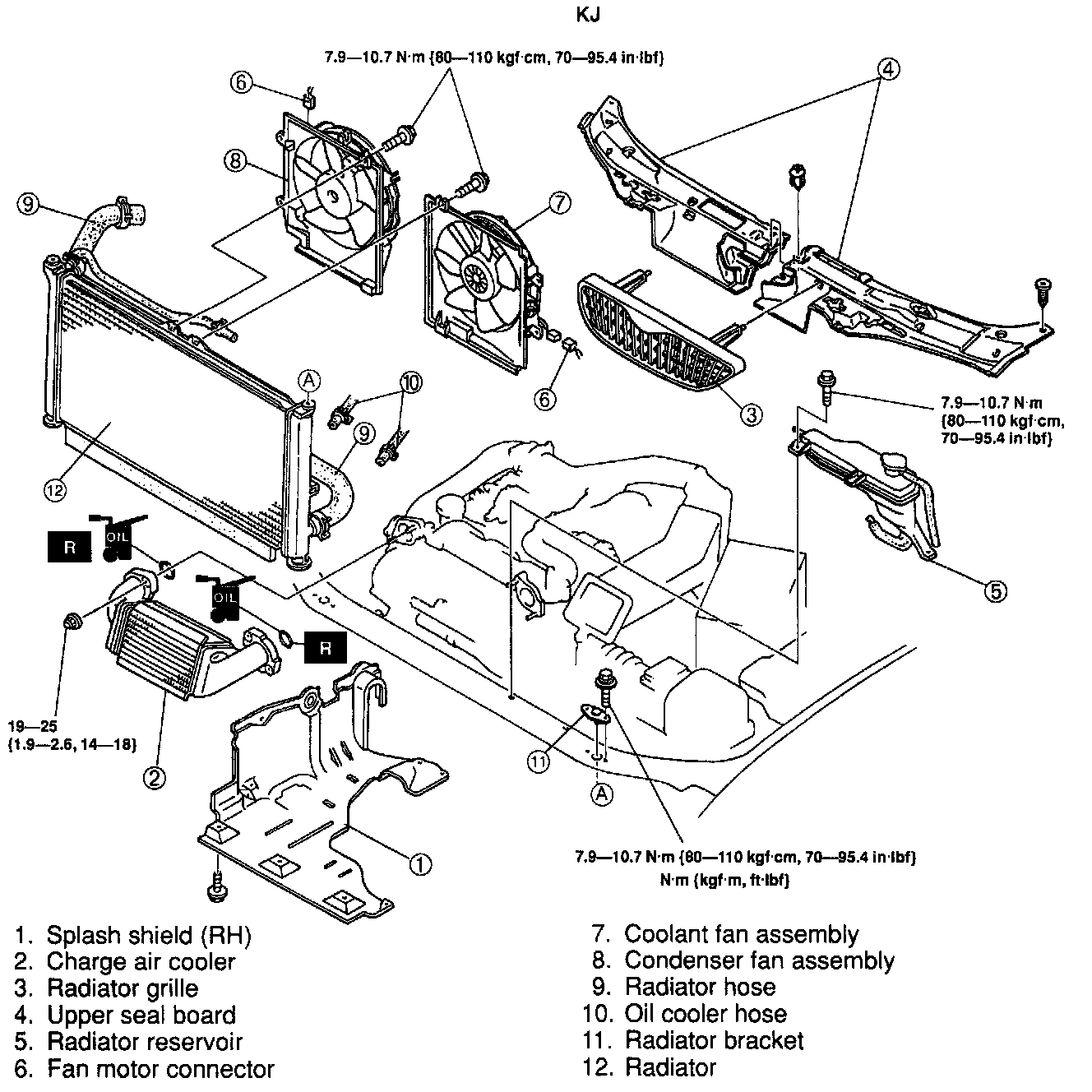

KJ 2.3 L
