Home >> Mazda >> 1995 >> MX-6 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations >> ATX EC-at Control System, Ignition Sys, Engine Control Module

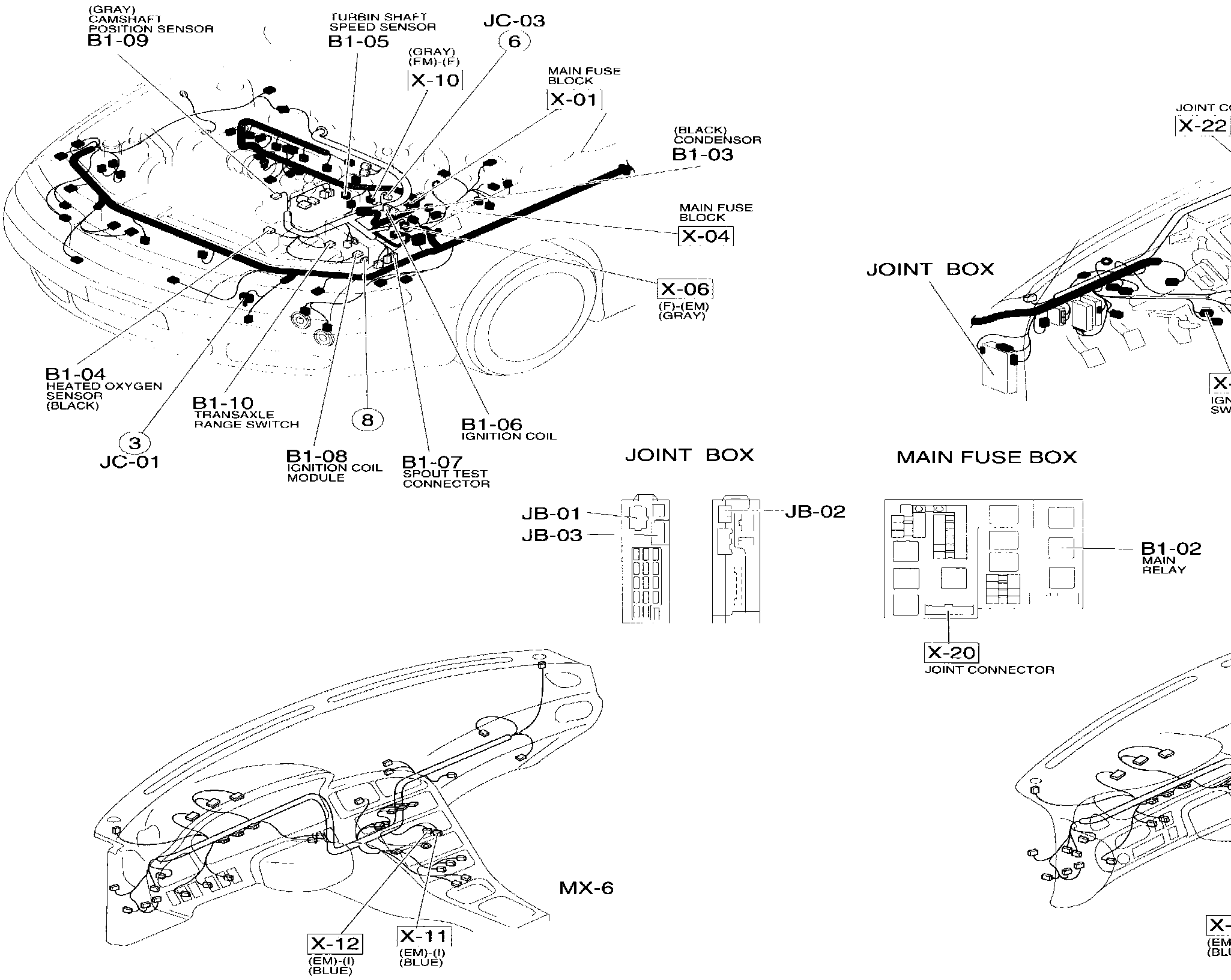

ATX EC-at Control System, Ignition Sys, Engine Control Module

�Connector Locations:
