Home >> Mazda >> 1995 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Terminals 1A-2C

Terminals 1A-2C

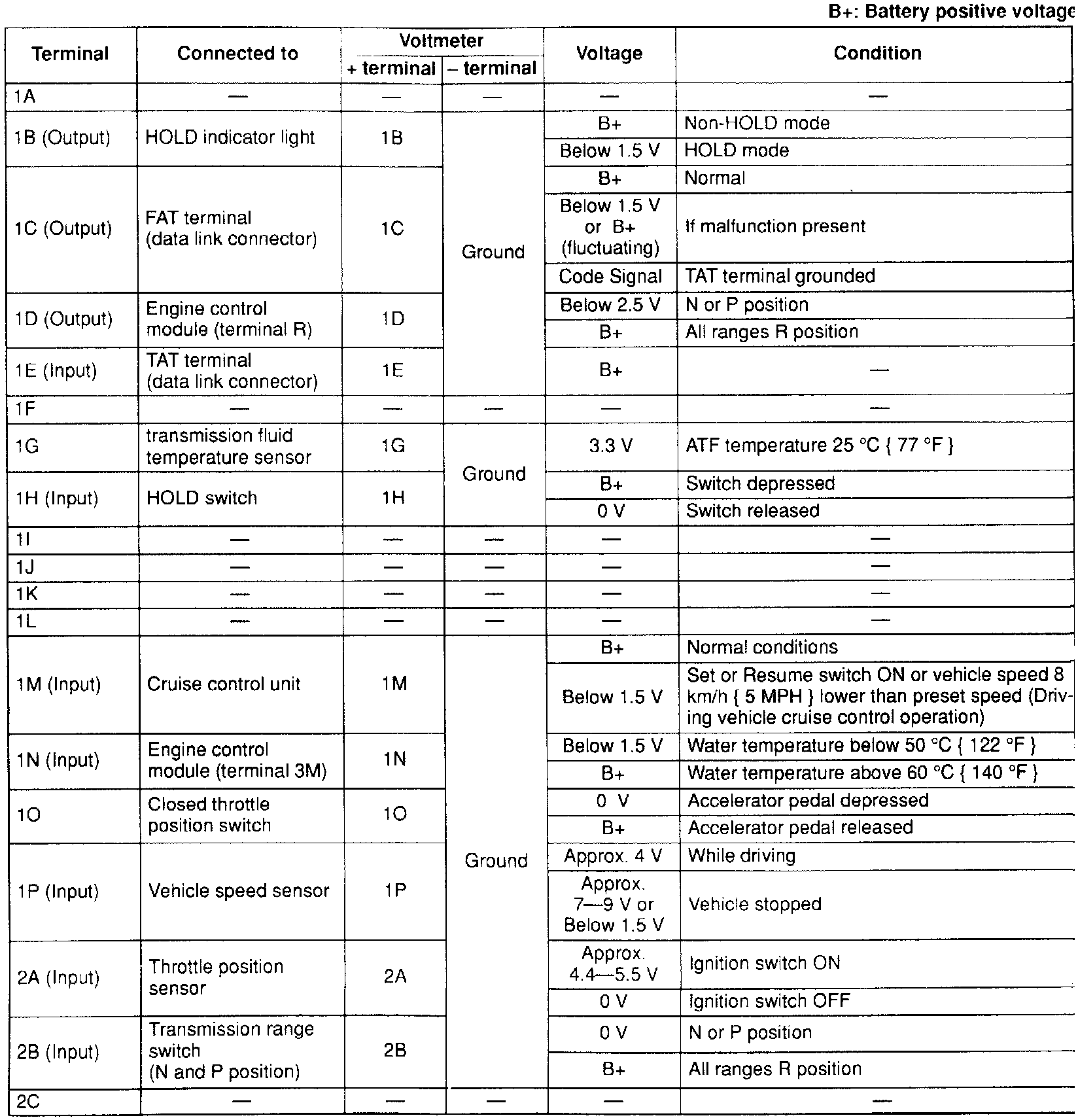

f�QTerminal Voltage Chart:
