Home >> Mazda >> 1995 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

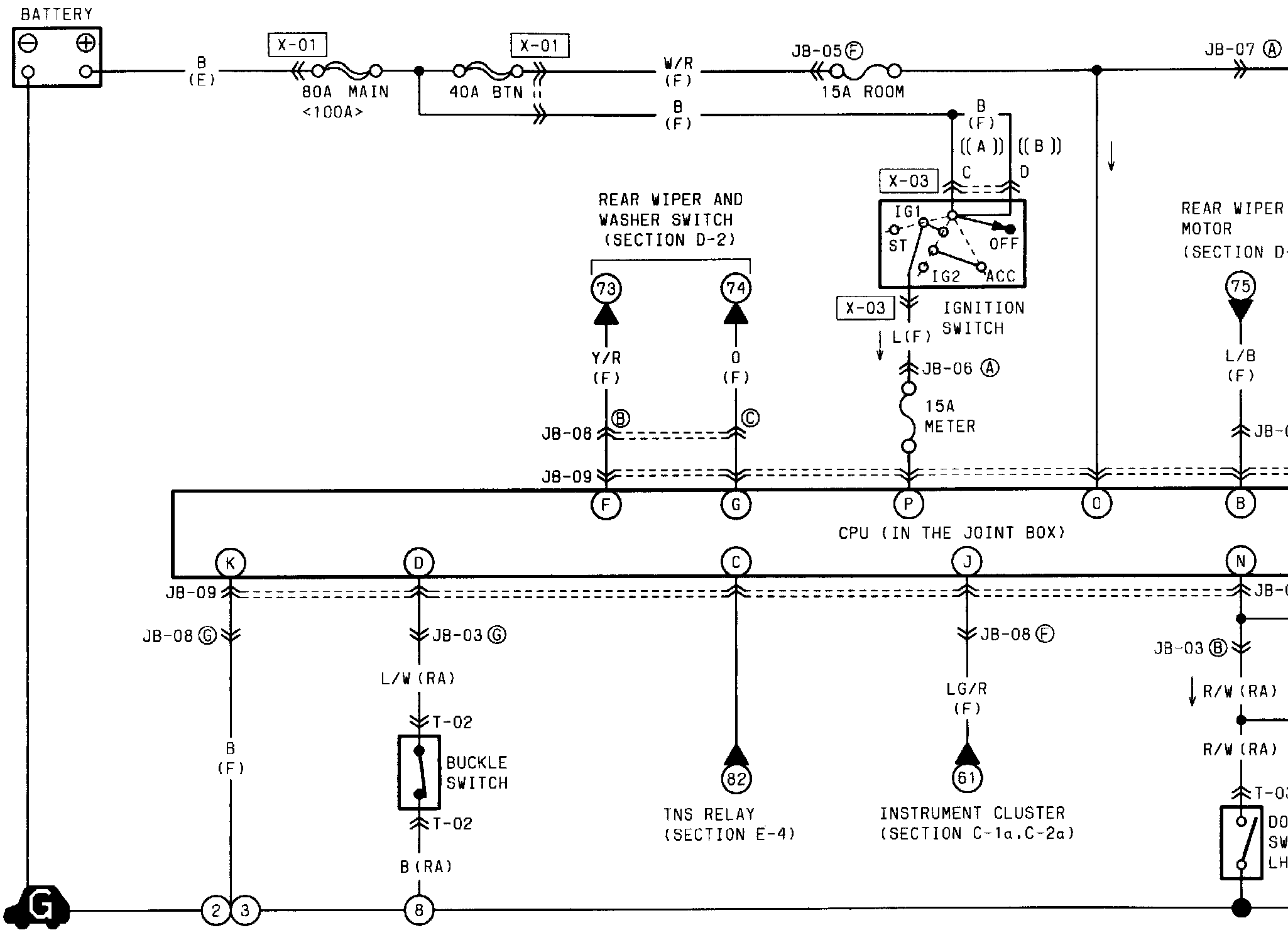

Central Control Module

�D�Ignition Key Illumination Central, Processing Unit (CPU):
