626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

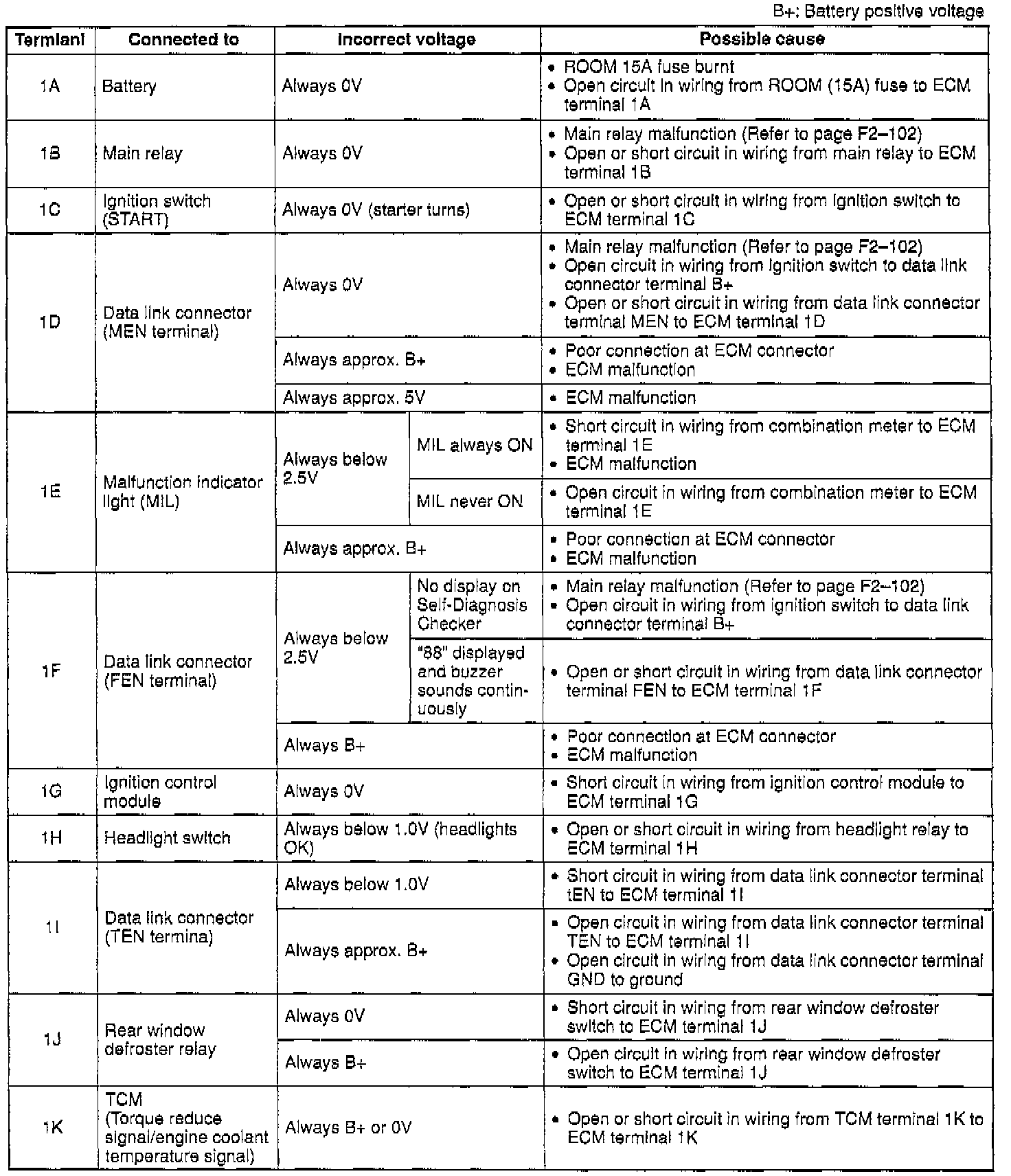

1A THROUGH 1K

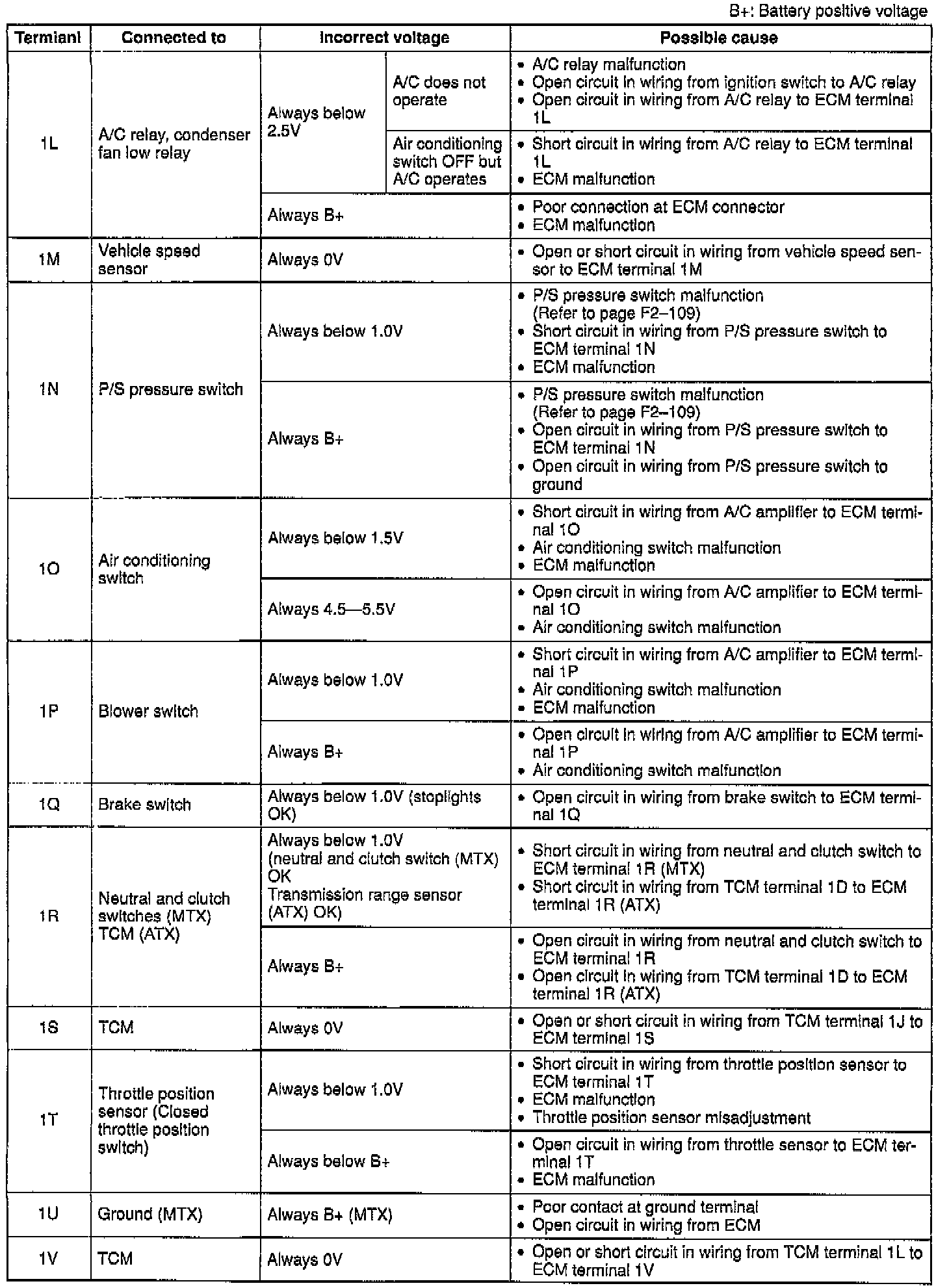

1L THROUGH 1V

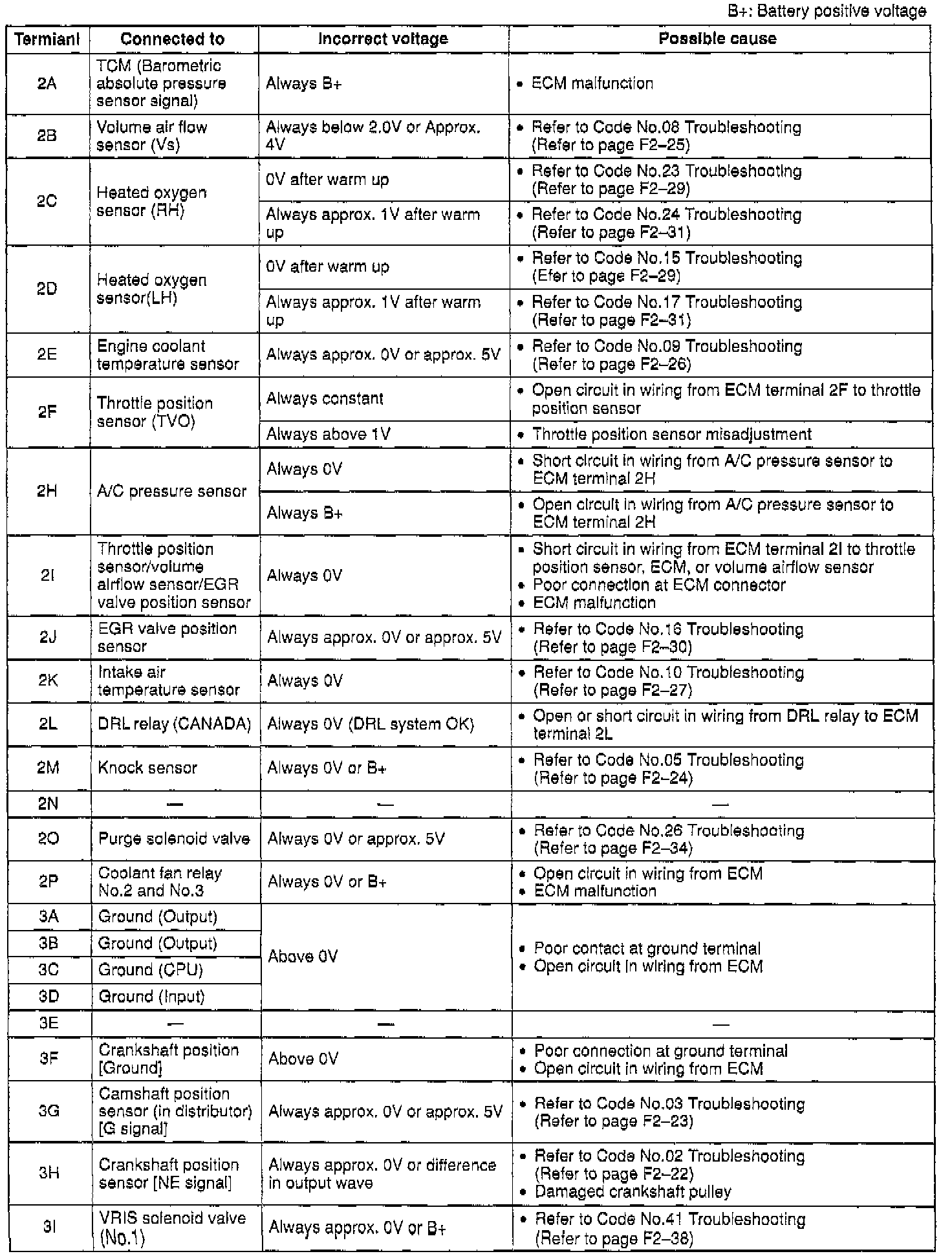

2A THROUGH 3I

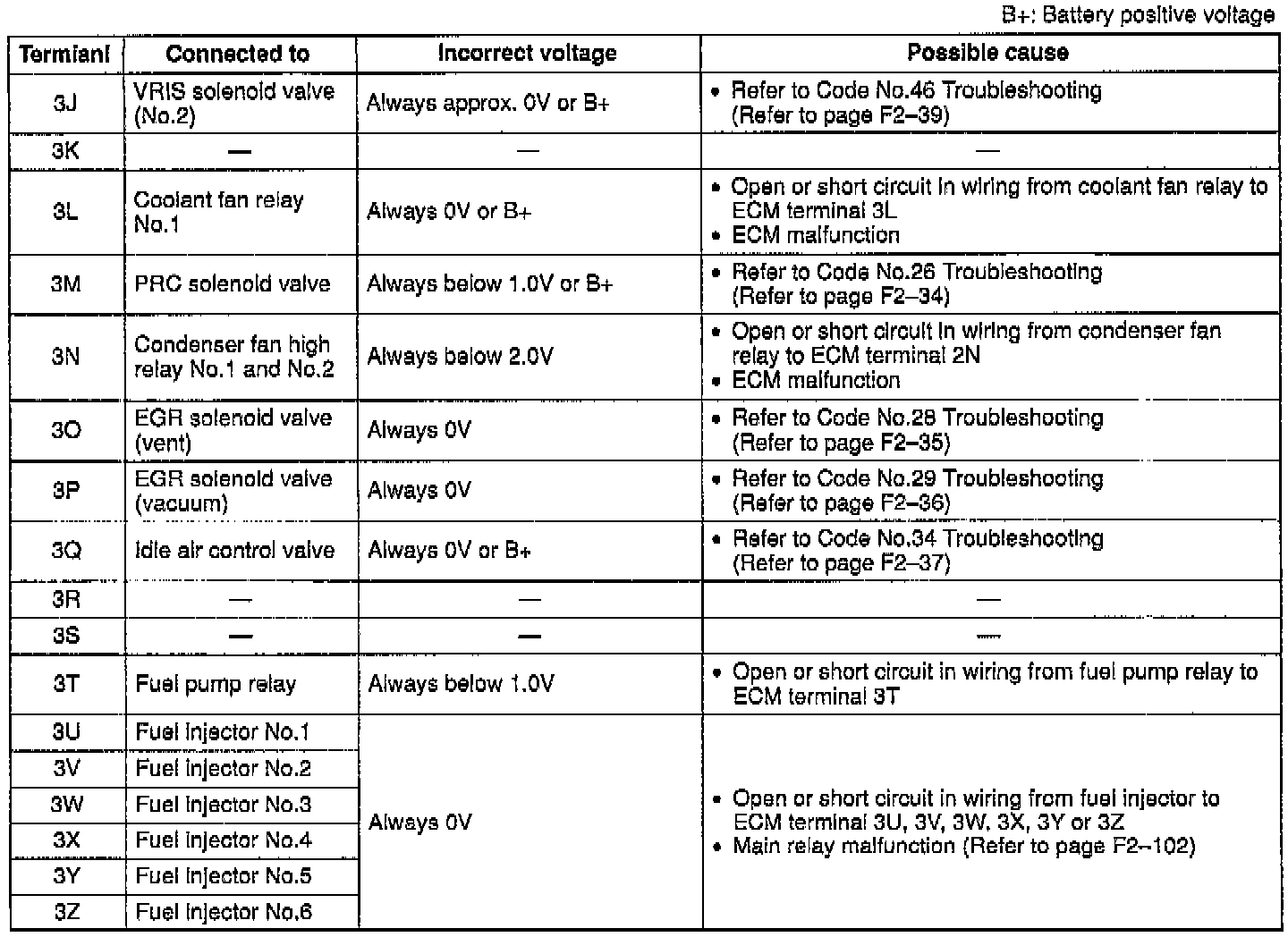

3J THROUGH 3Z
