Home >> Mazda >> 1995 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

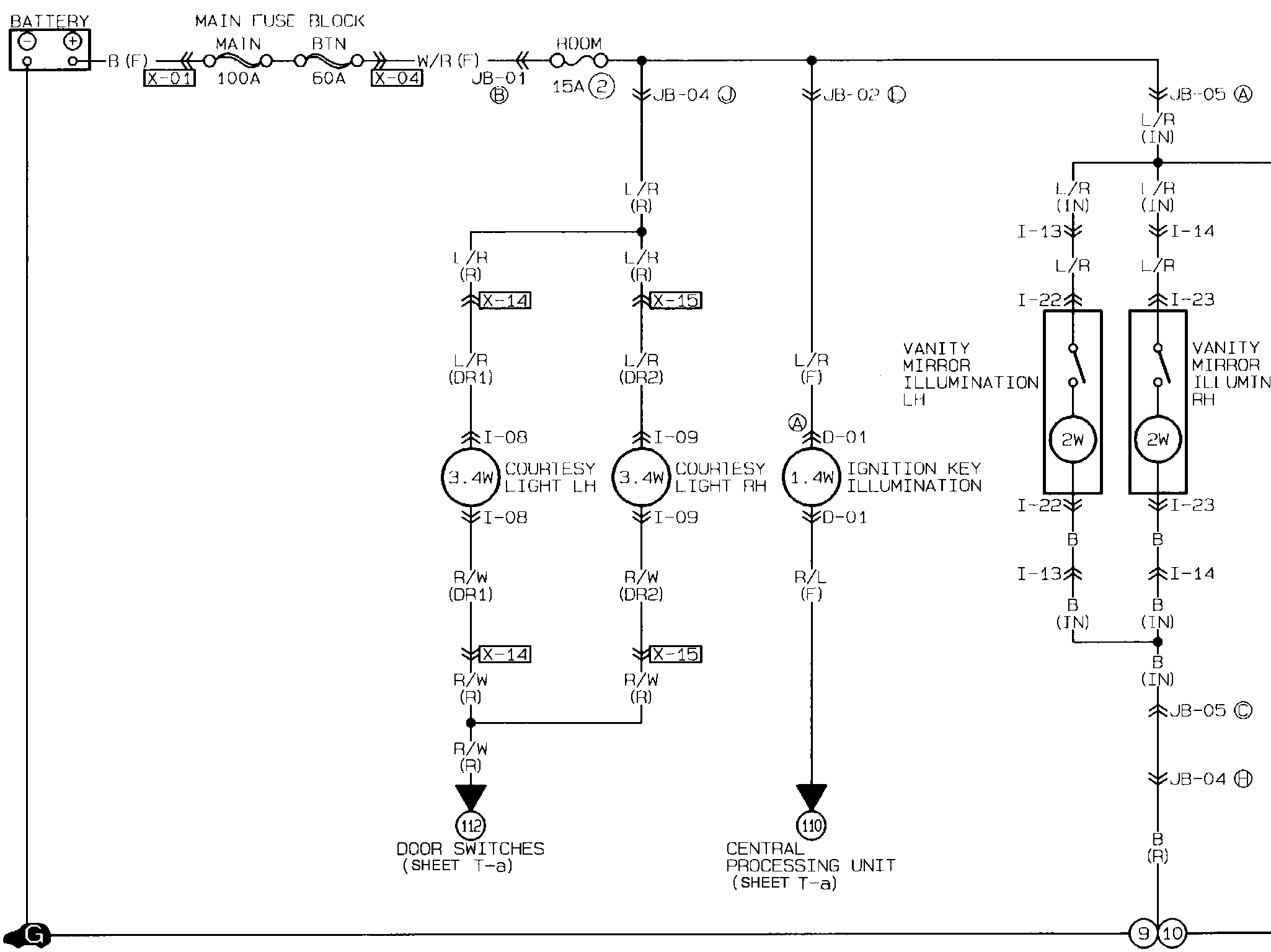

Interior Lighting Module

���Courtesy Lights, Ignition Key Illumination, Spot Lights, Interior Lights, Vanity Mirror Lights:
