Home >> Mazda >> 1995 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> T-A

T-A

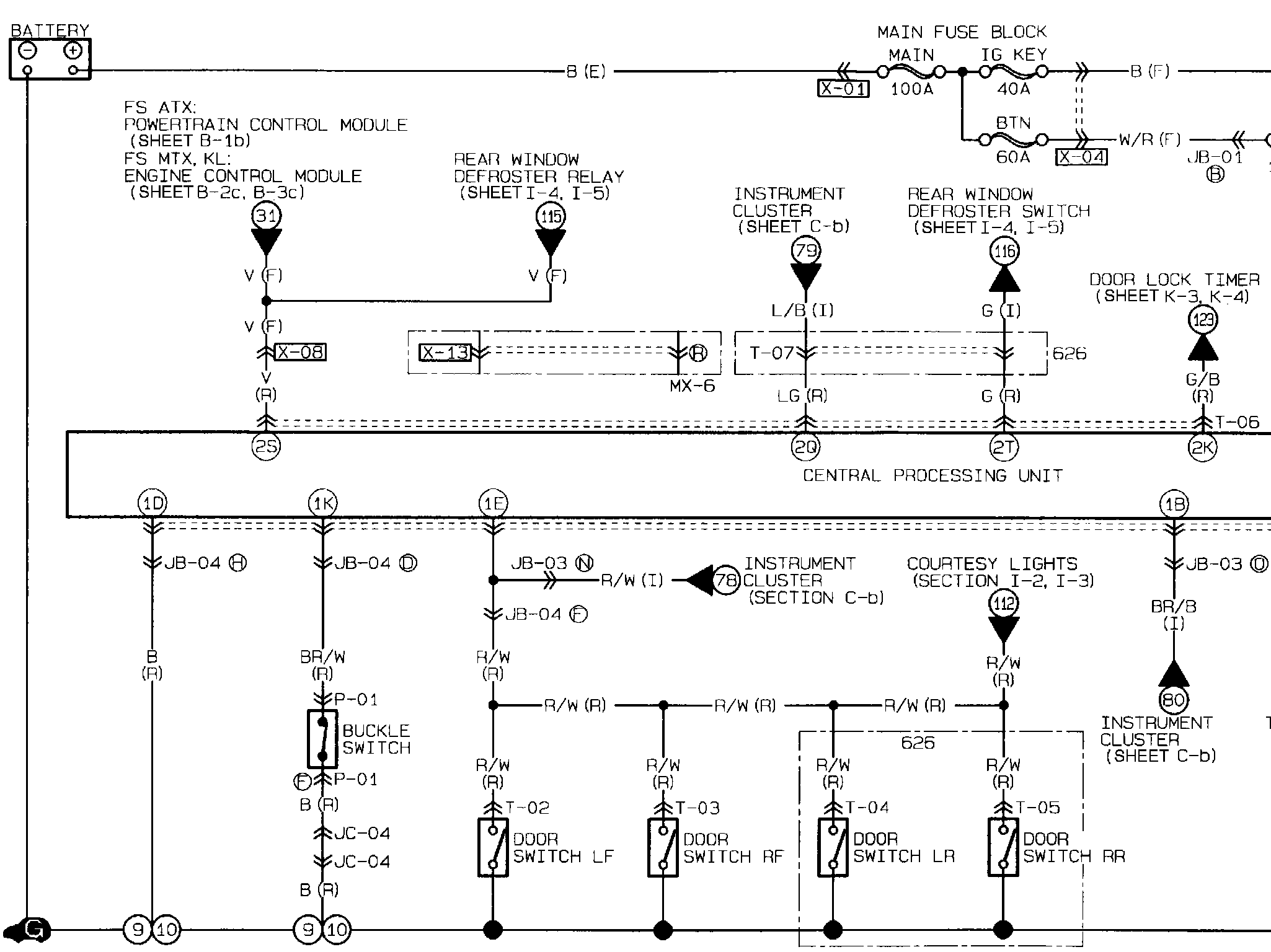

+�Central Processing System, Theft-Deterrent System:
