Flowchart 1

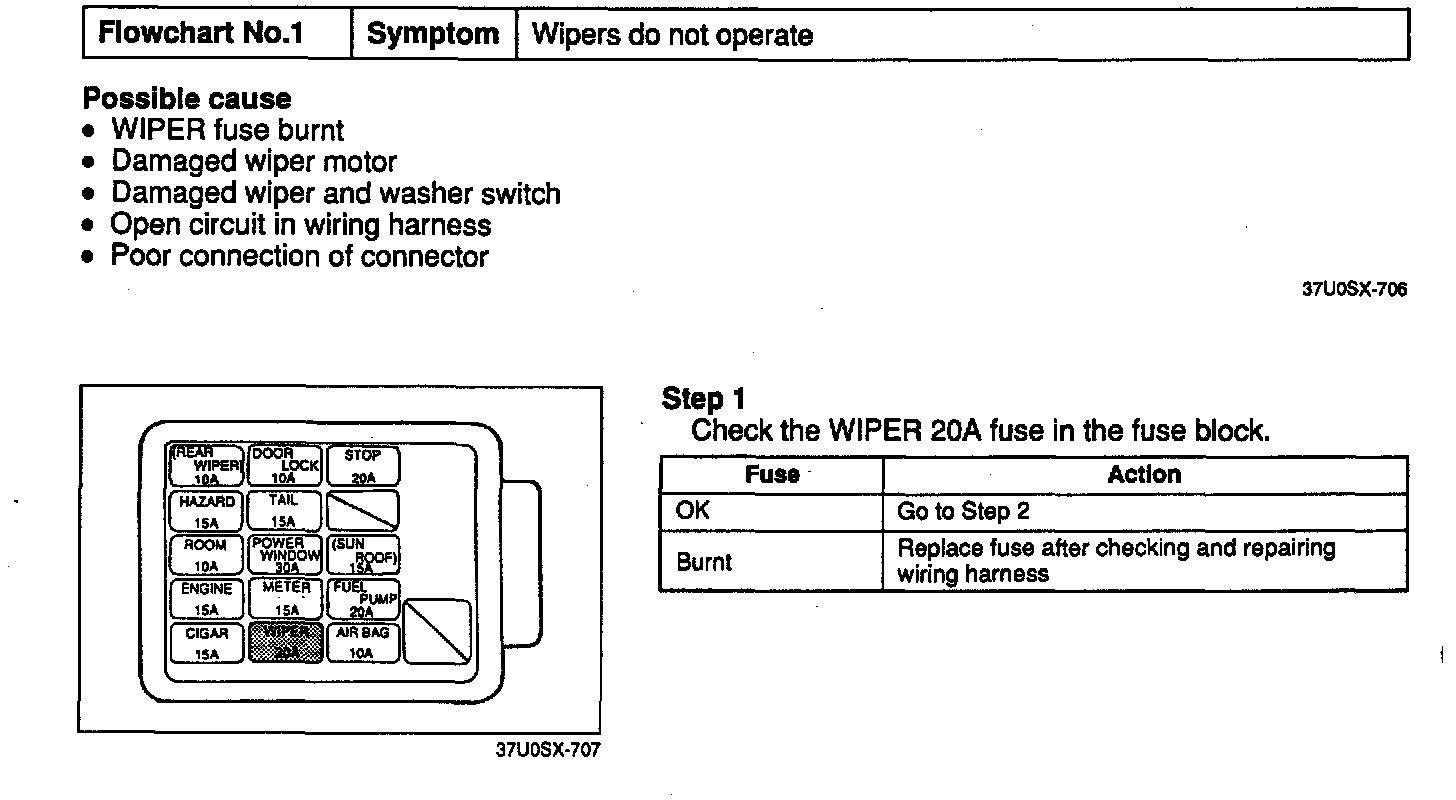

Flowchart 1 - Wipers Do Not Operate (Part 1):

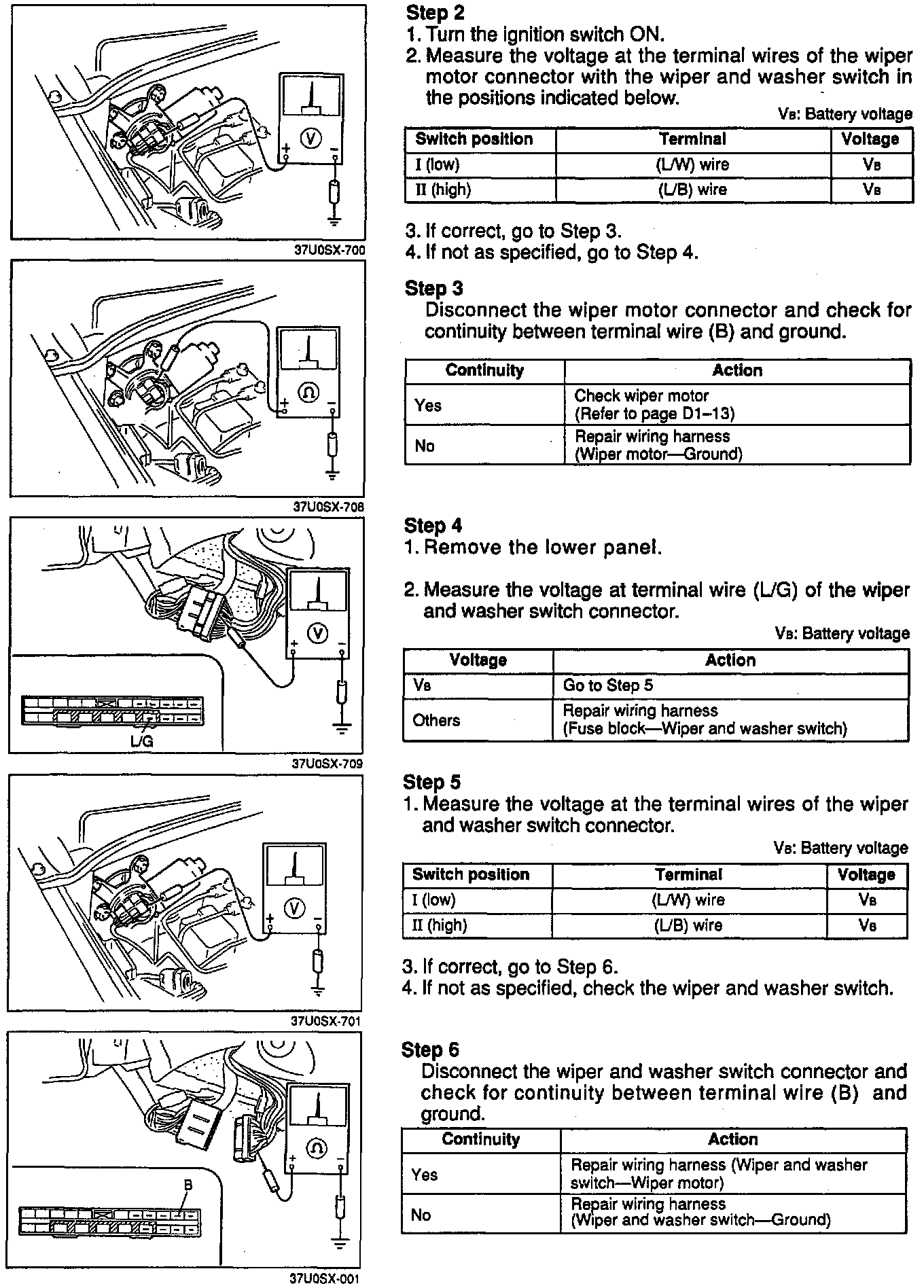

Flowchart 1 - Wipers Do Not Operate (Part 2):
