Home >> Mazda >> 1994 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Terminals 2B-2I

Terminals 2B-2I

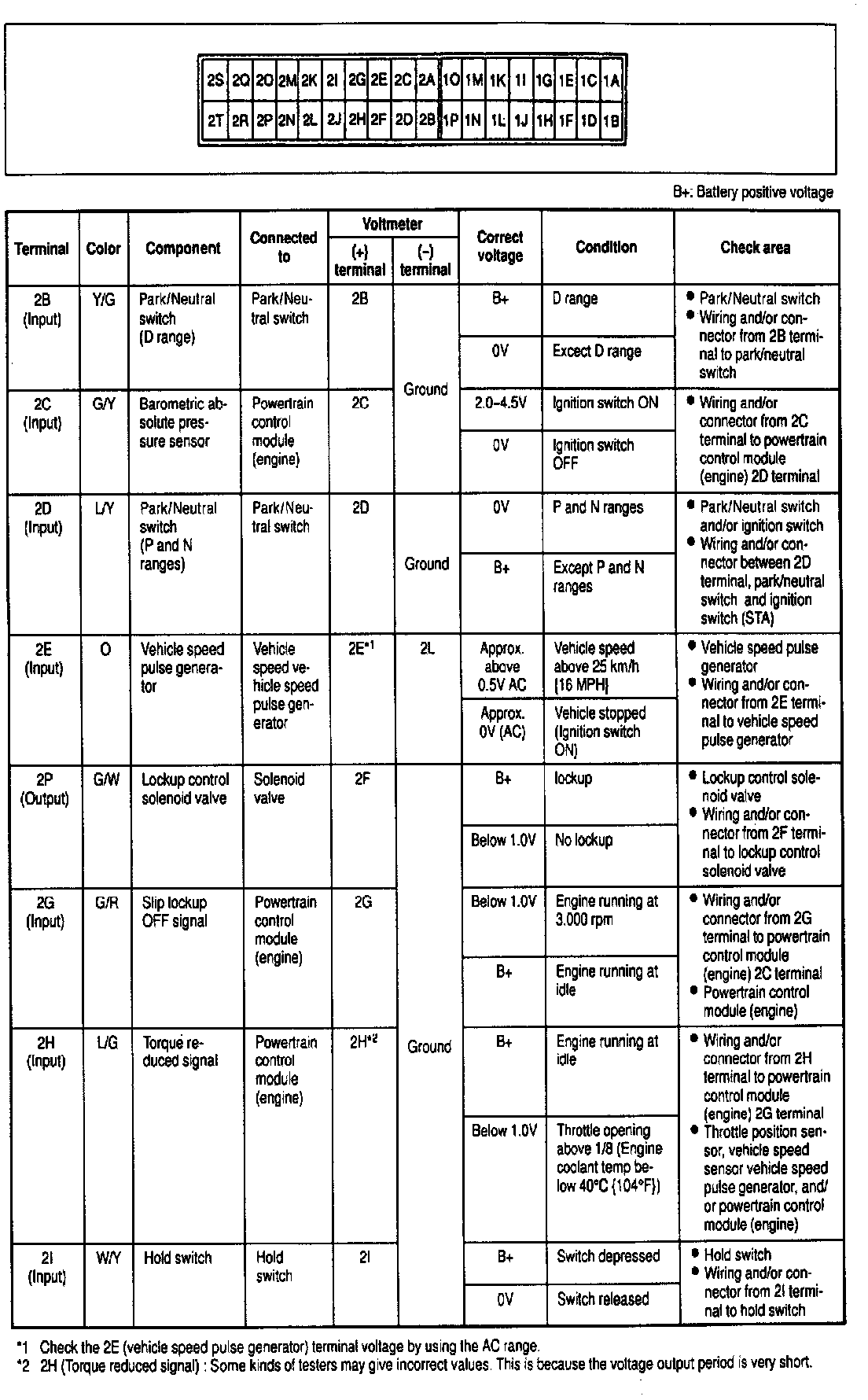

Terminal Voltage Charts:
