EGR Valve: Service and Repair
Removal/Installation1. Remove the intake air system component parts.

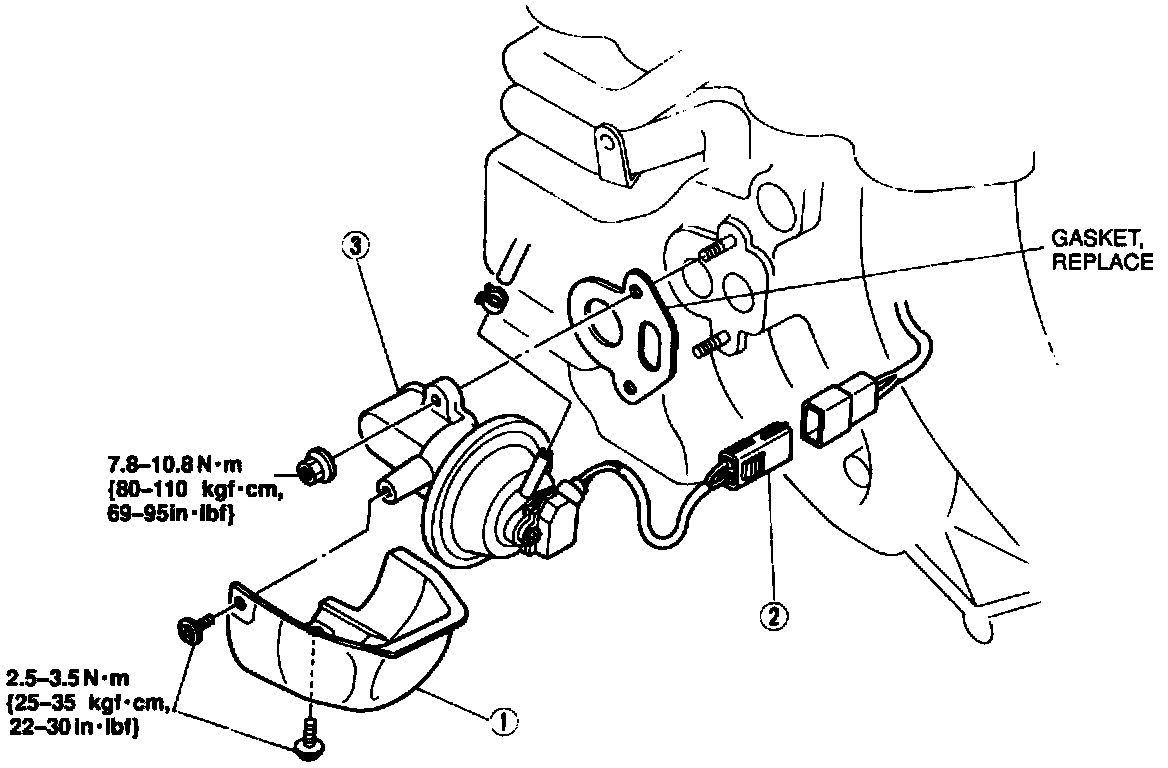

2. Remove in the order shown in the figure below.
3. Install in the reverse order of removal.
1. Insulator
2. Connector
3. EGR valve
1. Remove the intake air system component parts.
2. Remove in the order shown in the figure below.
3. Install in the reverse order of removal.
1. Insulator
2. Connector
3. EGR valve
