Connector Locations

(B2-) And (X-) Designate Connectors Shown In Wiring Diagrams:

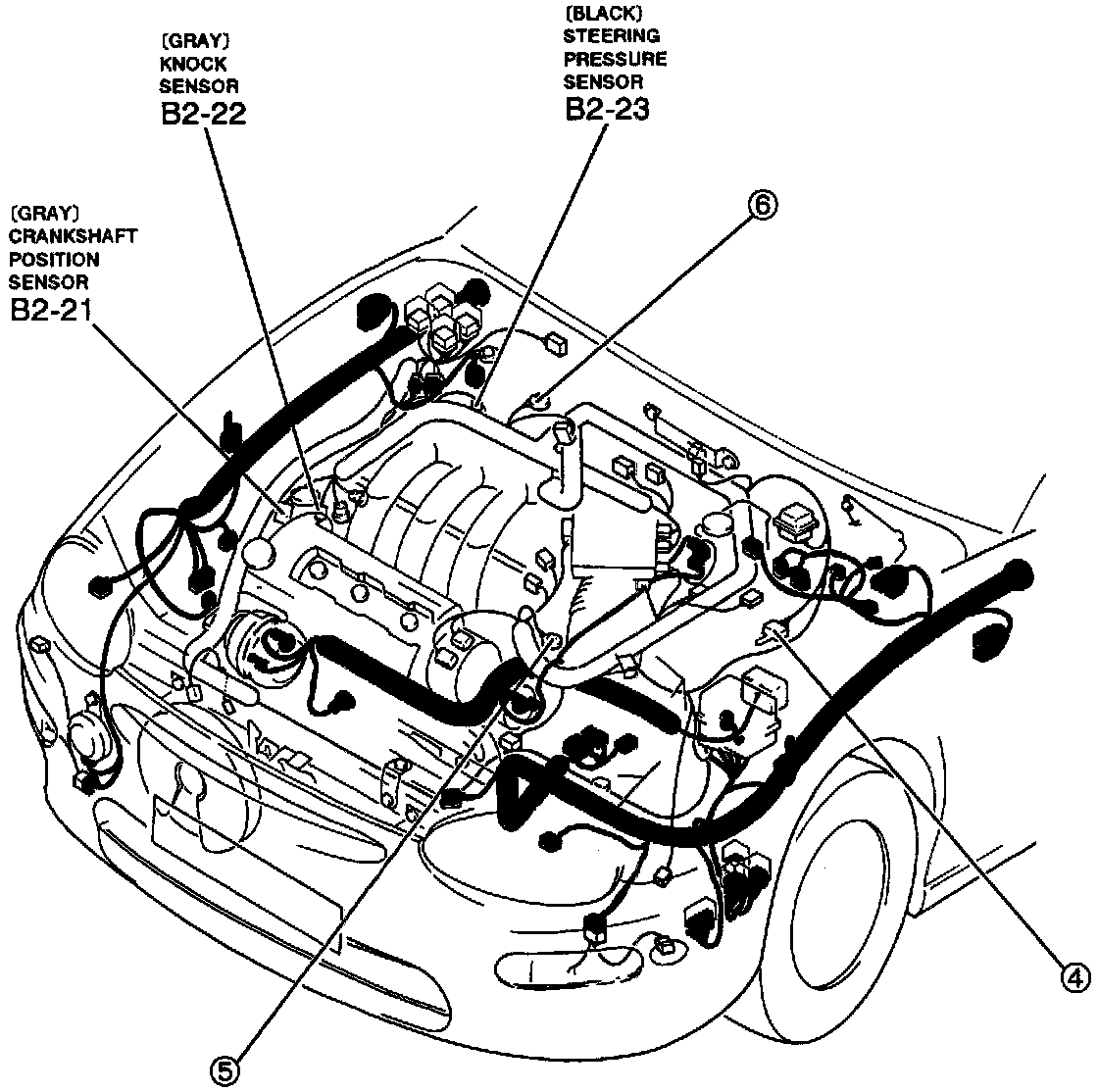

(B2-) Designates Connectors Shown In Wiring Diagrams:

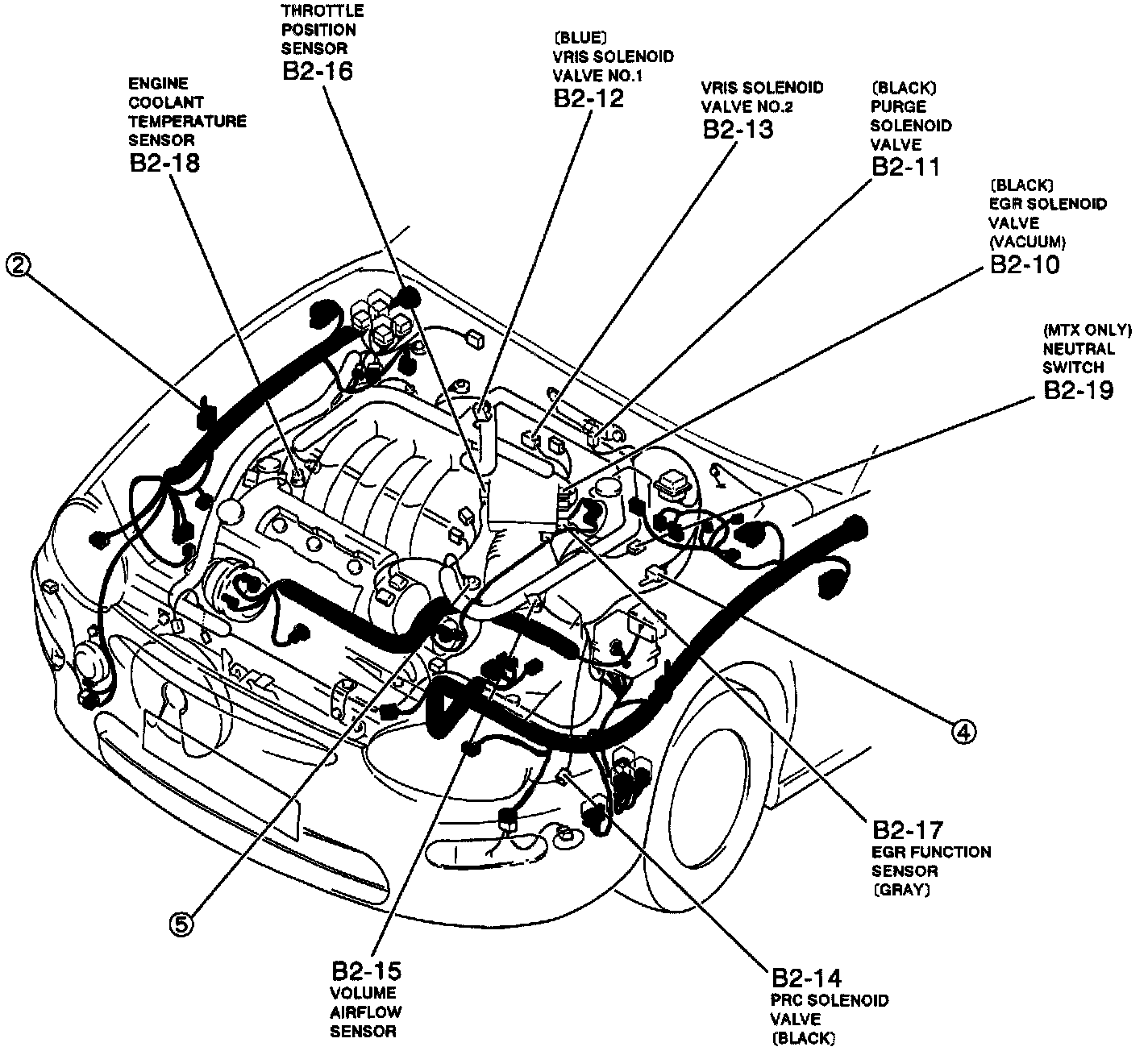

(B2-) Designates Connectors Shown In Wiring Diagrams:

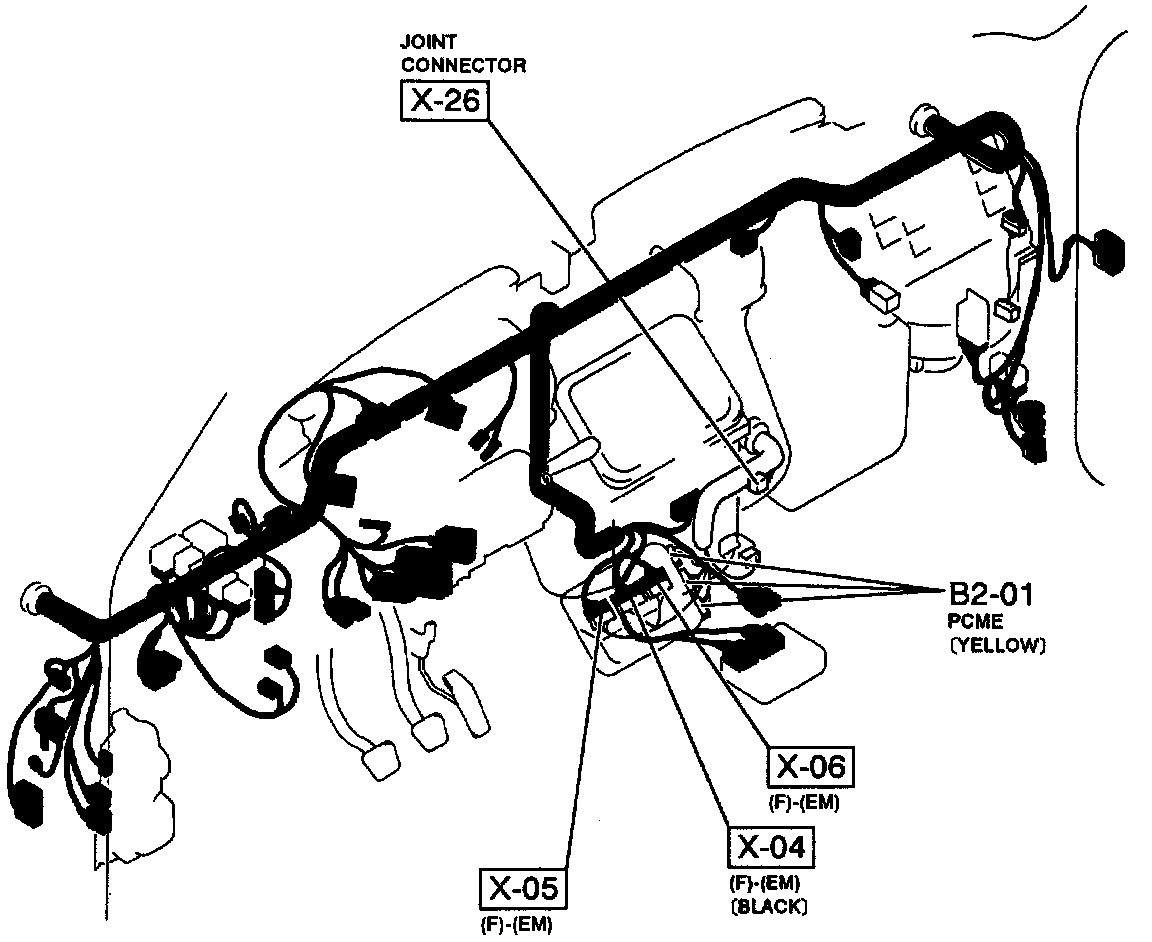

(X-) And (B2-) Designate Connectors Shown In Wiring Diagrams:
