Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> System Specifications >> Terminals 2N-2Z

Terminals 2N-2Z

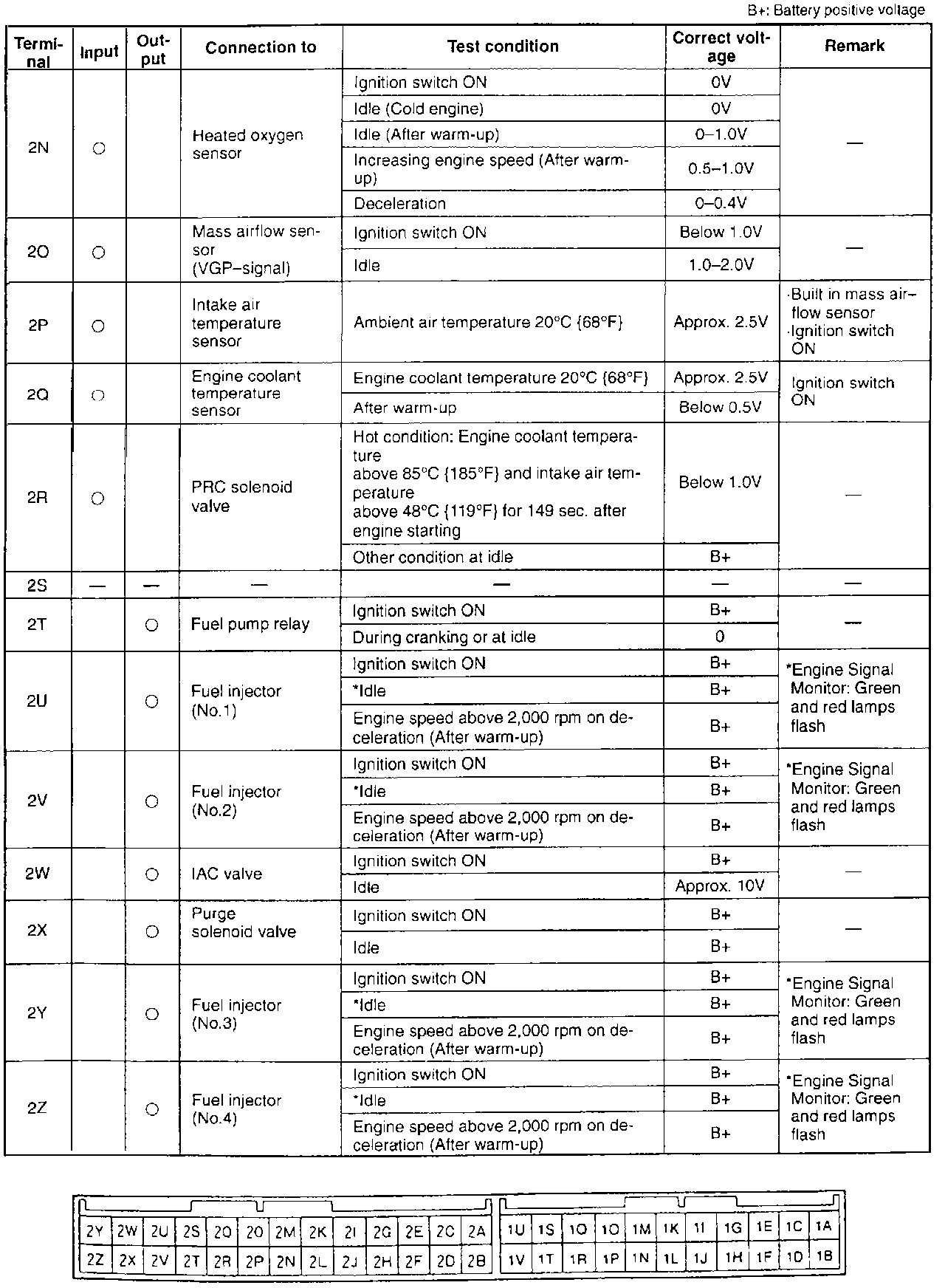

Terminal Voltage (Reference Chart) (Part 4):
