Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> System Specifications >> Terminals 1V-2M

Terminals 1V-2M

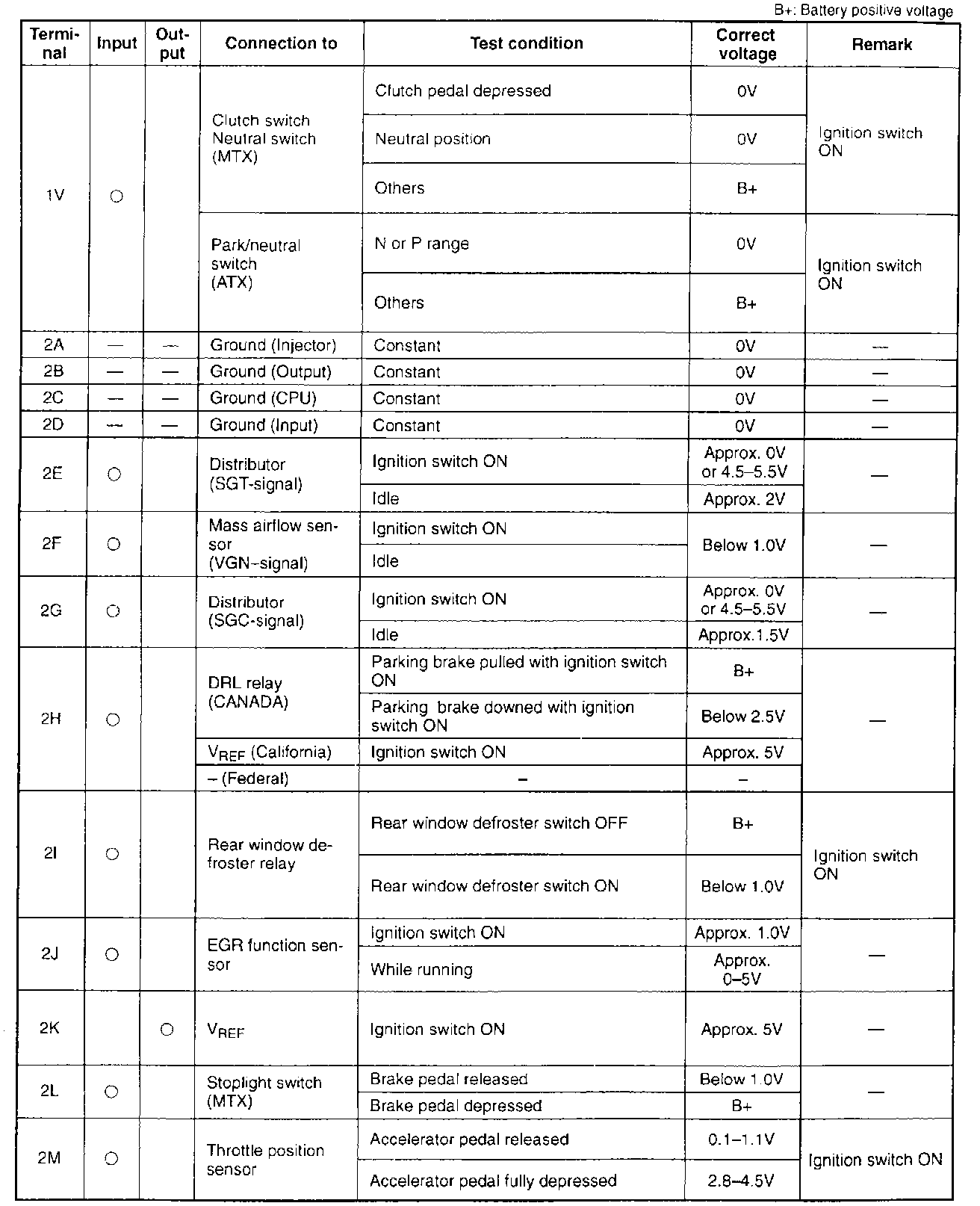

Terminal Voltage (Reference Chart) (Part 3):
