Home
>>
Mazda
>>
1994
>>
MX-3 L4-1598cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>

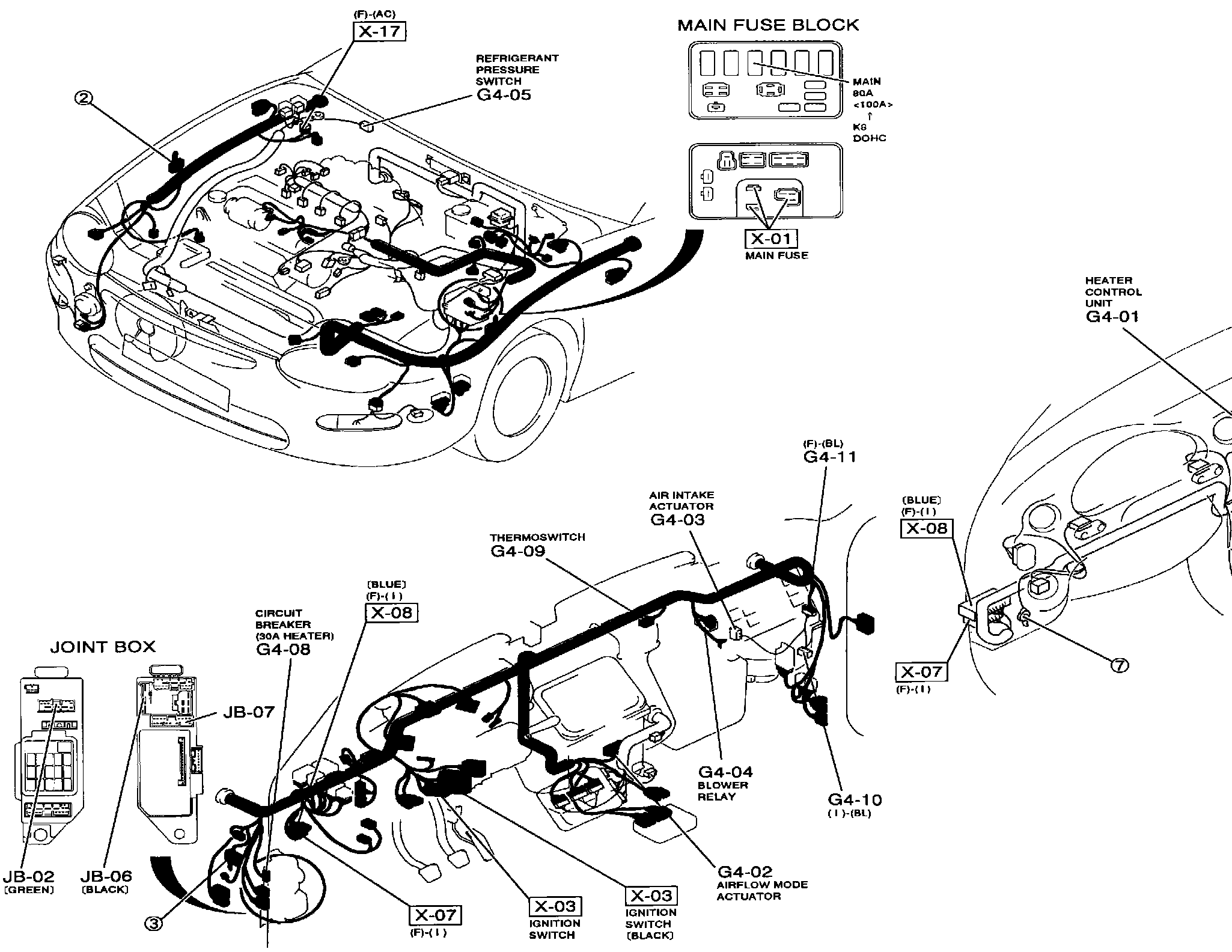

Locations
>>
With Logical Mode Control
With Logical Mode Control
+(jeConnector Locations:
