Home >> Mazda >> 1994 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> Electrical Specifications >> Terminal 1U Through 2G

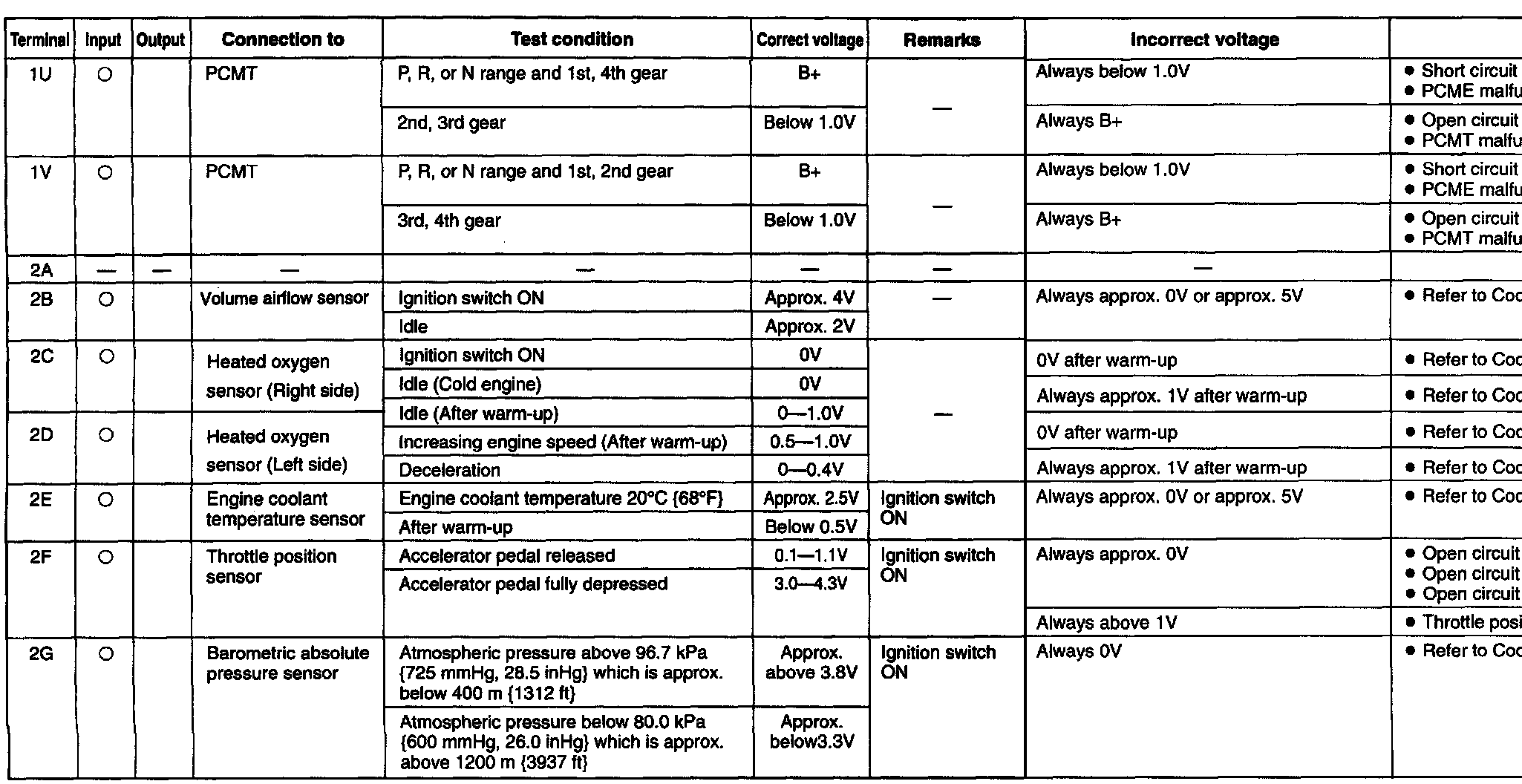

Terminal 1U Through 2G
