EGR Valve Position Sensor: Testing and Inspection
Code 16:

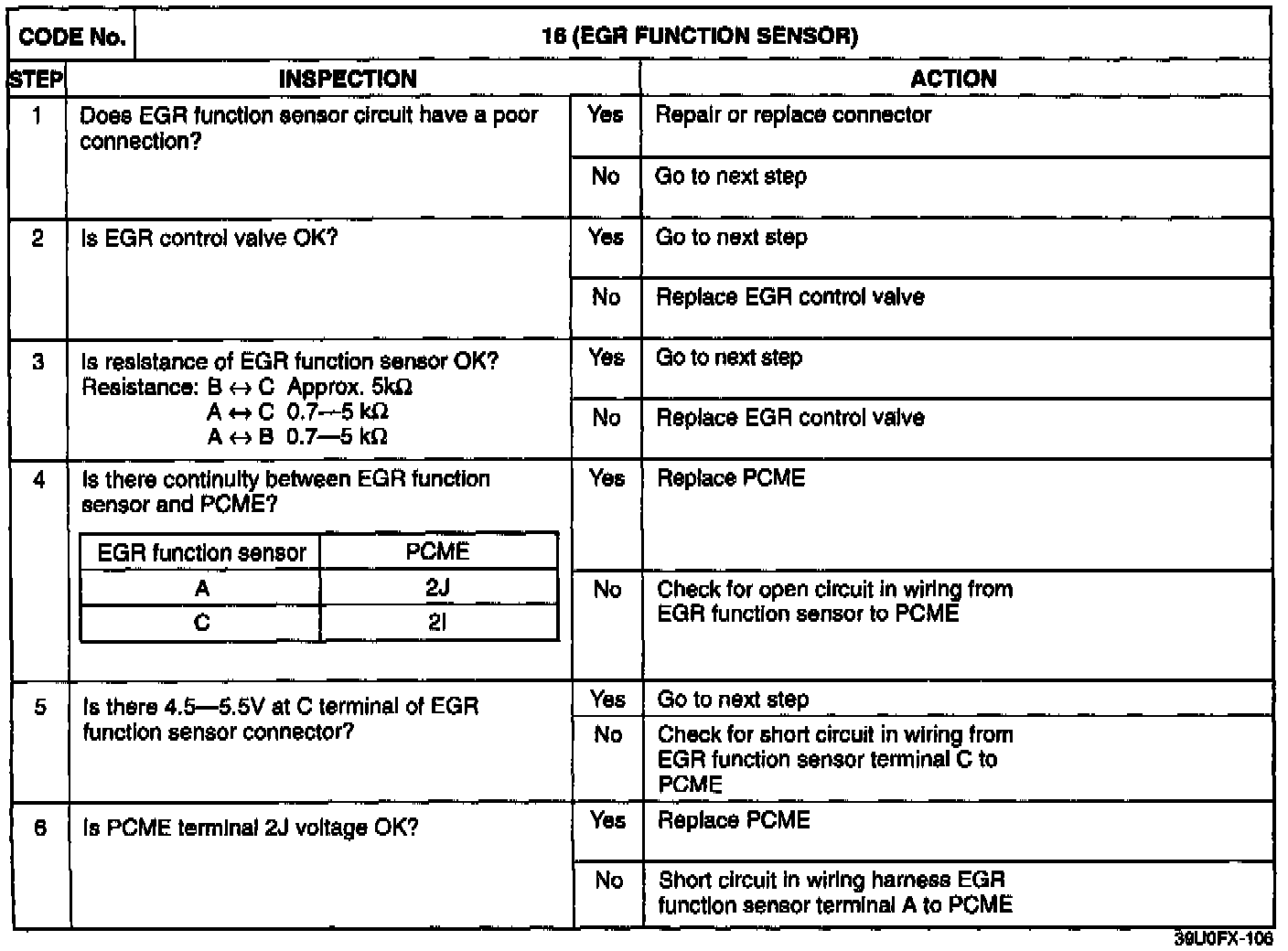

Diagnostic Chart
Circuit Diagram:
Circuit Diagram
