Home >> Mazda >> 1994 >> 626 V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> Control Module, A/T

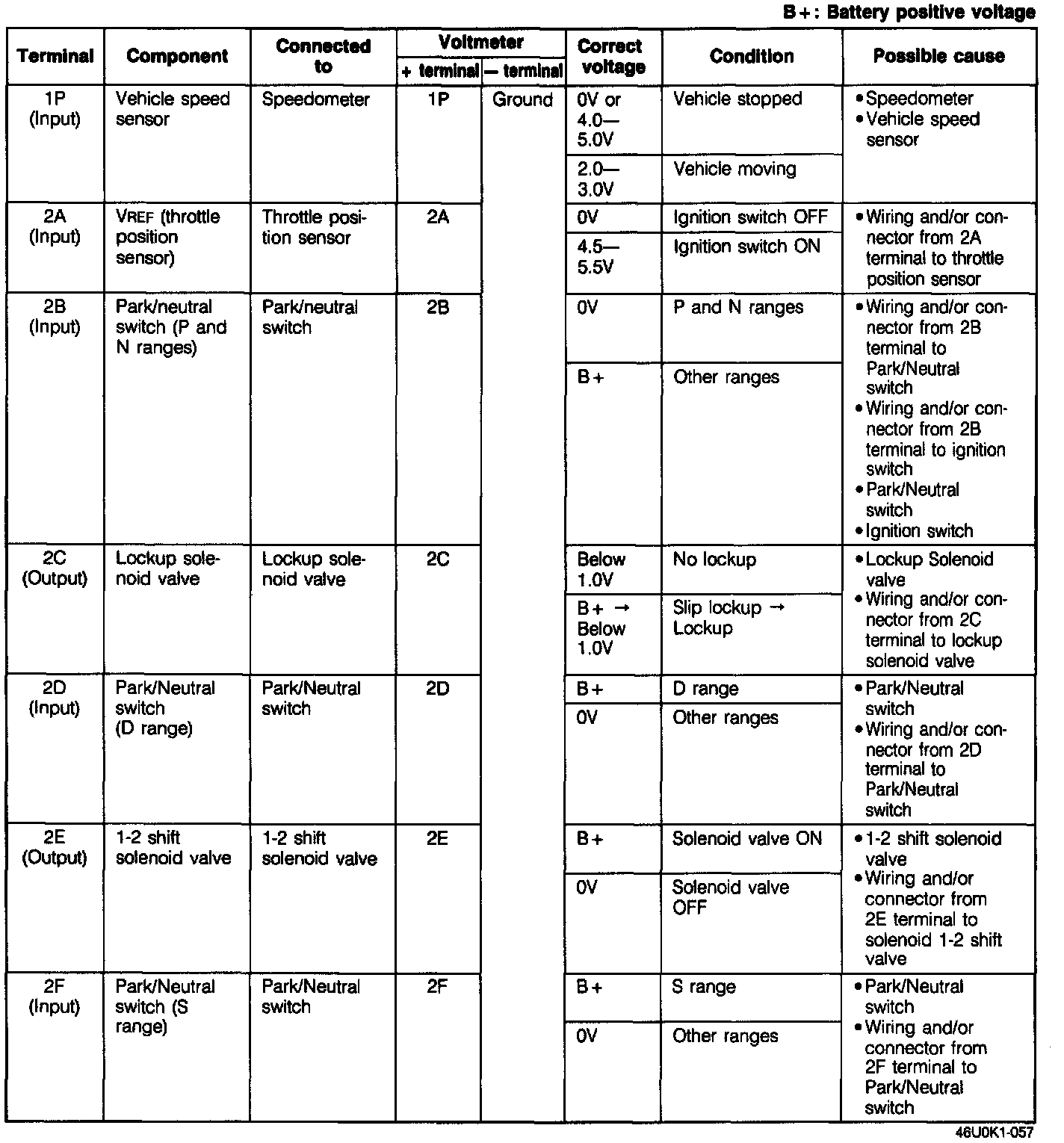

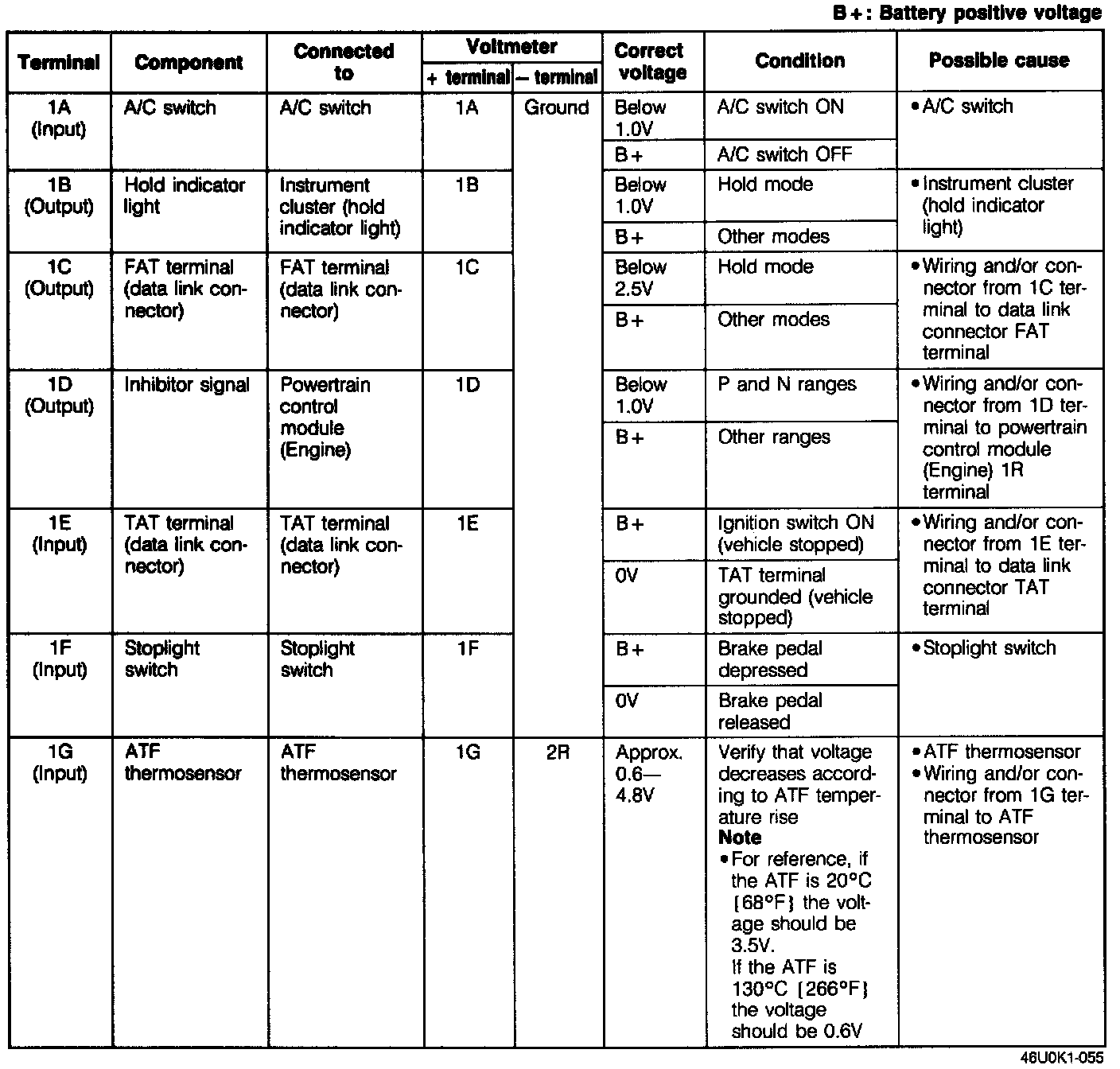

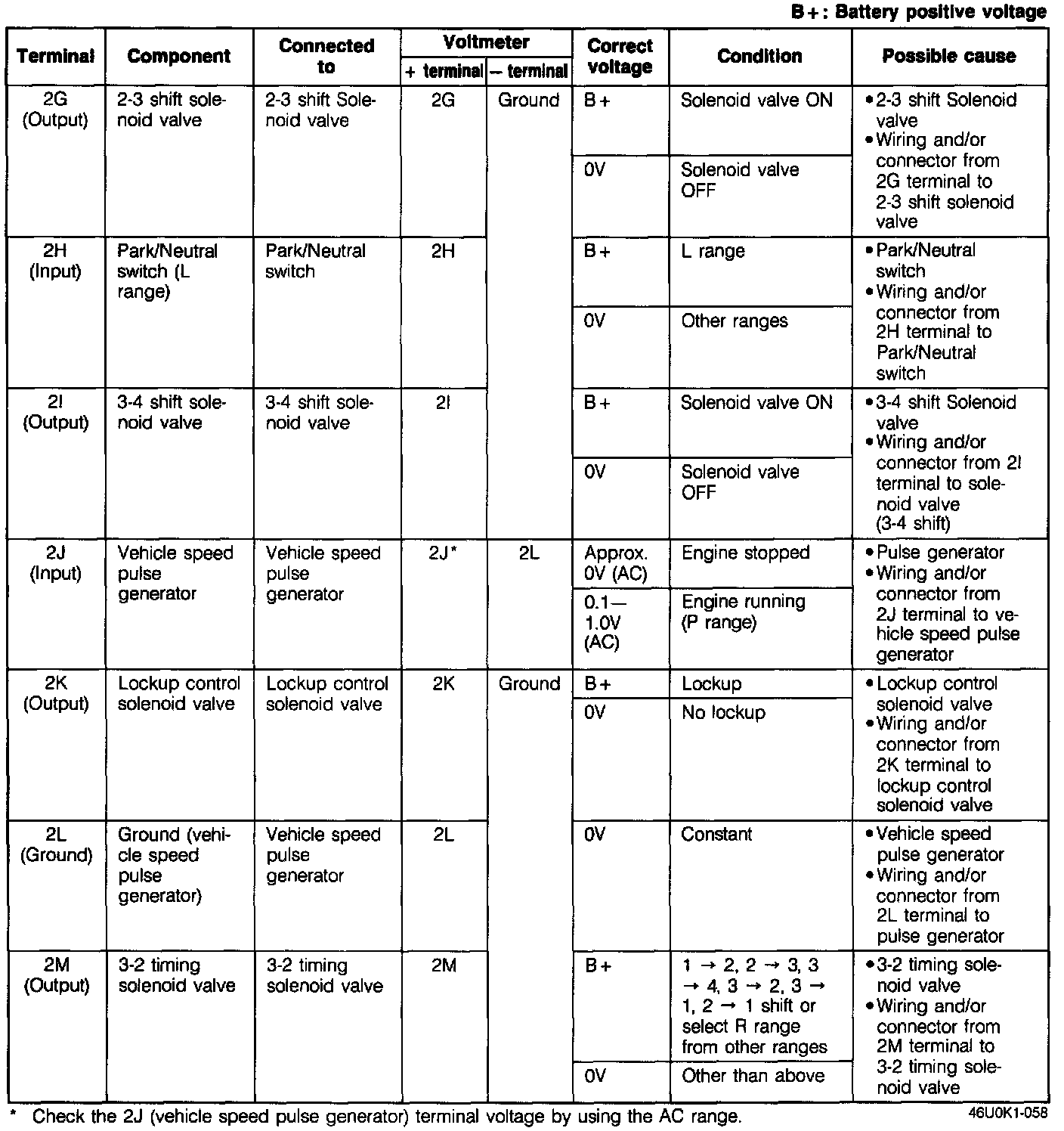

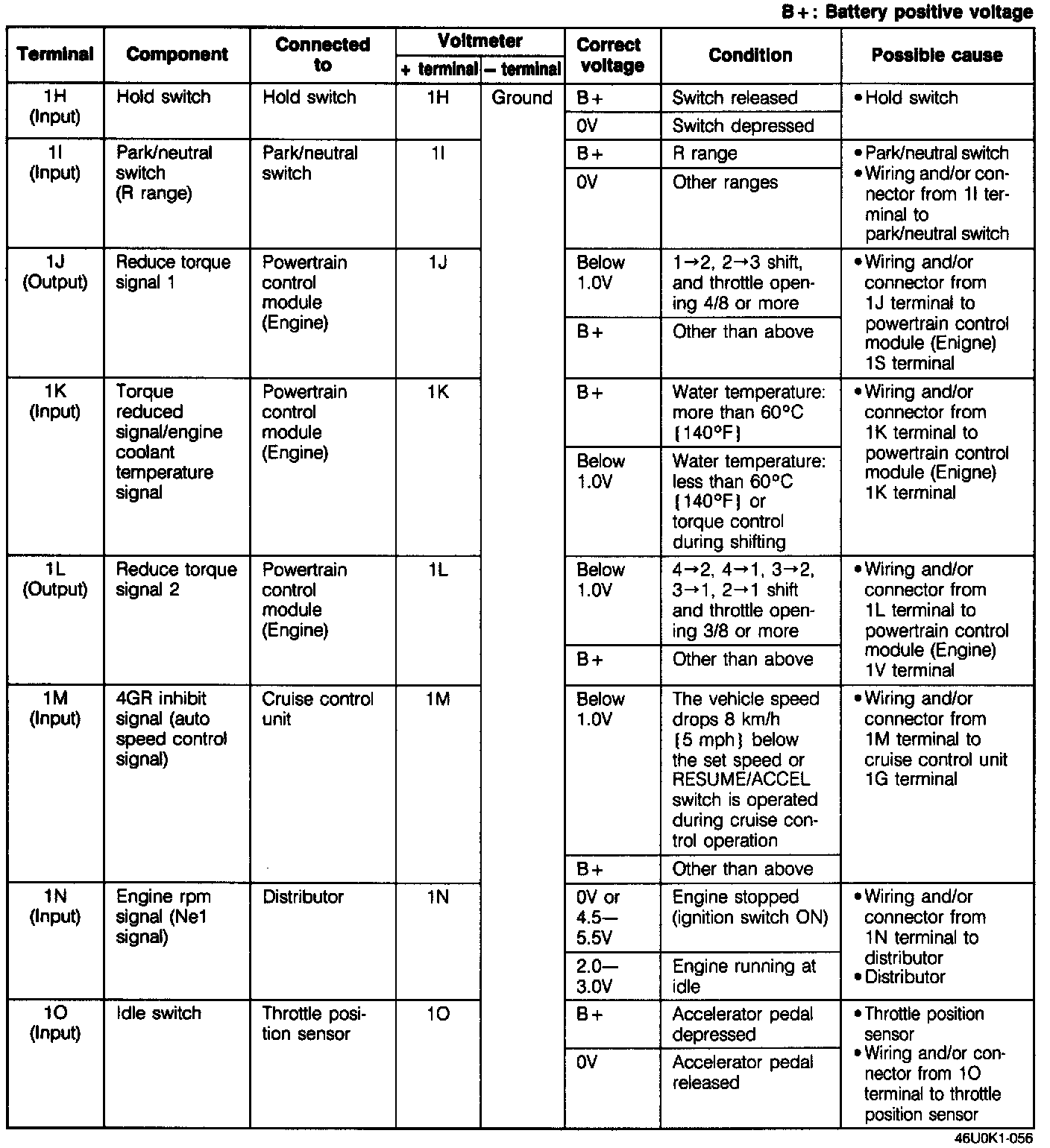

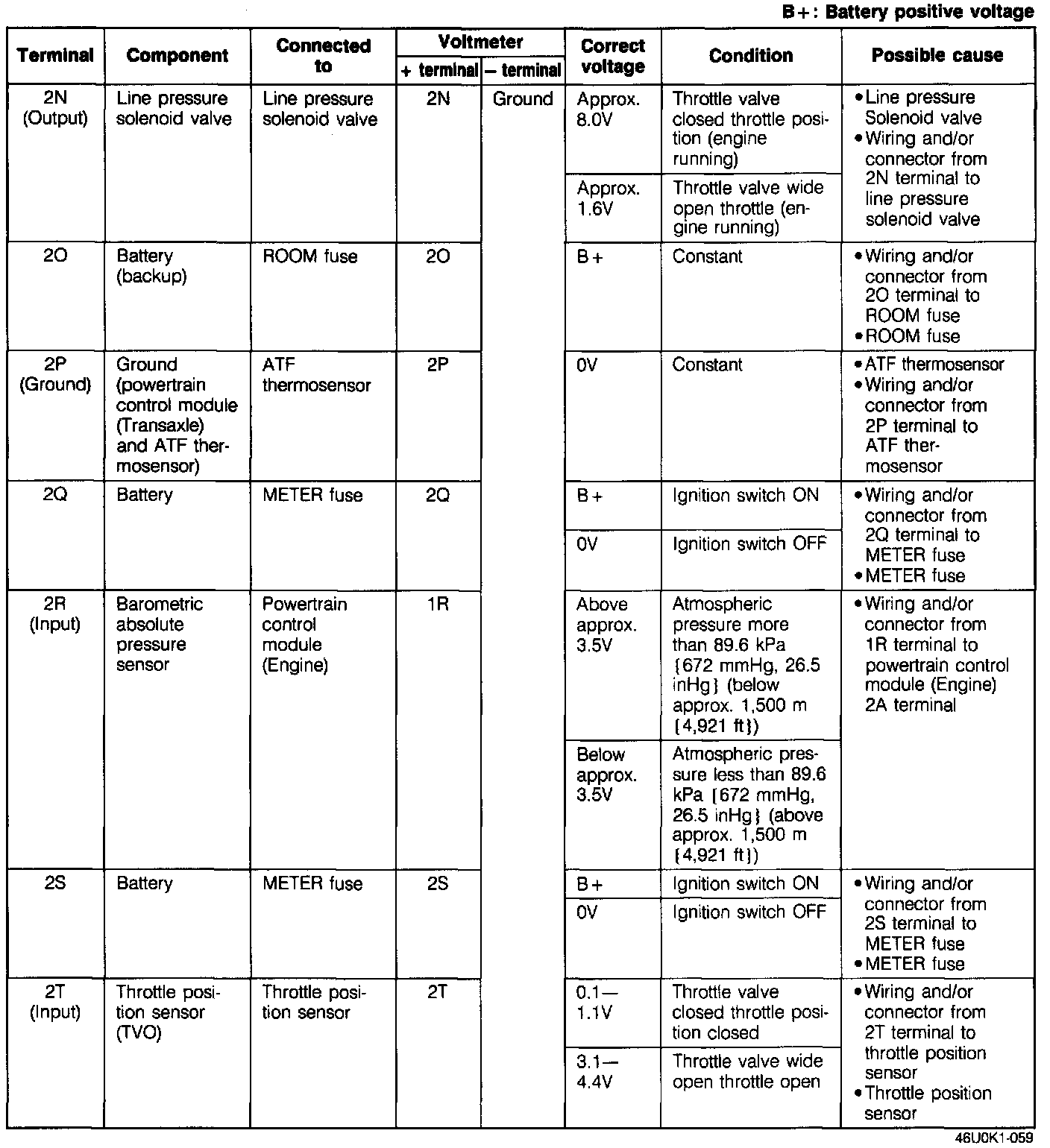

Control Module, A/T
