626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>

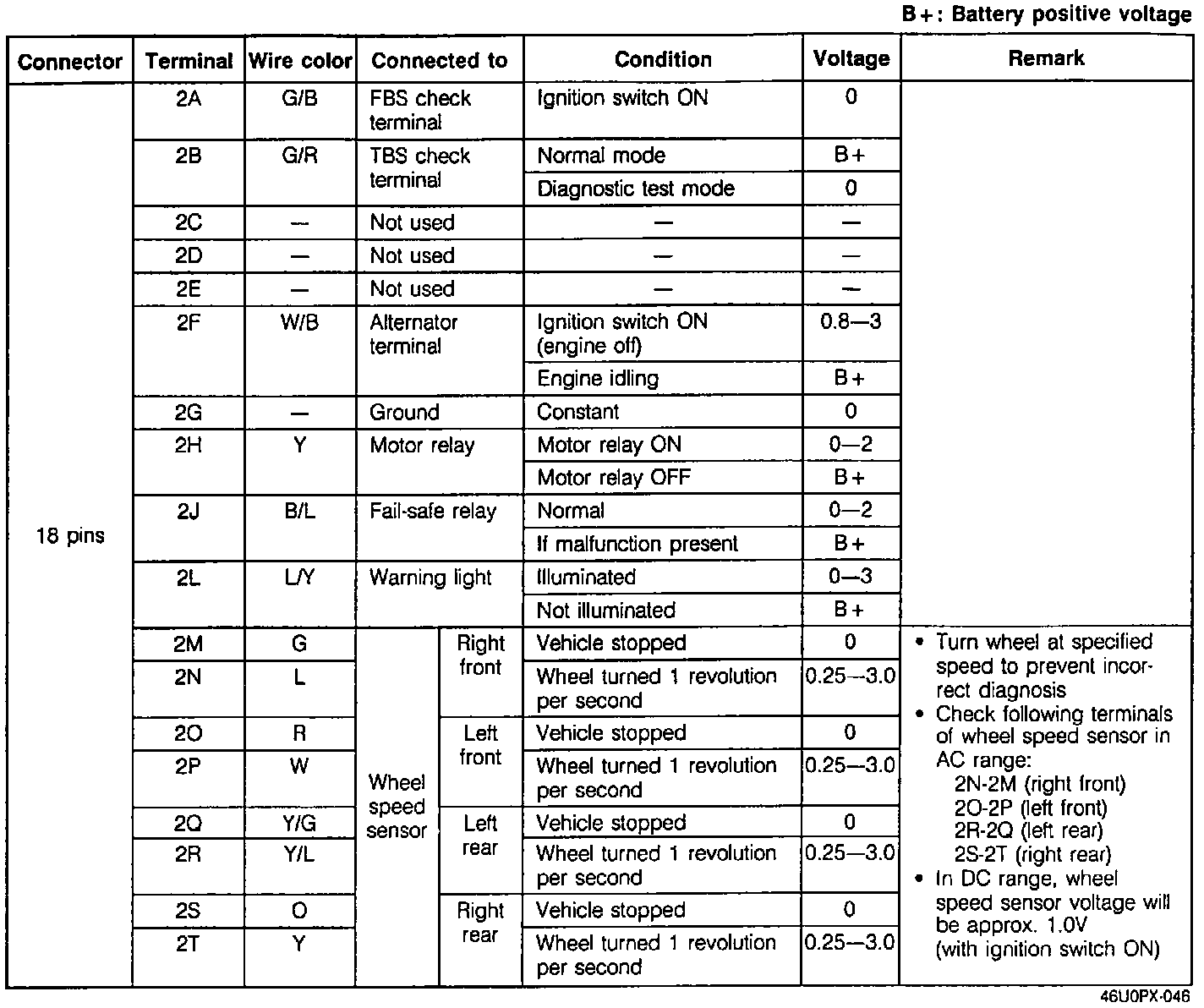

Terminals 2A - 2T
Terminals 2A - 2T
Check ABC Control Unit:
