Home >> Mazda >> 1994 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Powertrain Management >> System Specifications >> ATX >> Terminals 15 - 29

Terminals 15 - 29

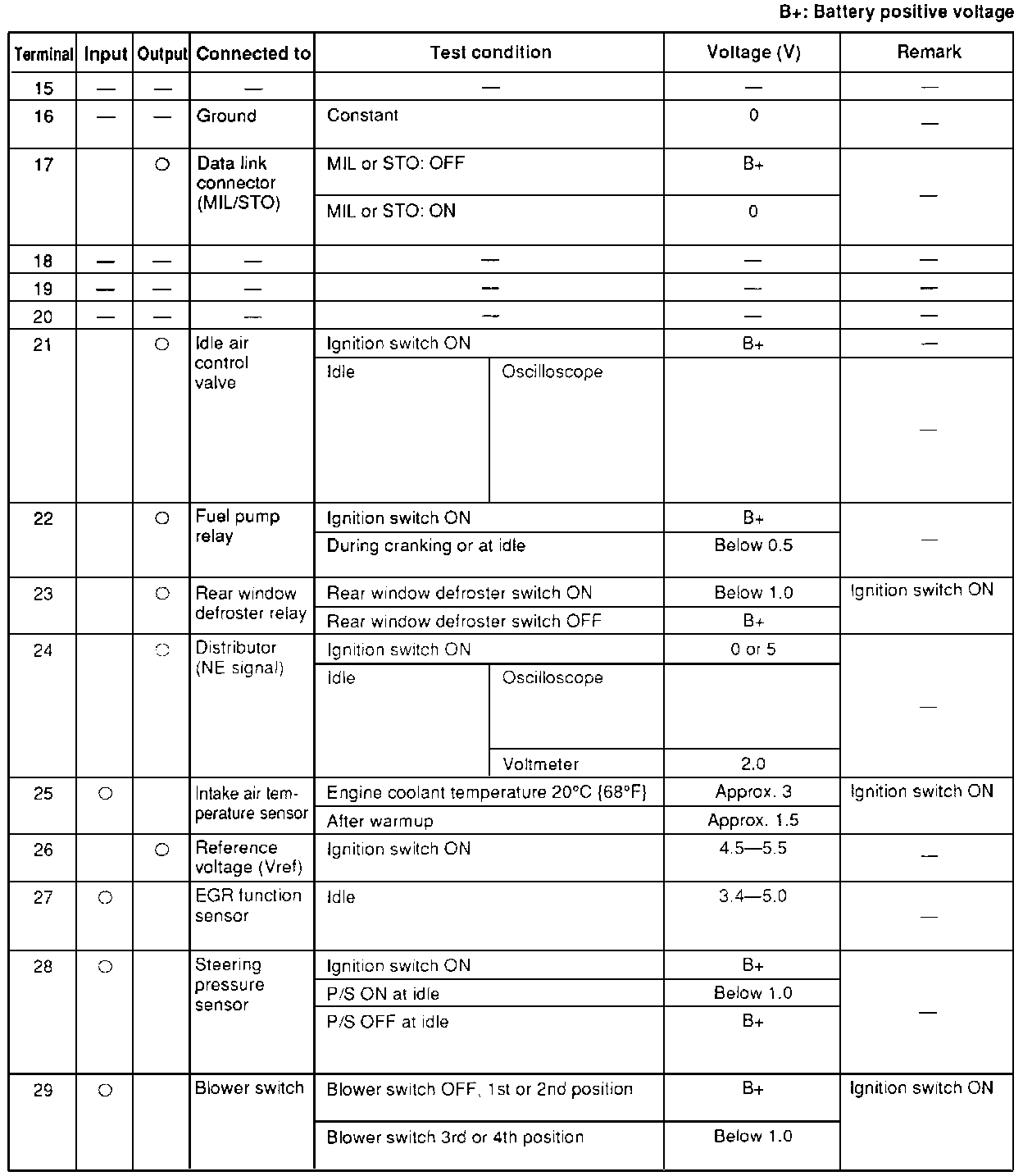

Terminal Voltage (Referance Data):
