Home >> Mazda >> 1994 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Engine Control System >> B-1C

B-1C

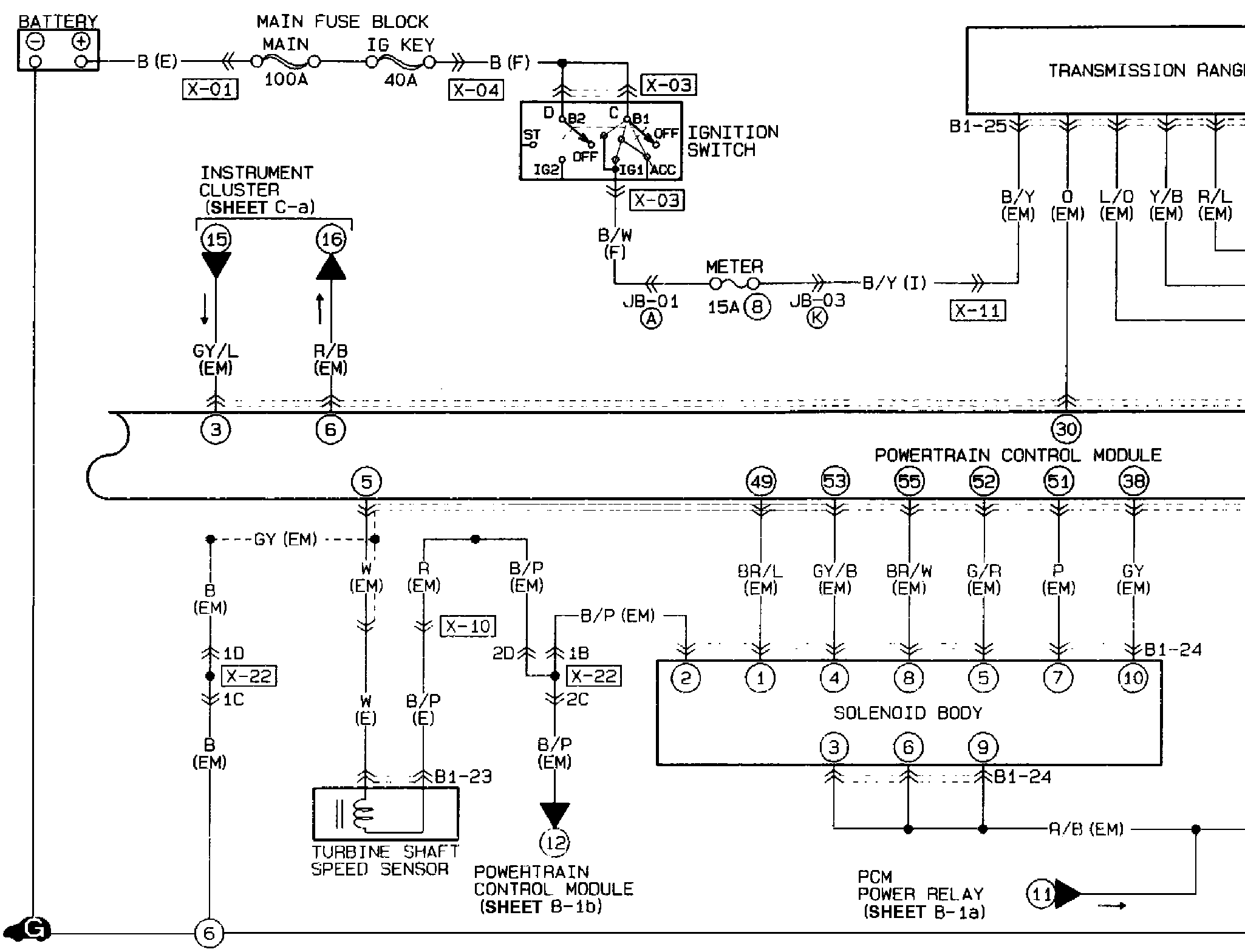

.٭#ATX EC-AT Control System, Engine Control System:
