Ignition Coil: Testing and Inspection

Coil Resistance:

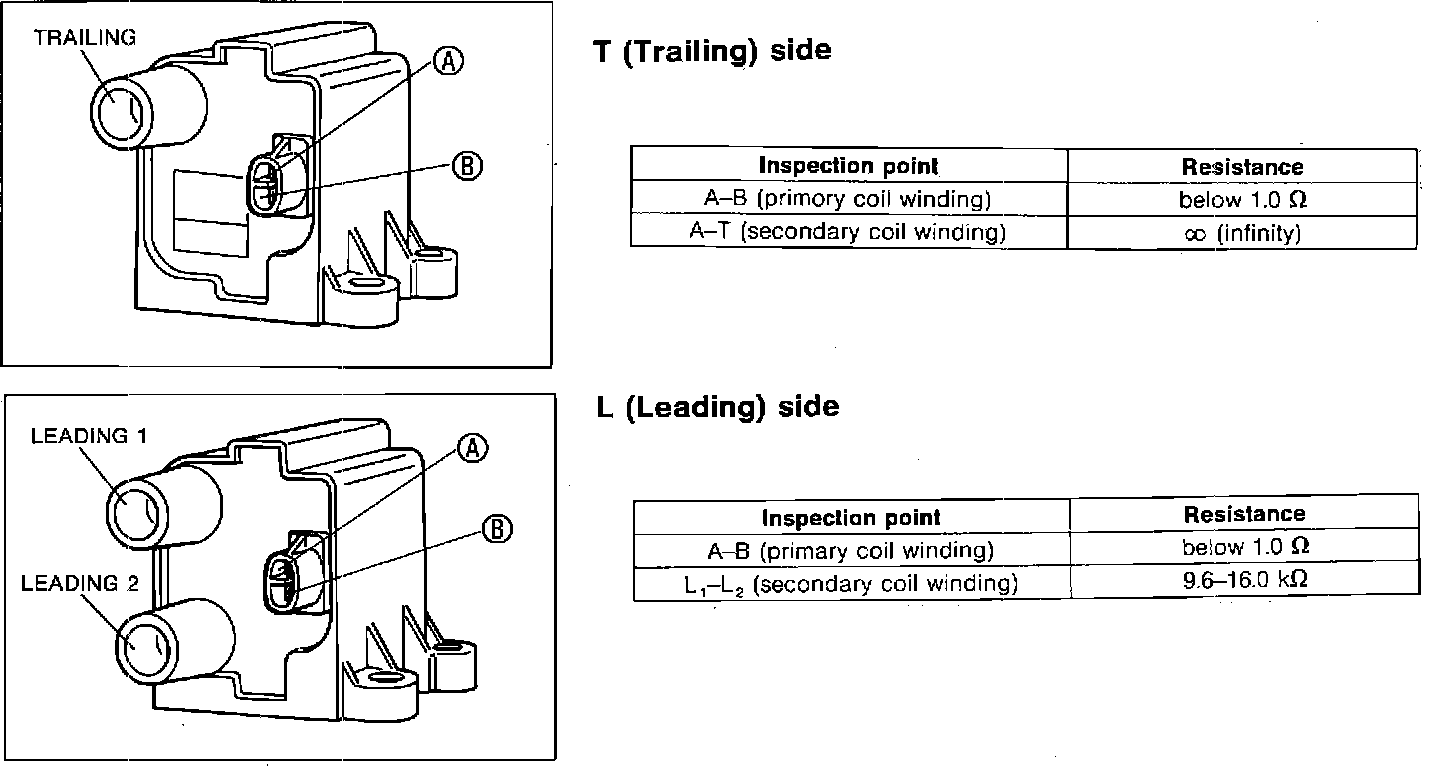

1. Check coil resistance as shown on image charts.
2. Replace any coils not within specification.
