System Circuit Diagram

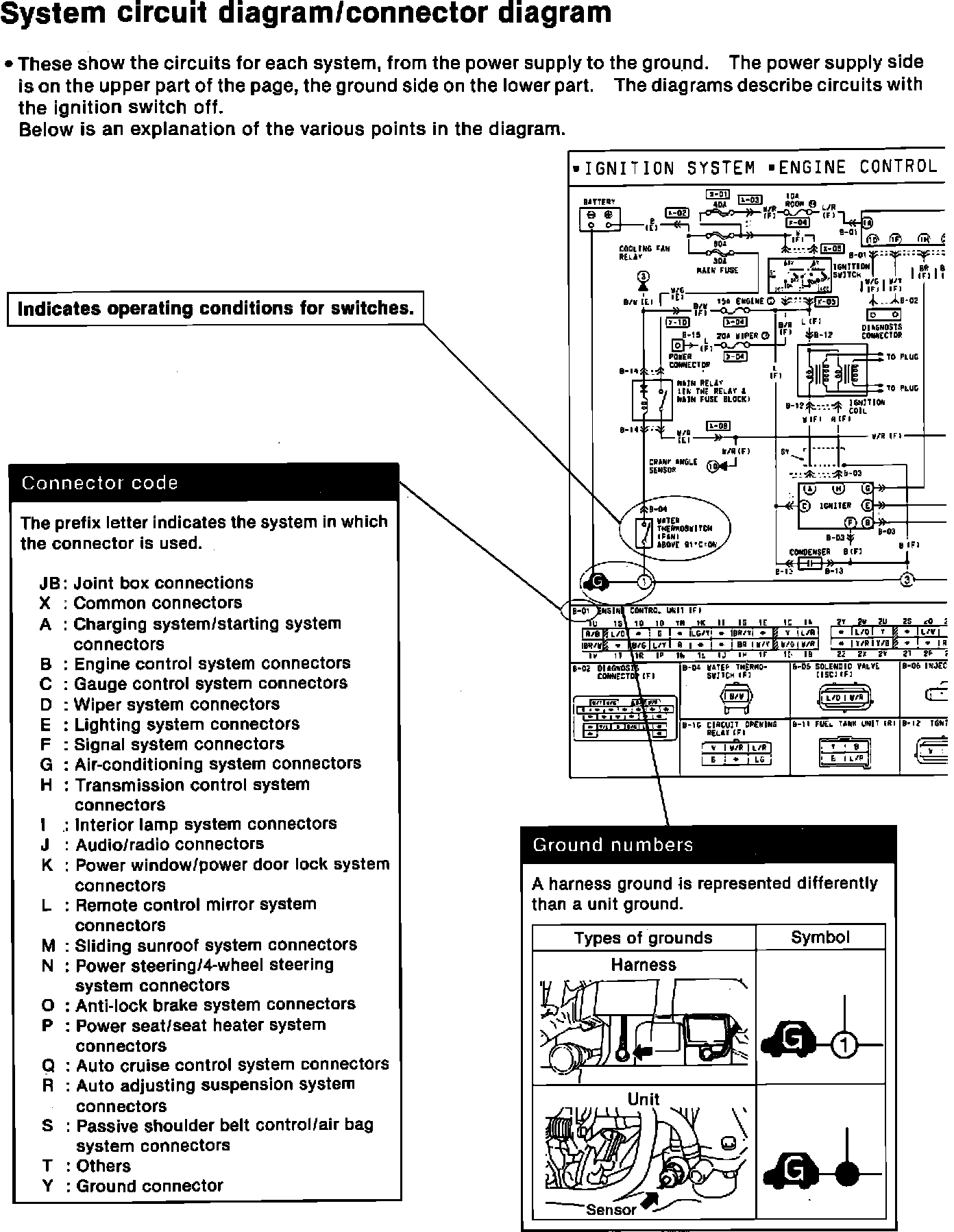

Reading Wiring Diagrams - System Circuit Diagram/Connector:

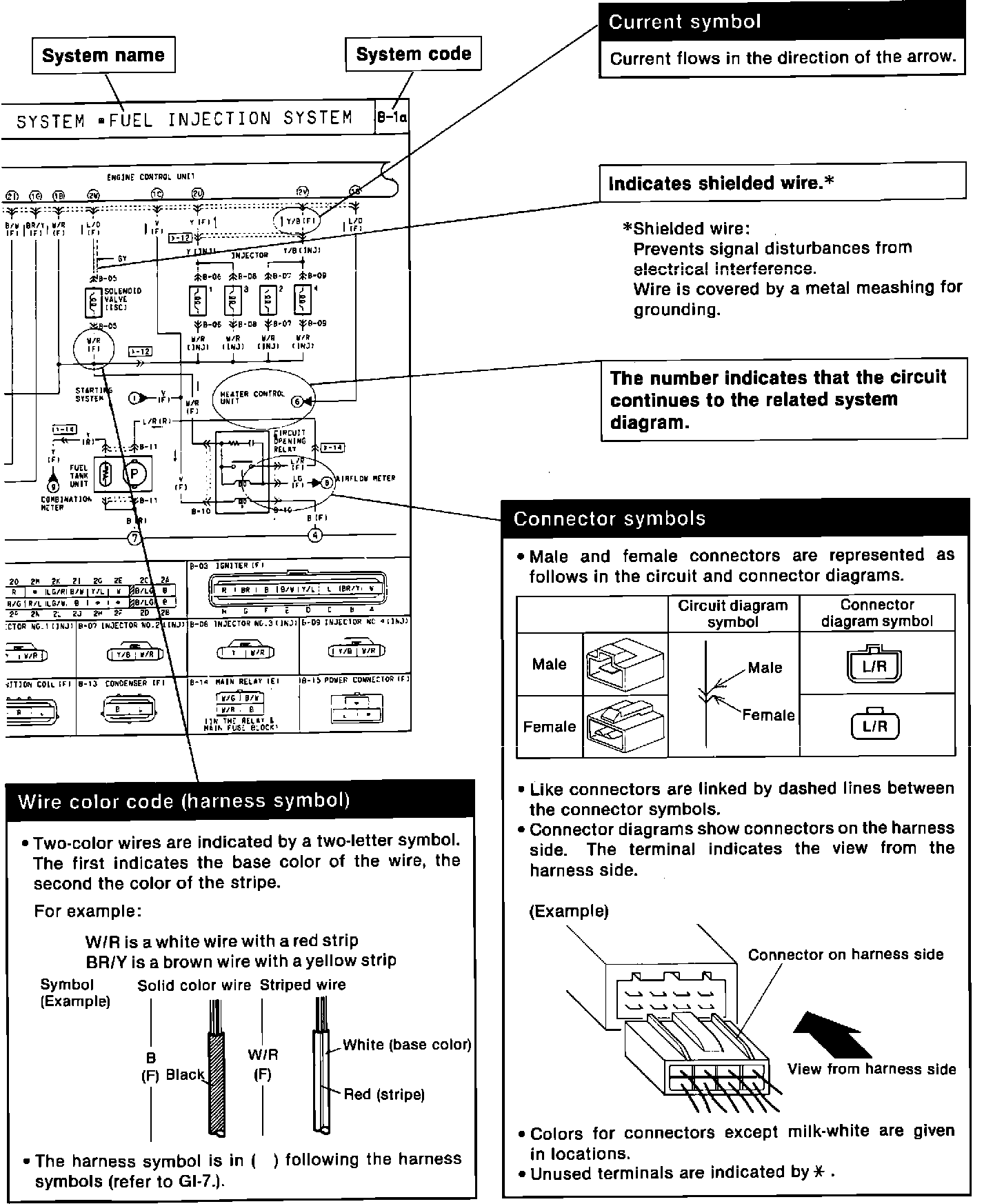

Reading Wiring Diagrams. System Circuit Diagram/Connector Diagram:
