Home >> Mazda >> 1993 >> Protege L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Starting System >> System Specifications

System Specifications

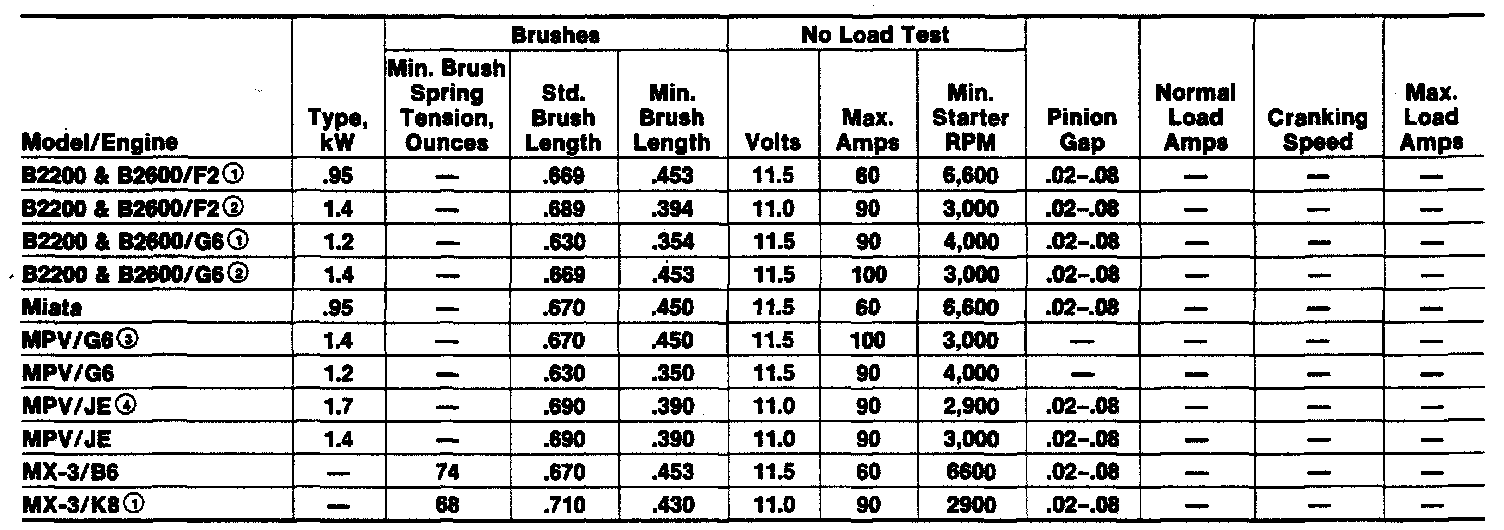

Starter Specifications (Part 1):



Starter Specifications (Part 2):
