Home >> Mazda >> 1993 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module

General Module

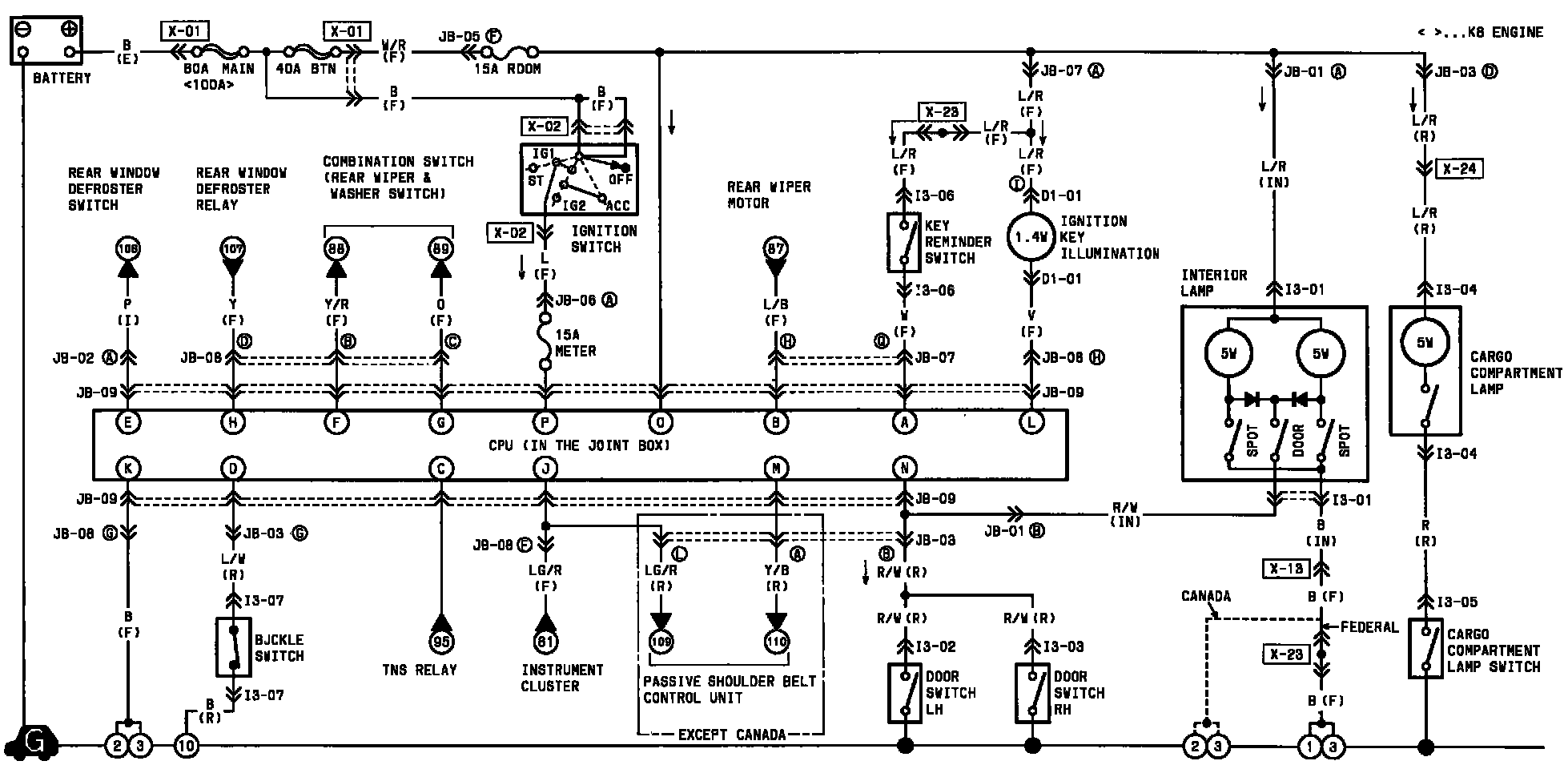

Interior Lamp, Cargo Compartment Lamp, Ignition Key Illumination, And Central Processing Unit (CPU:
