929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

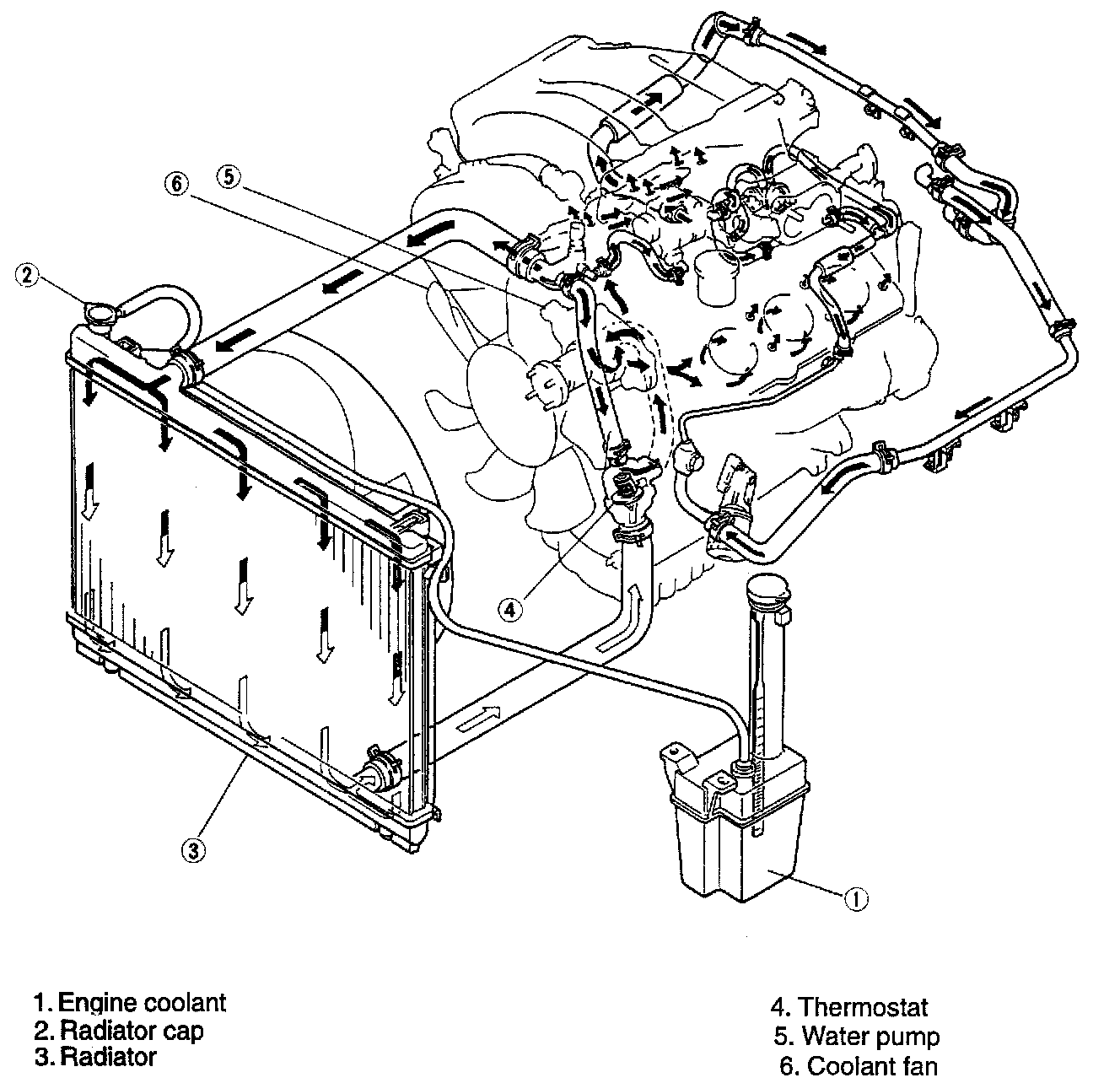

Cooling System
Cooling System

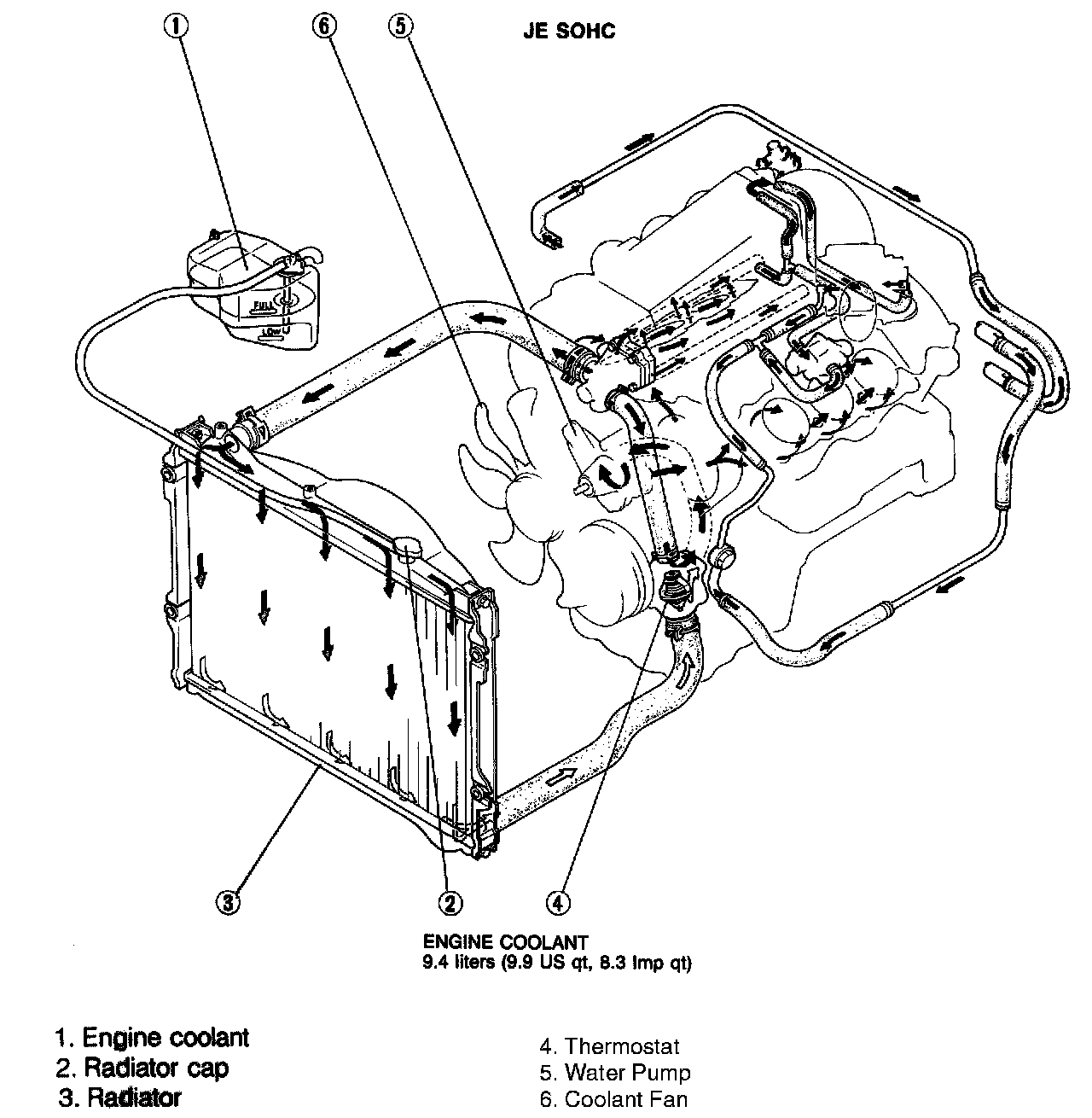

SOHC

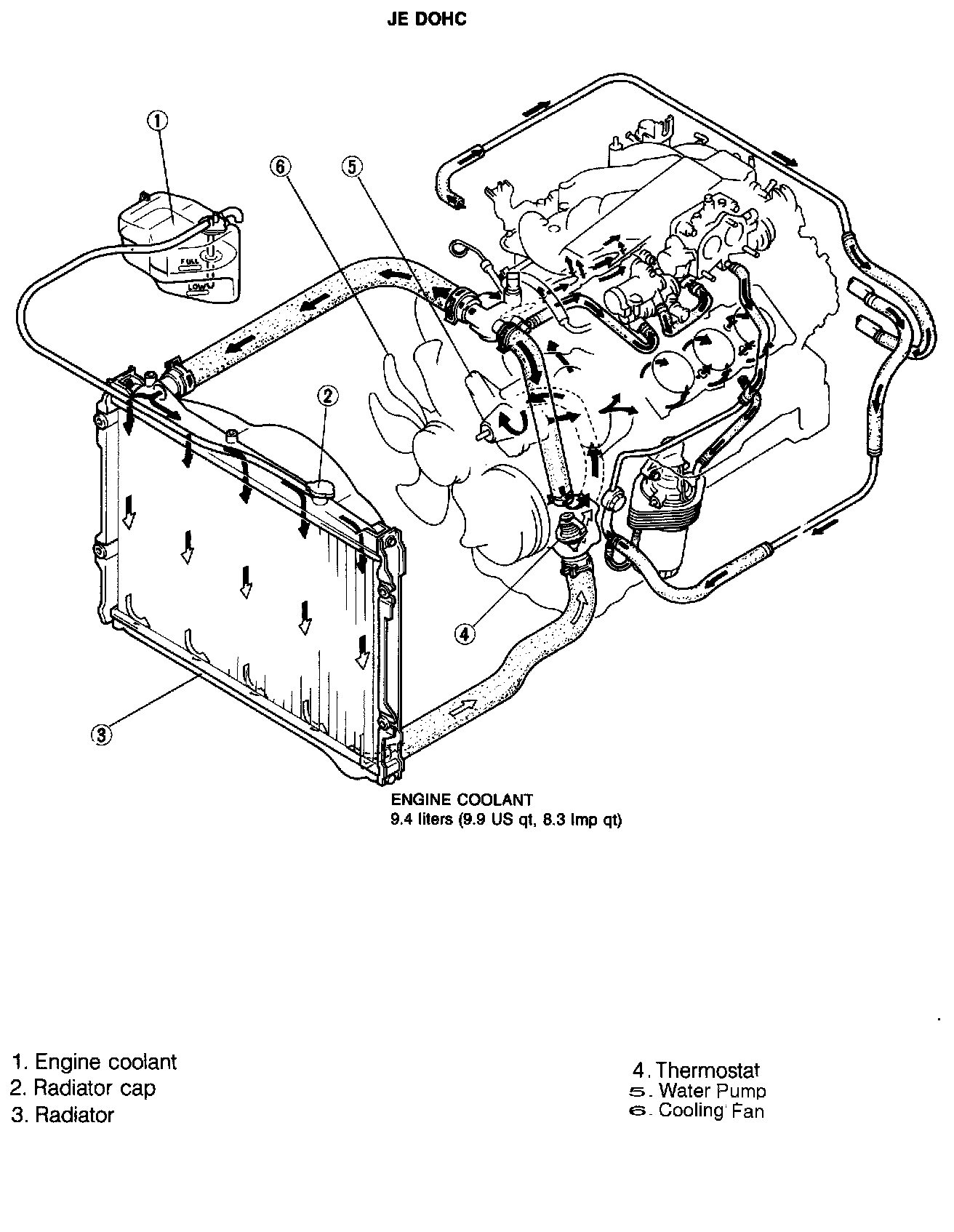

DOHC
1990-91
1992-95
