Home >> Mazda >> 1993 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Component Locations >> Automatic Transmission and Engine Control System >> Part 1 of 4

Part 1 of 4

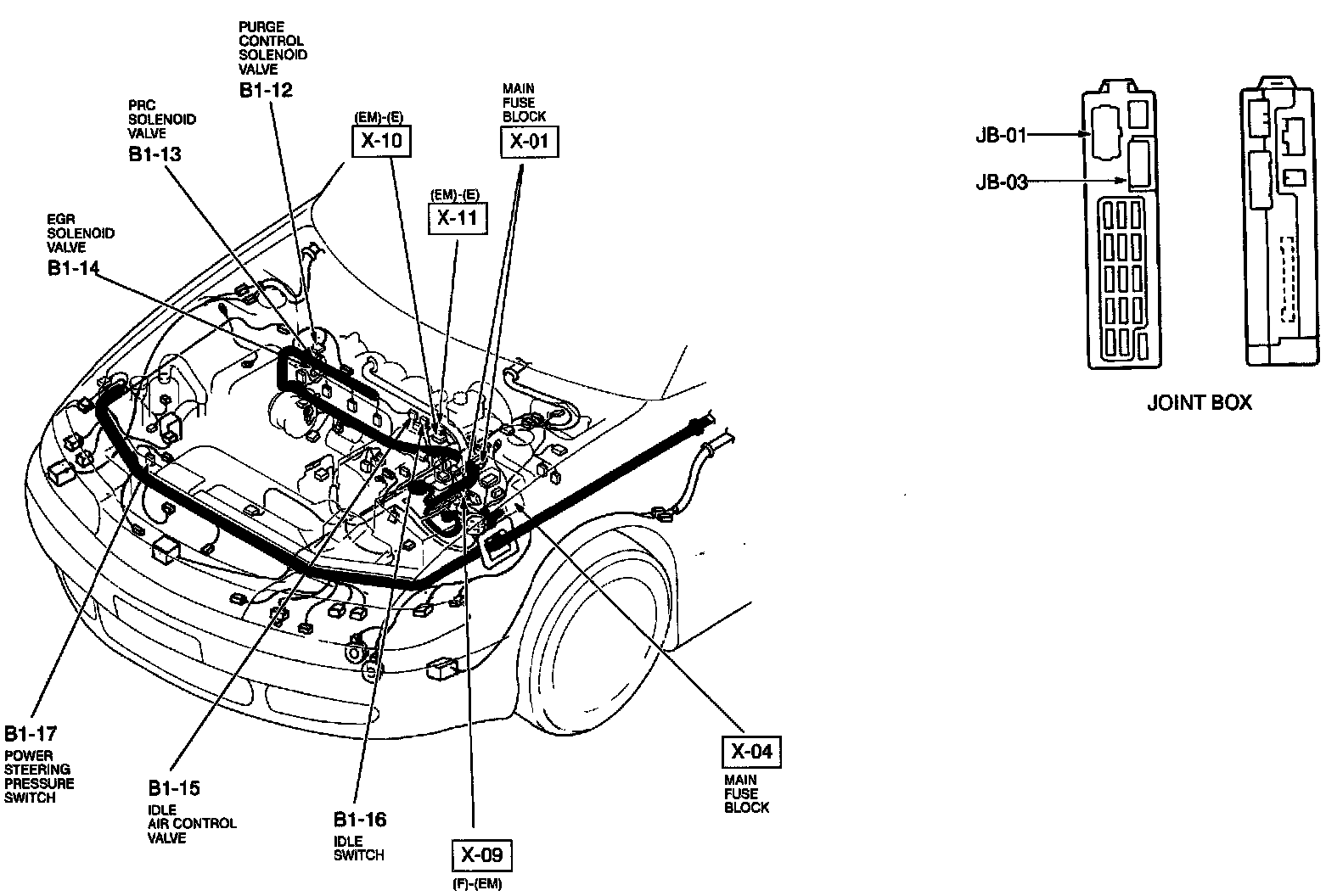

Component Location:

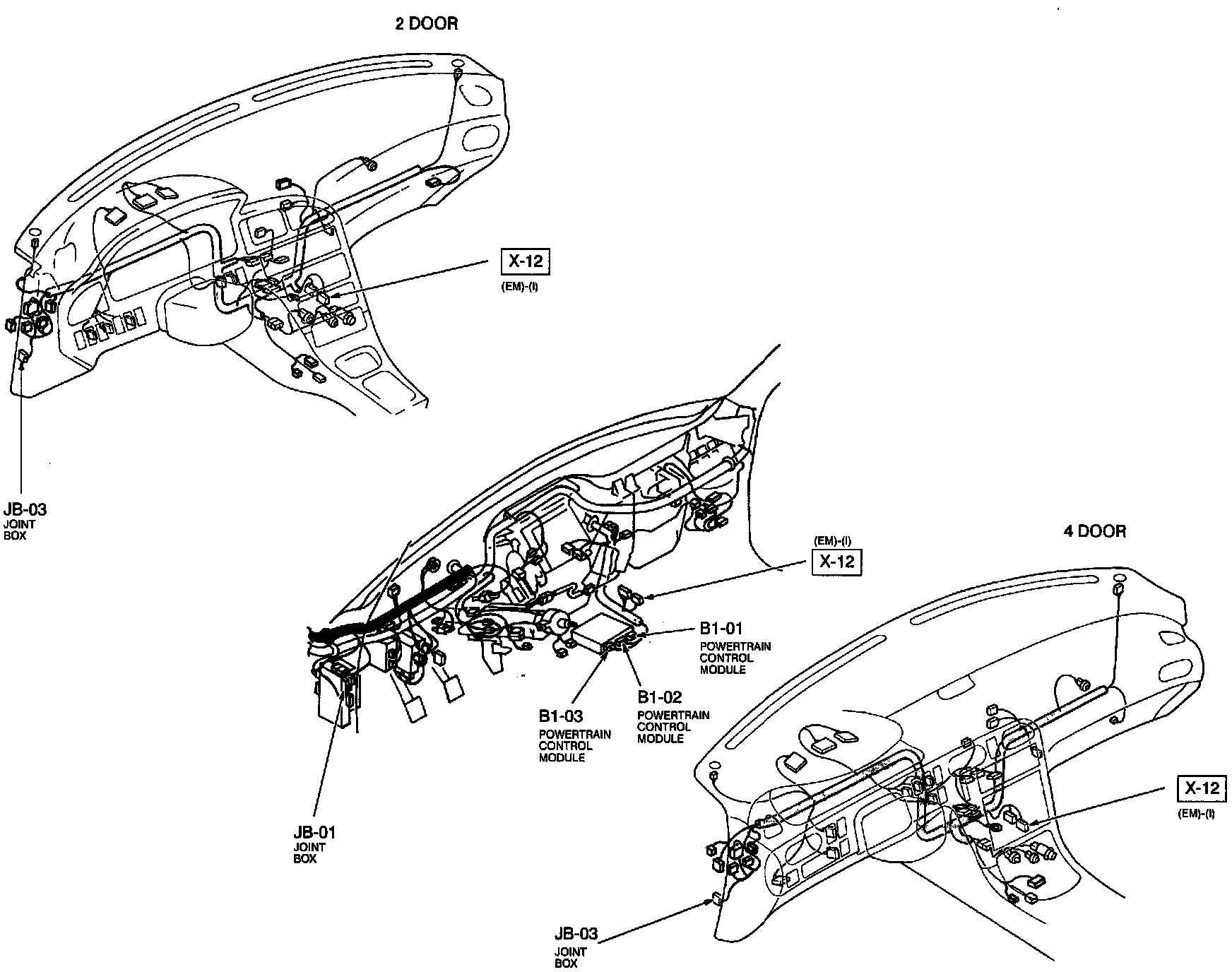

Component Location:
