ATX

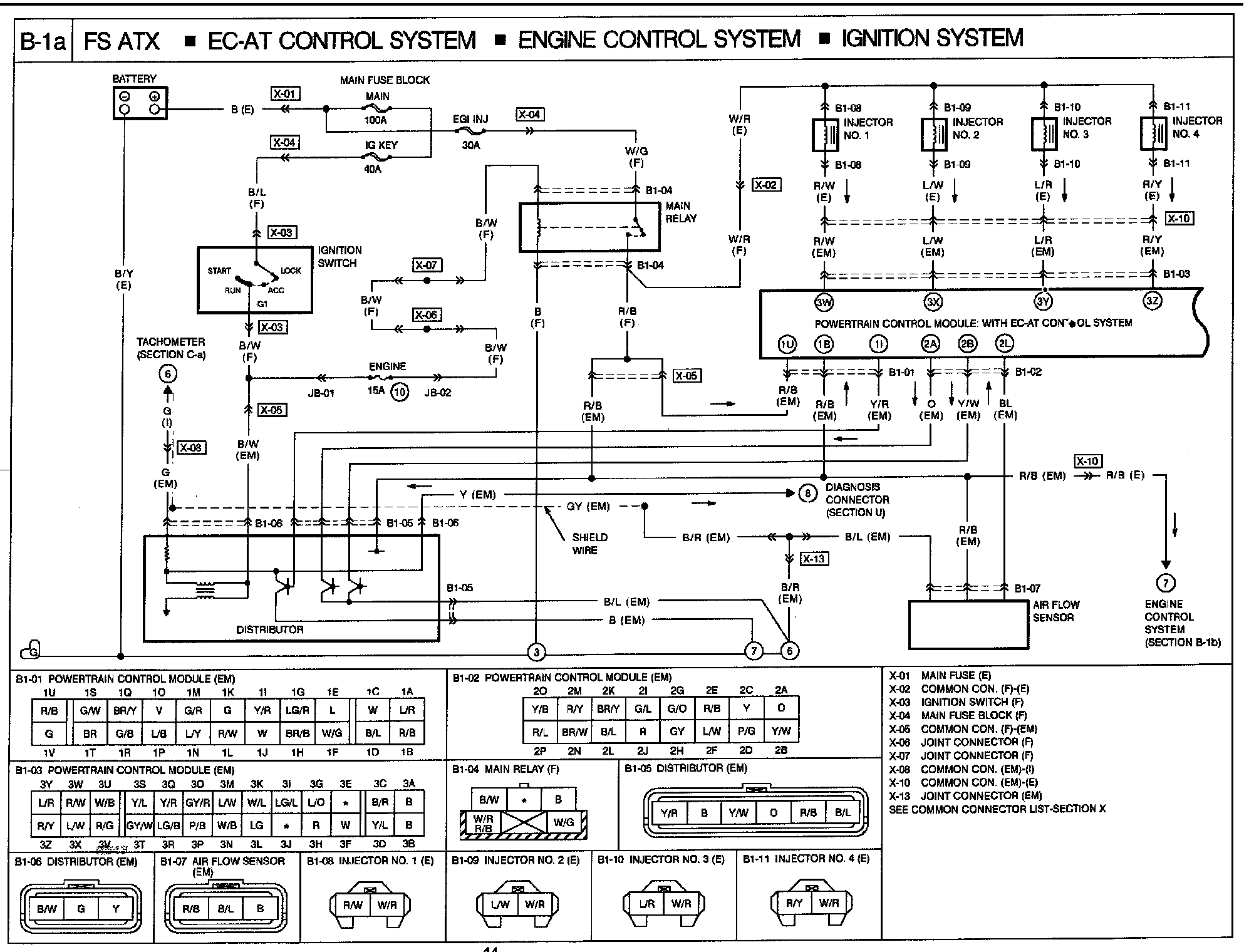

EC-AT Control System / Engine Control System / Ignition System Part 1:



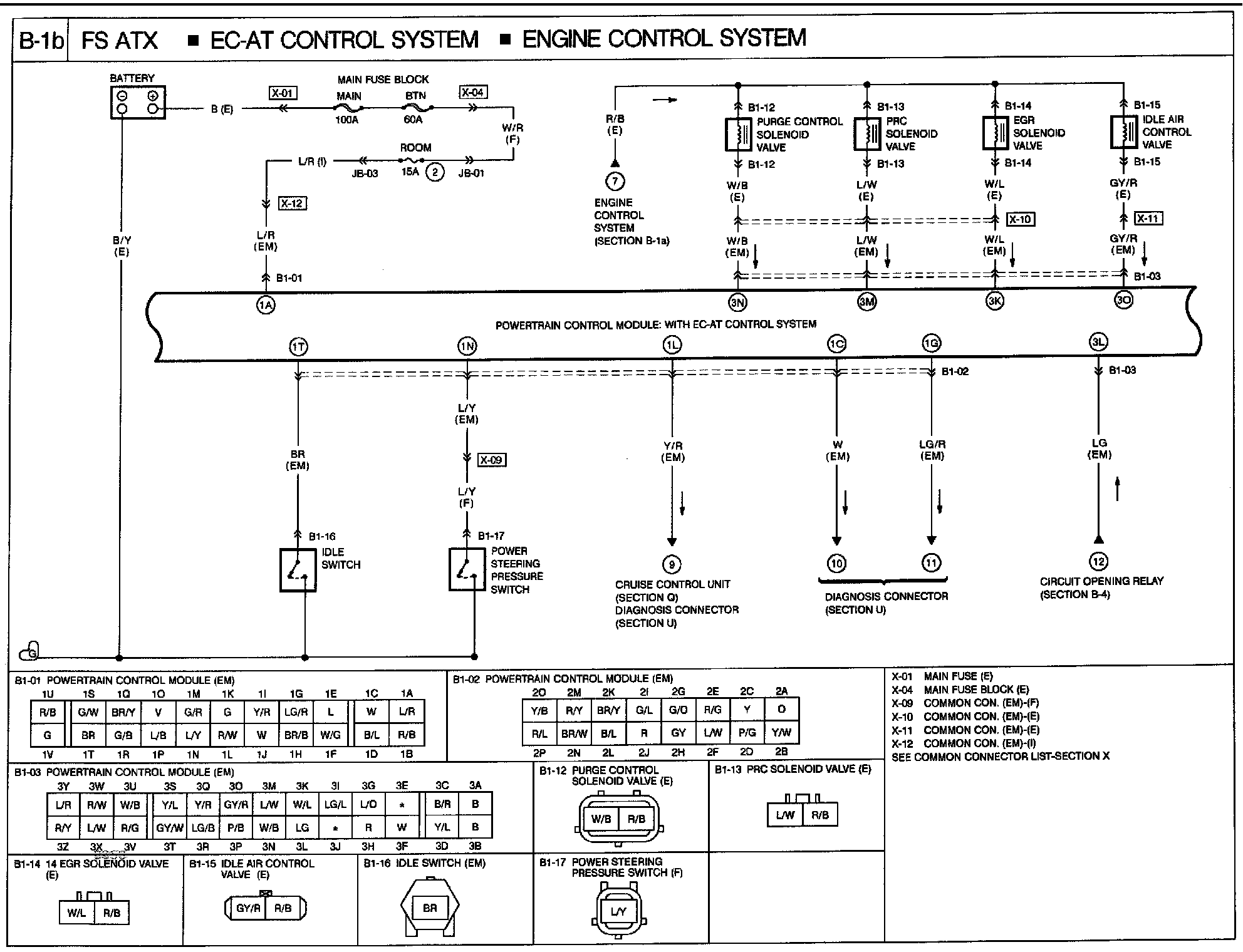

EC-AT Control System / Engine Control System Part 1:



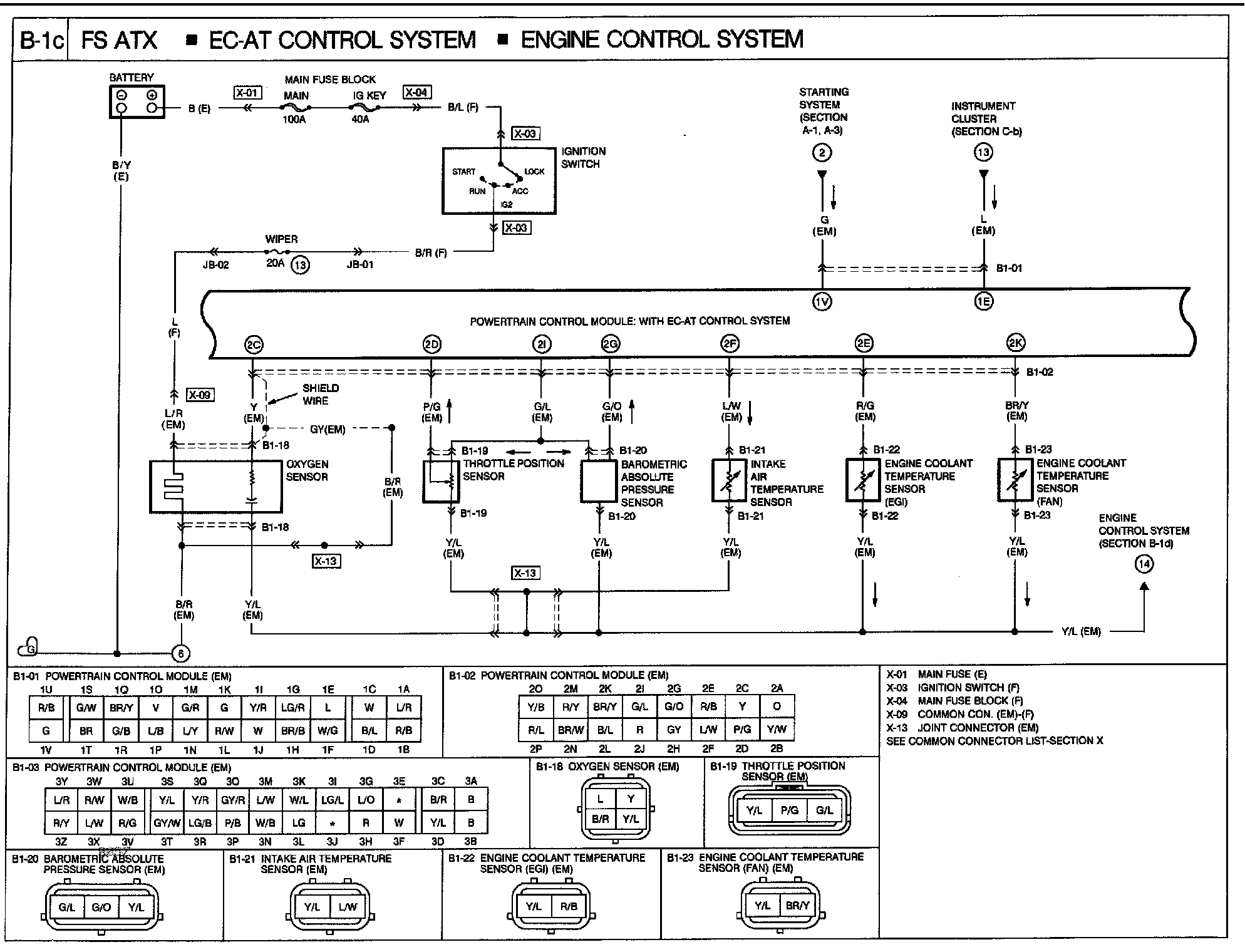

EC-AT Control System / Engine Control System Part 3:



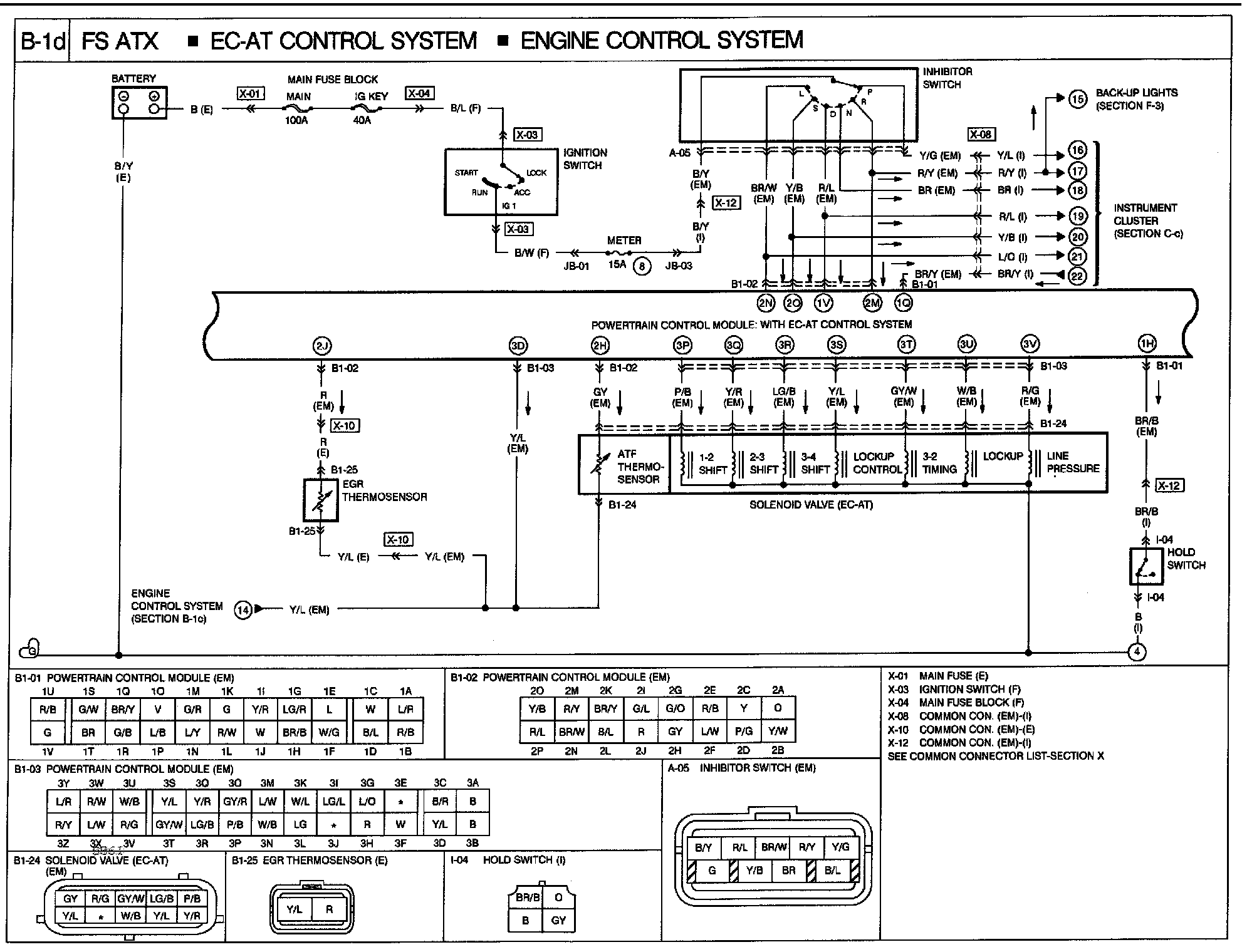

EC-AT Control System / Engine Control System Part 4:



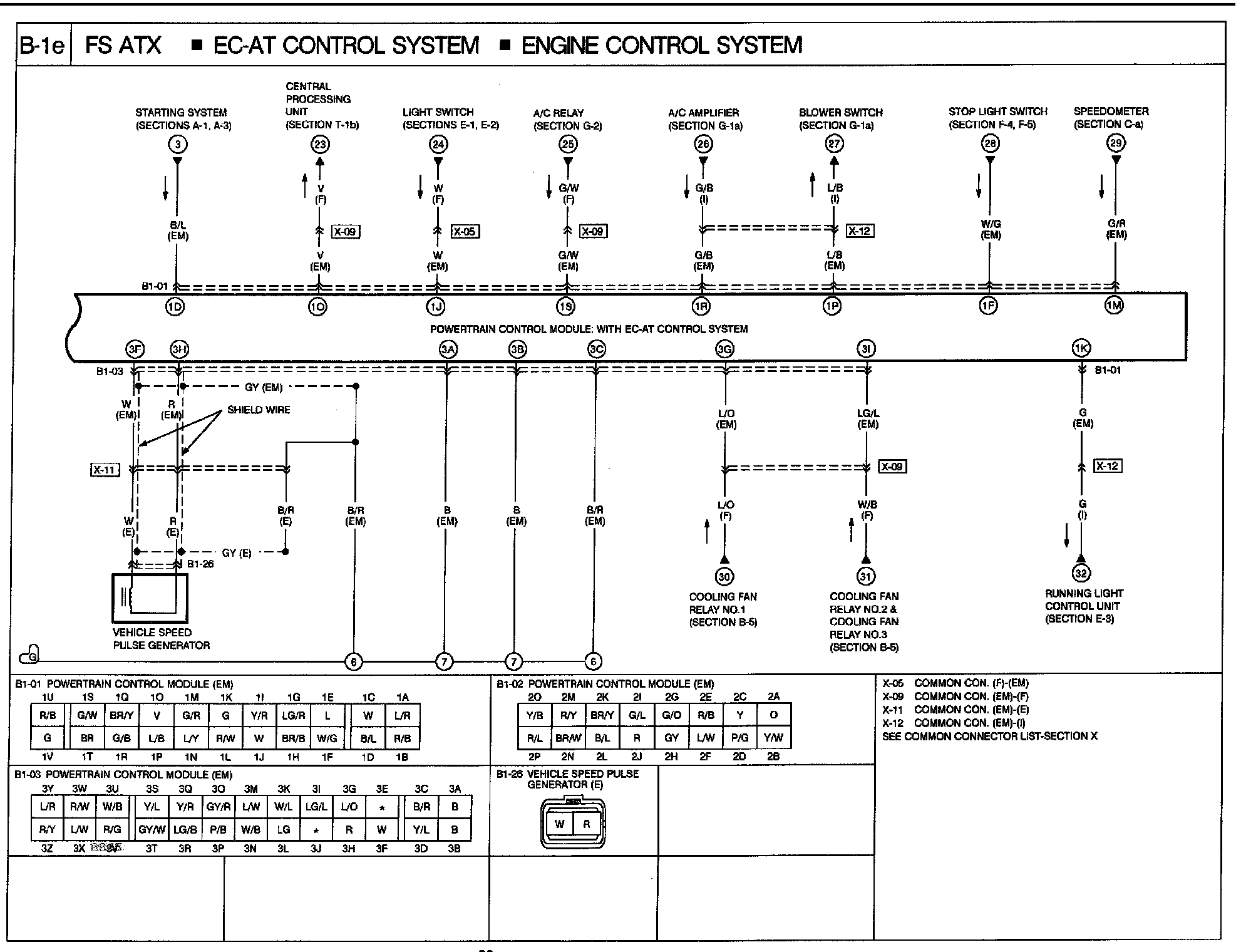

EC-AT Control System / Engine Control System Part 5:
