Control System
Control System

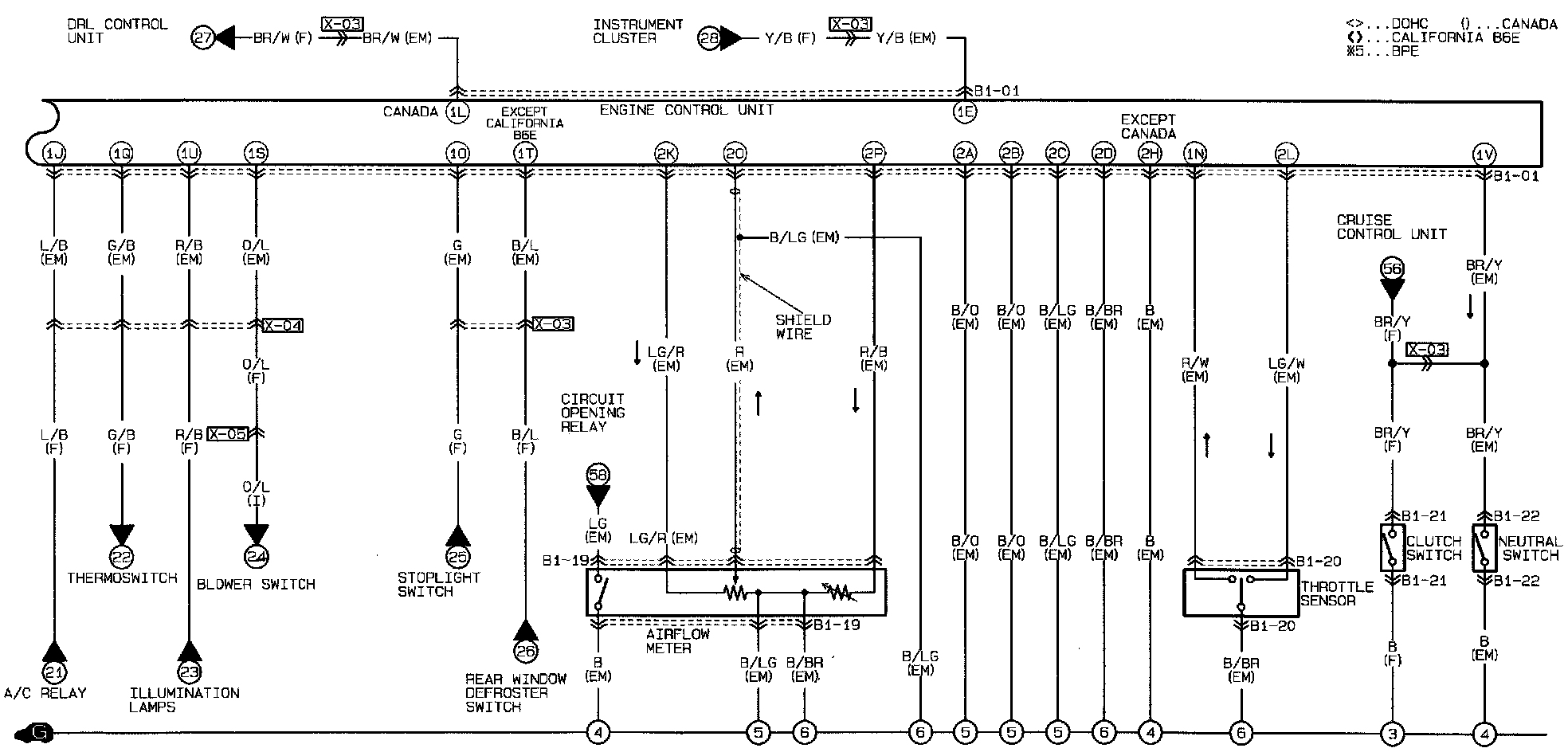

ECU Wiring (M/T, Part 1):

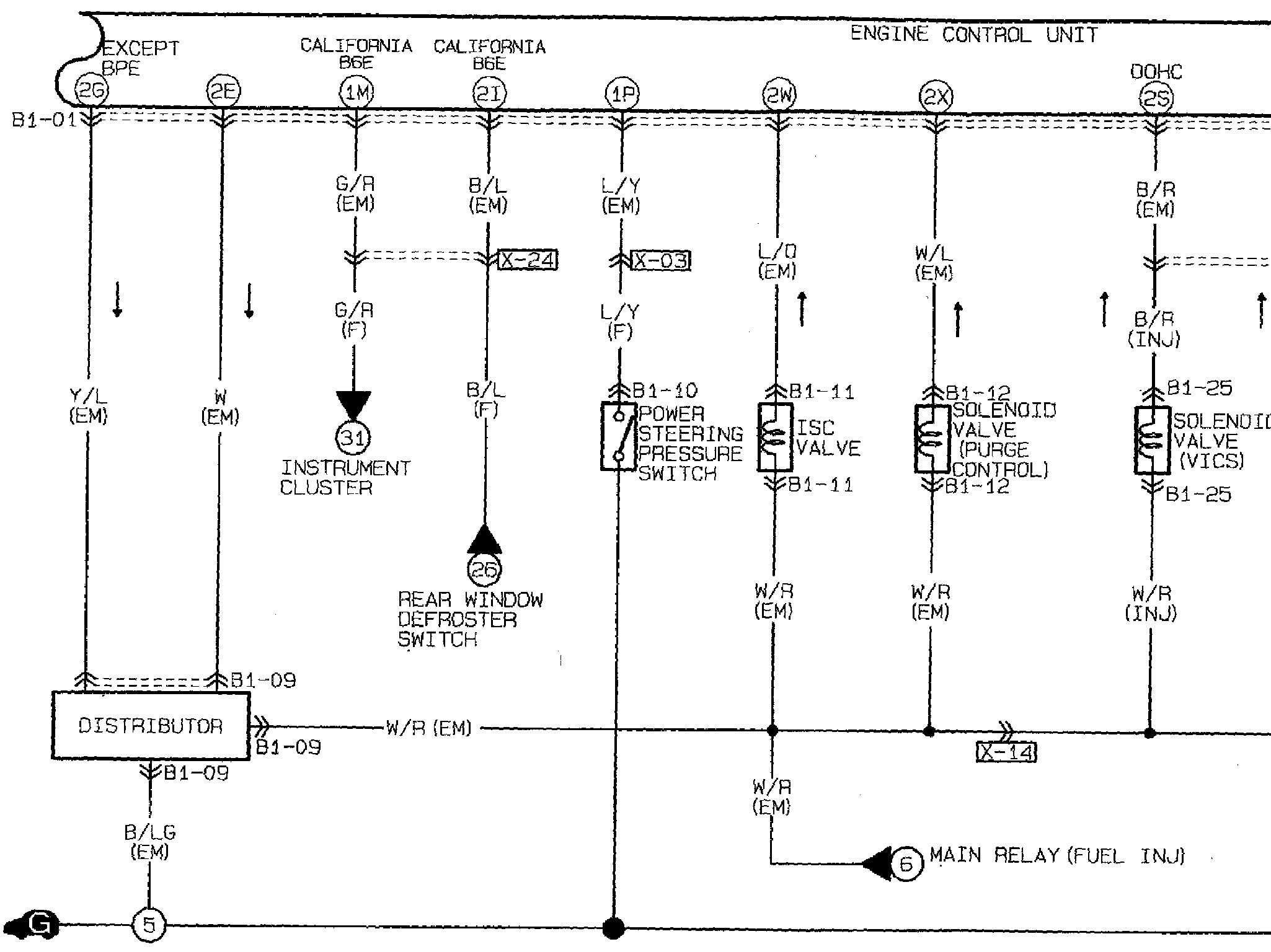

��F>ECU Wiring (M/T, Part 2):

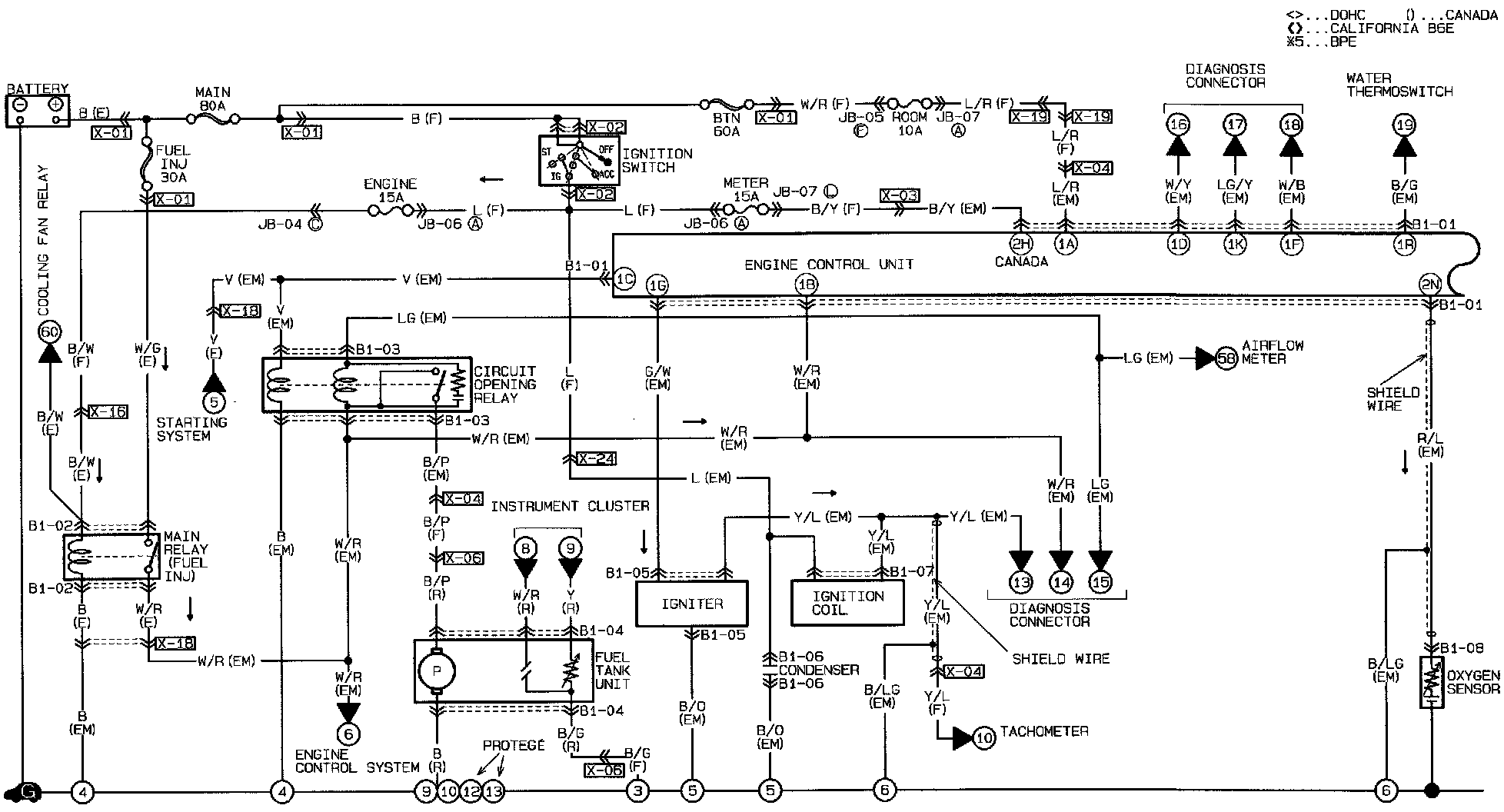

ECU Wiring (M/T, Part 3):
