Home >> Mazda >> 1993 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

Central Control Module

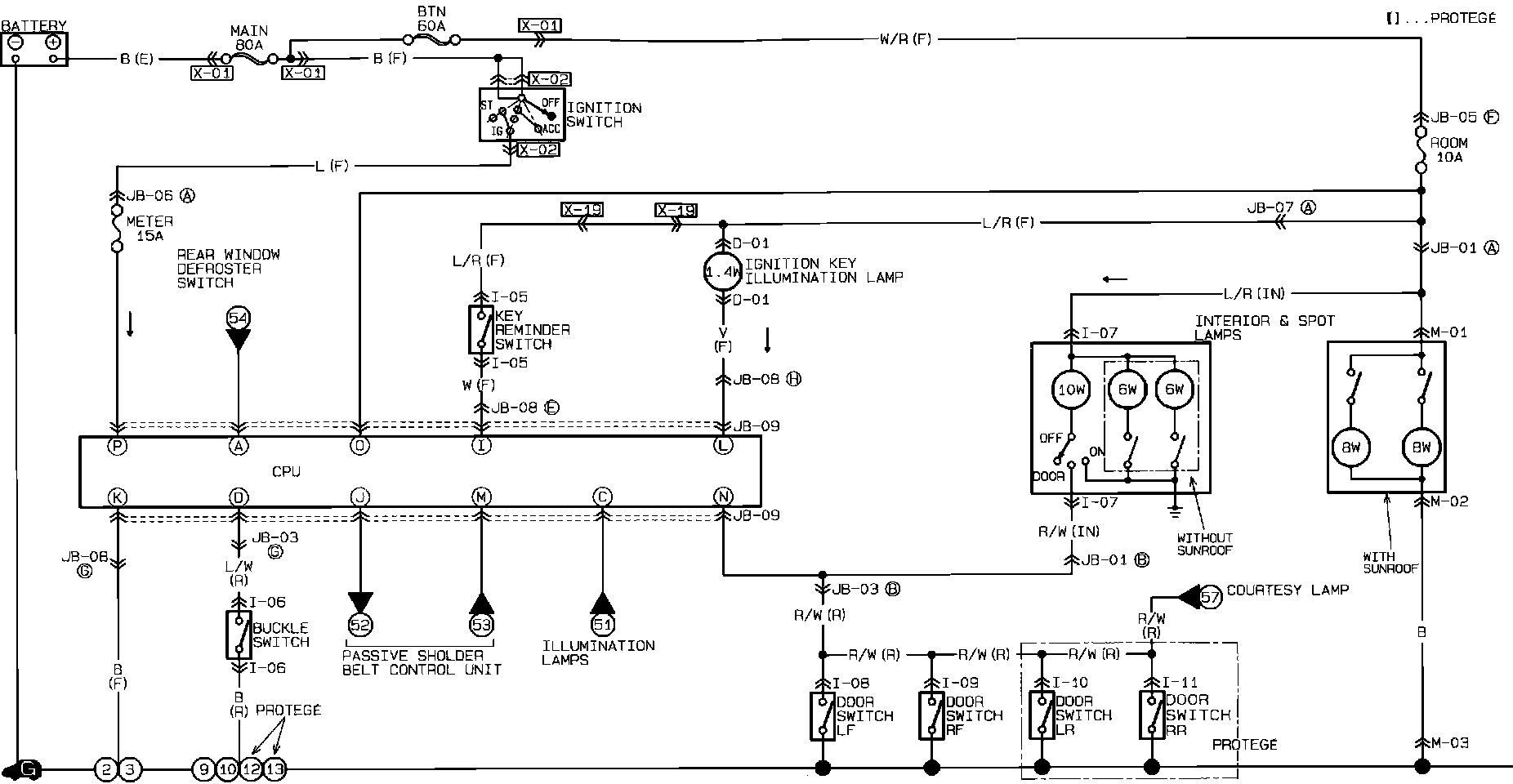

Interior, Spot, Central Processing Unit (CPU), And Ignition Key Illumination Lamps:
