Auto Trans. Engine Control Fuel and Ignition Systems

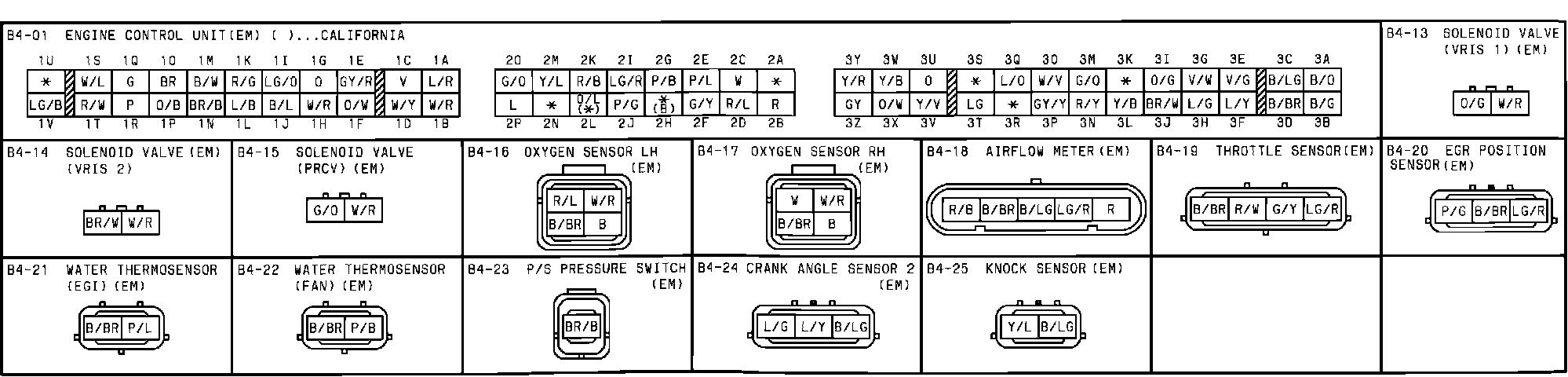

Engine Control System. A/T. Connector Identification:

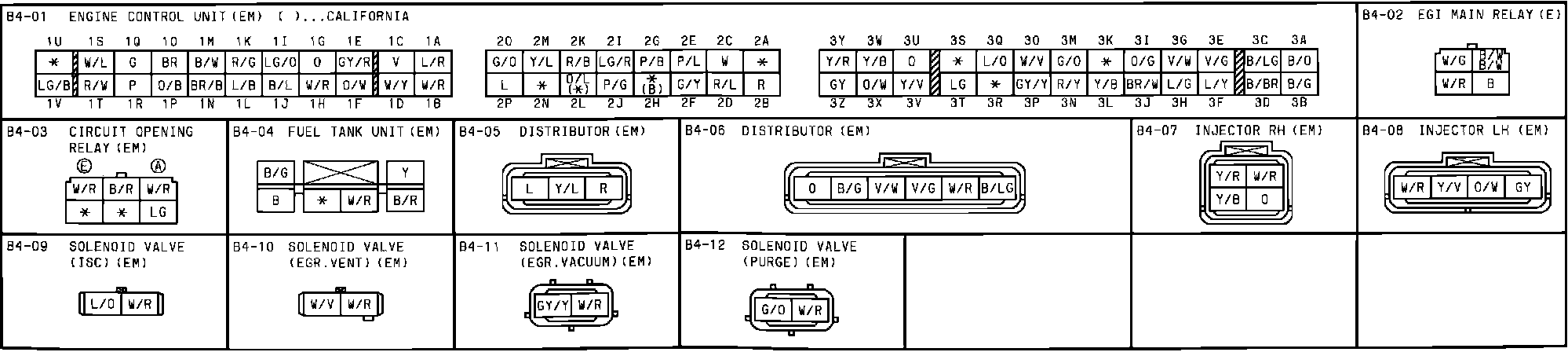

Engine Control System. A/T. Connector Identification:

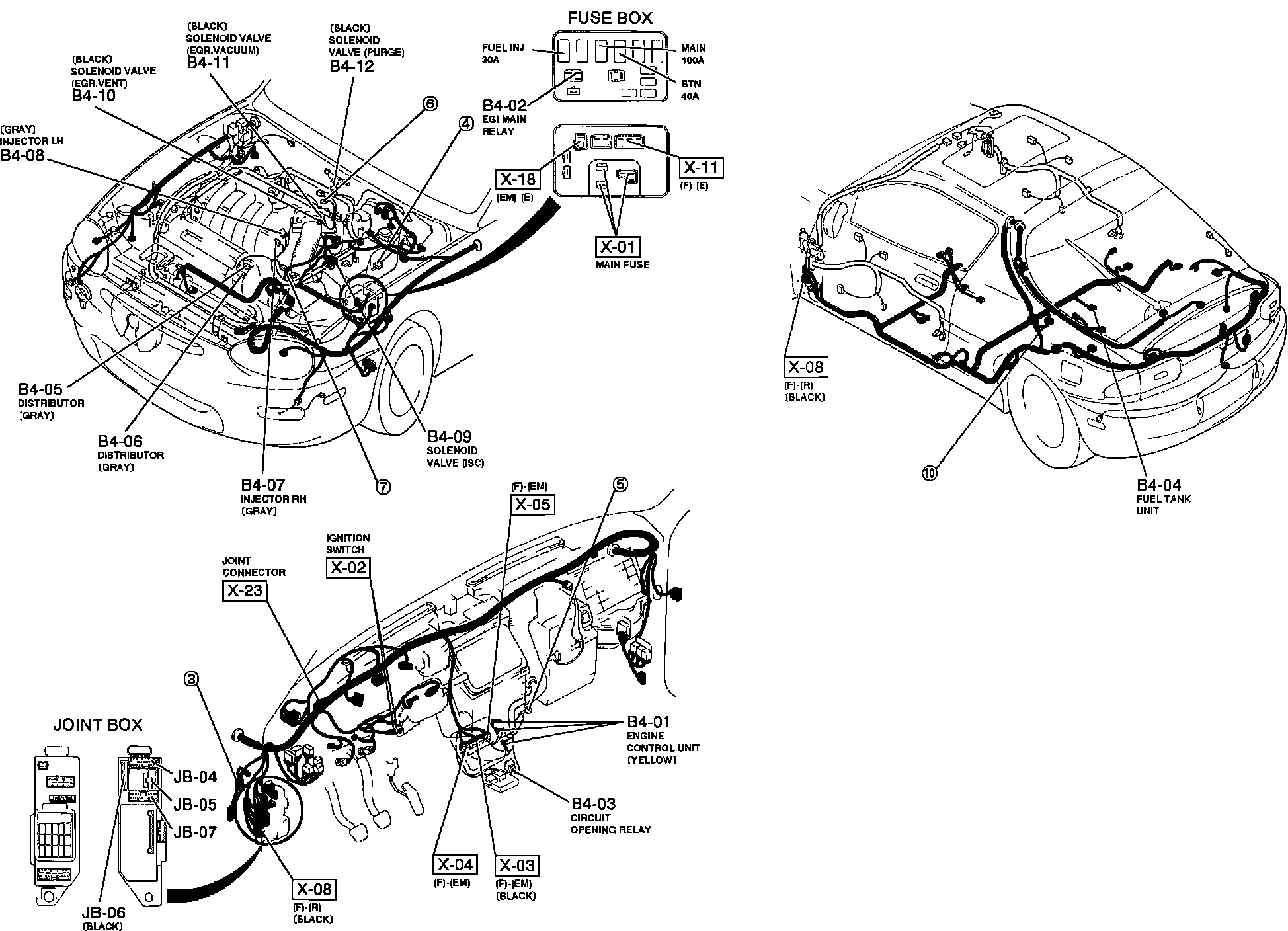

Engine Control System. A/T. Harness And Connector Locations:

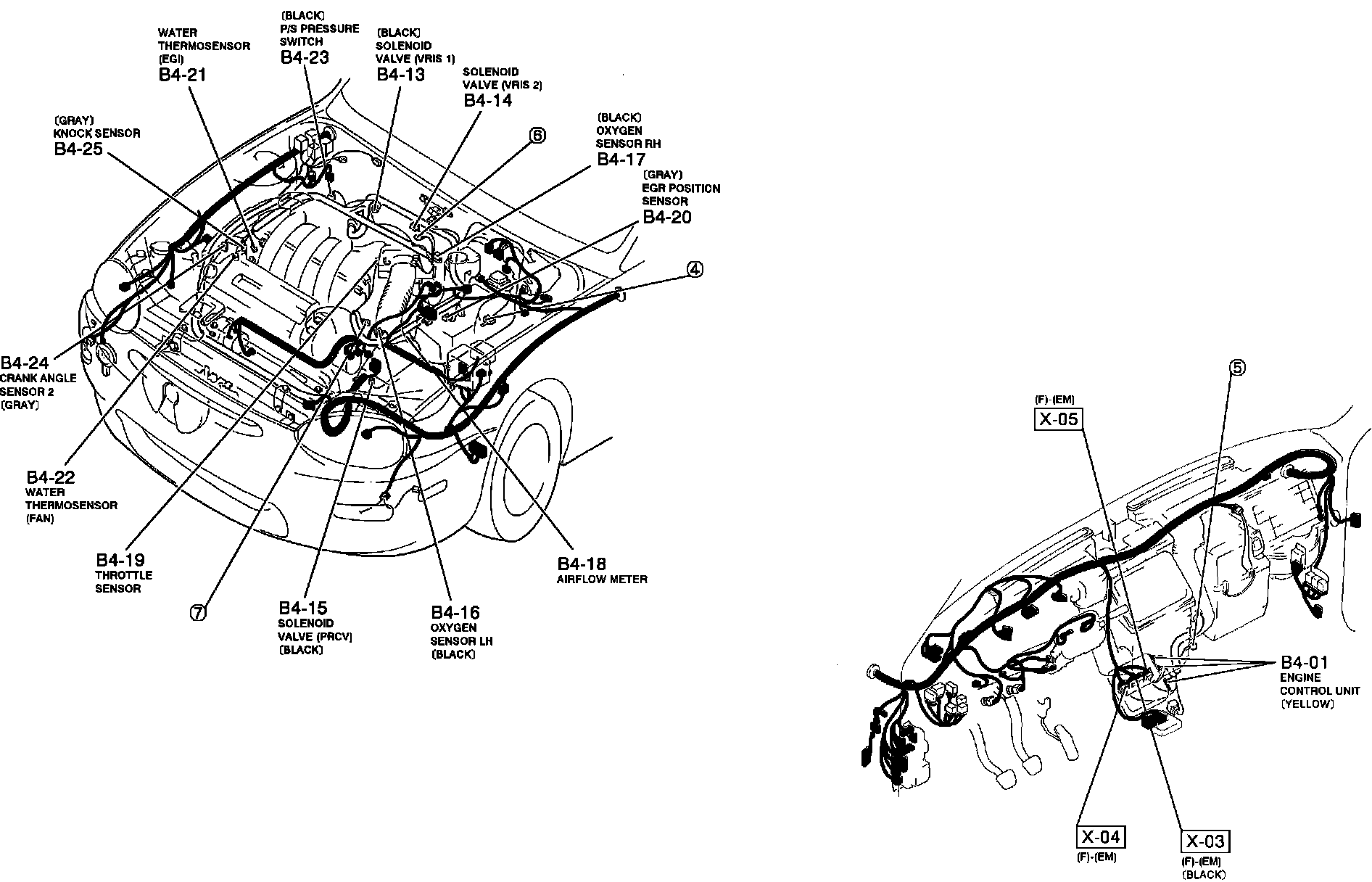

Engine Control System. A/T. Harness And Connector Locations:
