Home >> Mazda >> 1992 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Timer/Control Unit >> Locations

Timer/Control Unit: Locations

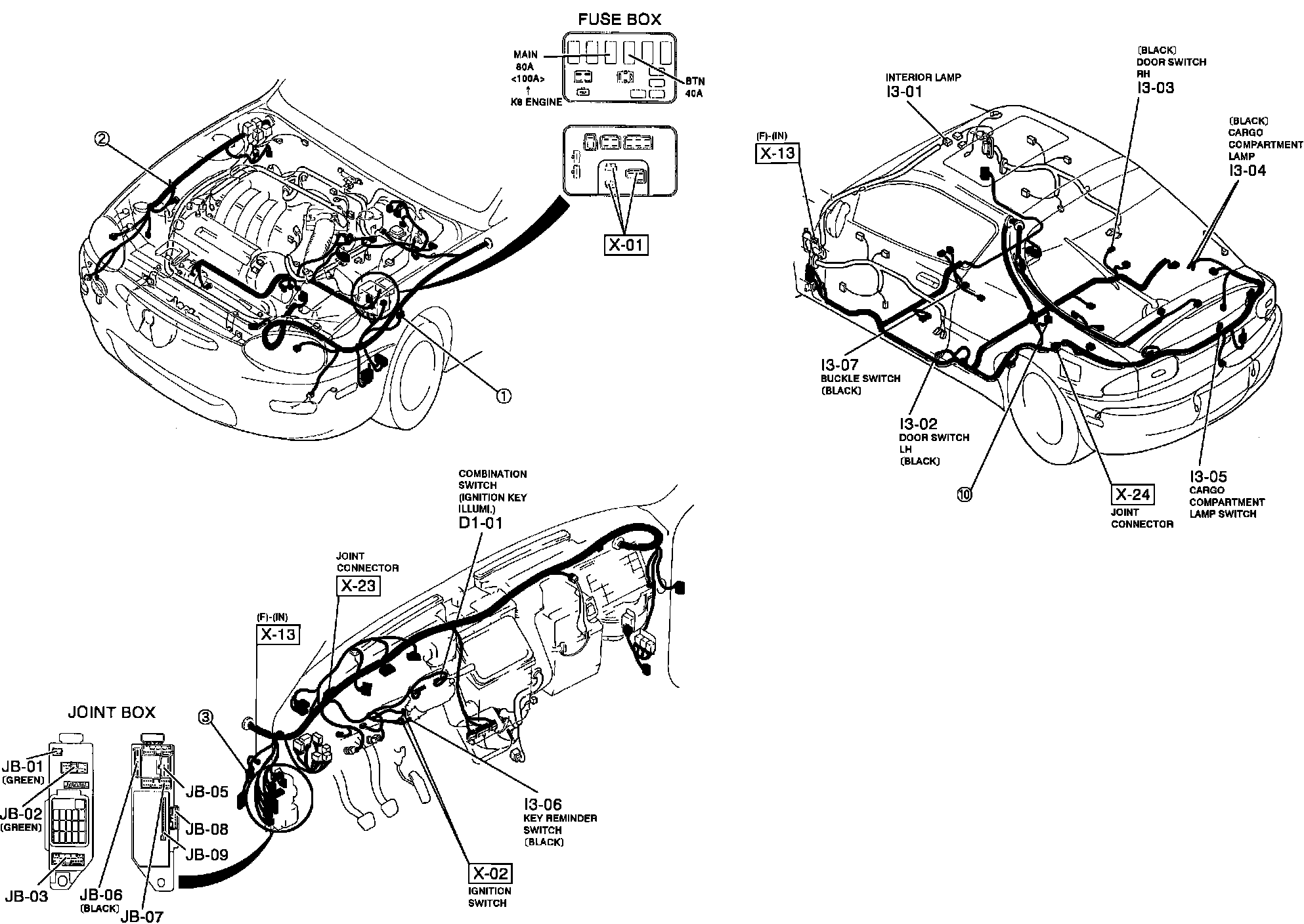

Central Processing Unit (CPU), Interior Lamps And Cargo Compartment Lamps. Harness And Connector Locations:
