Computers and Control Systems: Locations

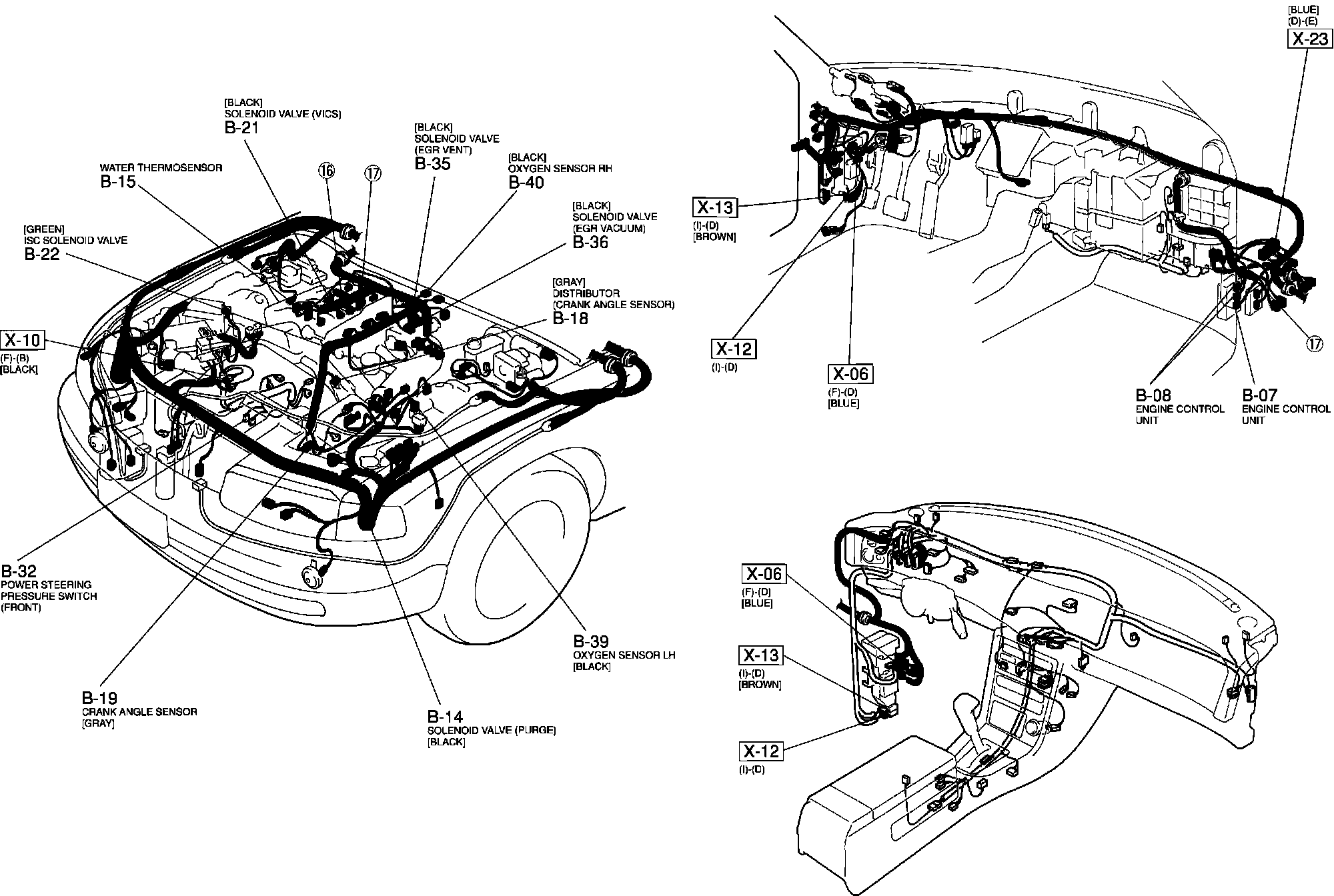

Engine Control System. Harness And Connector Locations:

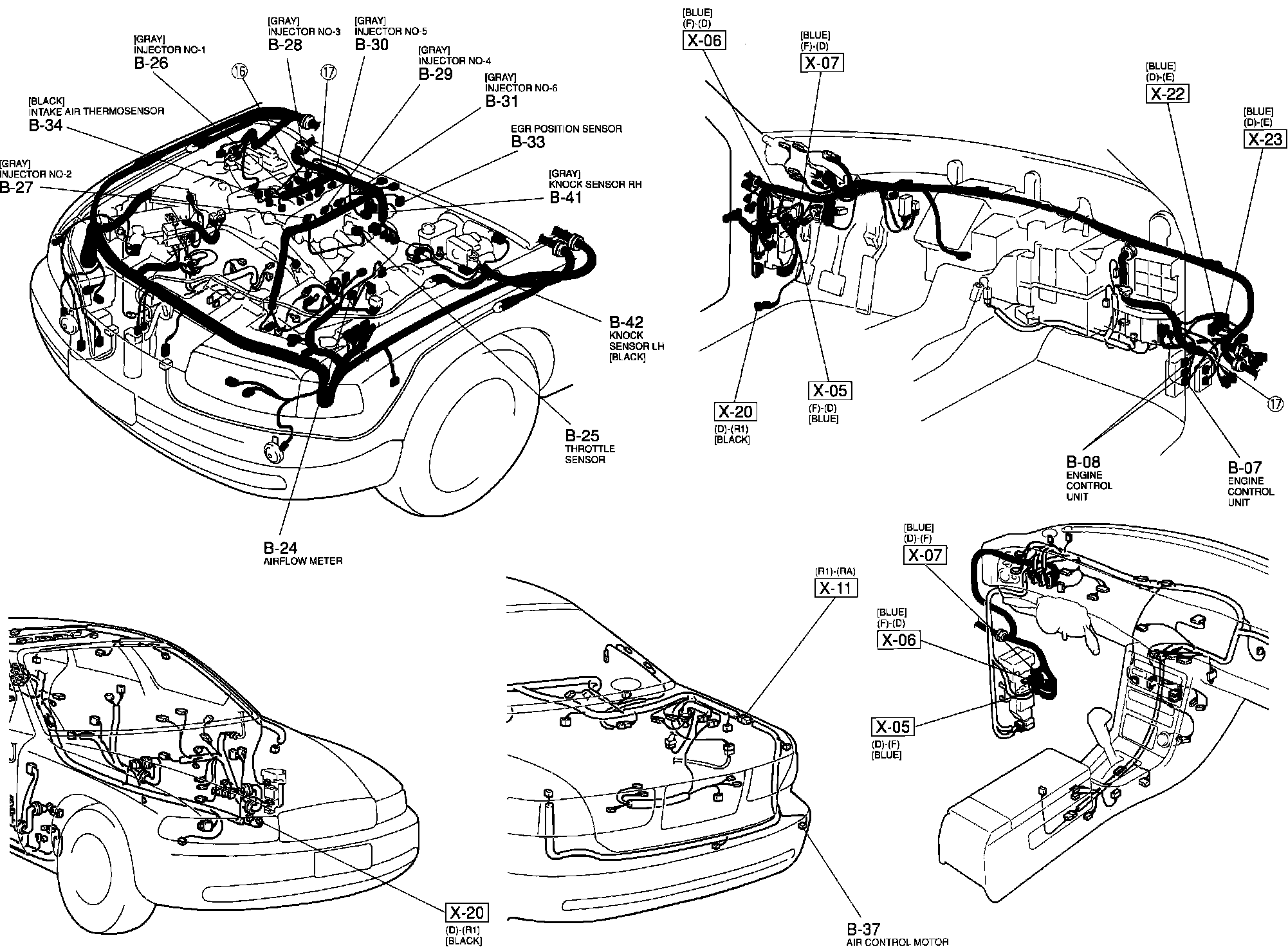

Engine Control System. Harness And Connector Locations:

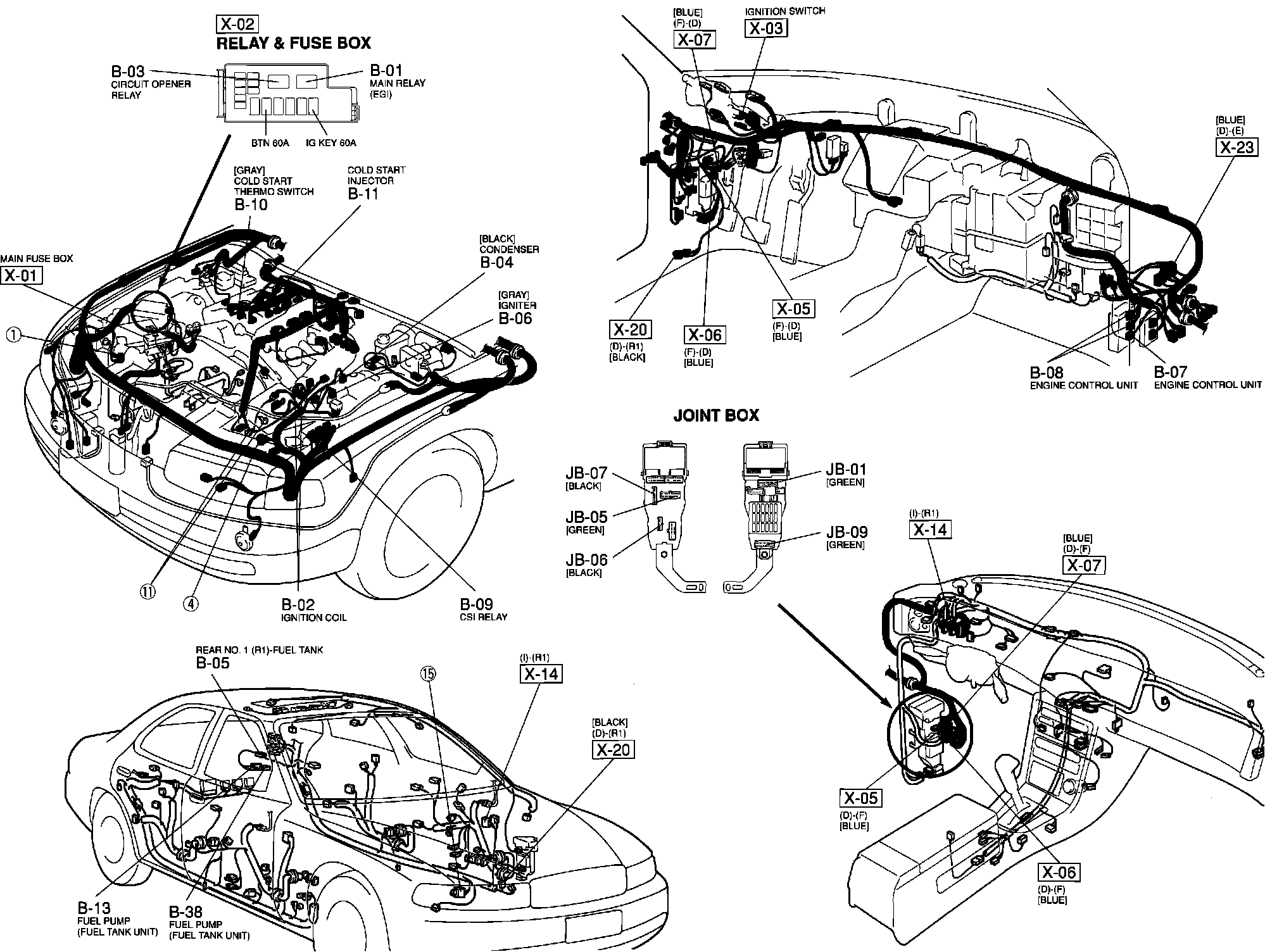

Engine Control System. Harness And Connector Locations:
