Home >> Mazda >> 1992 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems

Antitheft and Alarm Systems

Theft Deterrent System. Connector Identification:

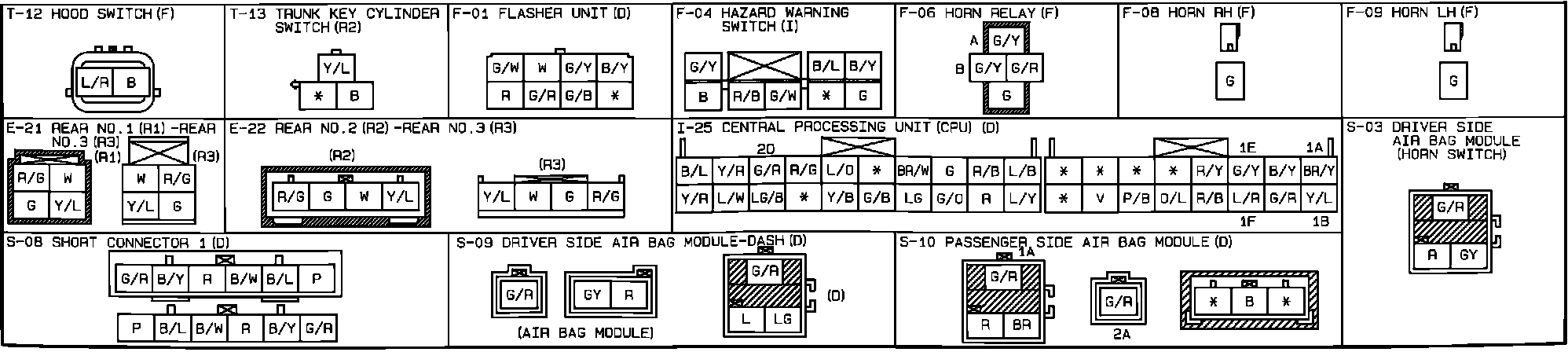

Theft Deterrent System. Connector Identification:
