Mazda
>>
1991
>>
MX-6 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Distributor
>>
Diagrams
>>
Exploded Views
Exploded Views

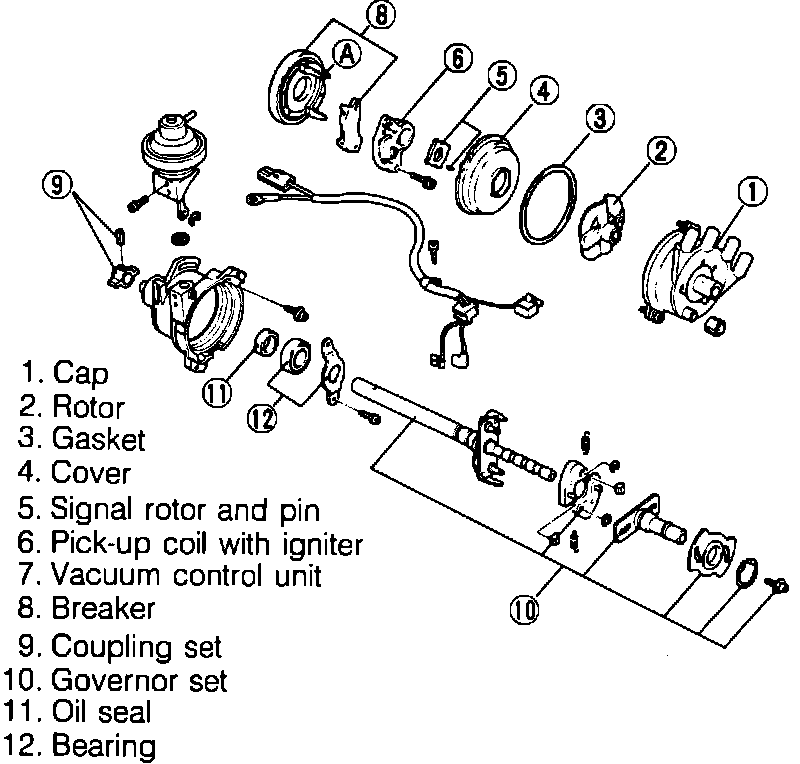

Distributor Assembly:
