Home >> Mazda >> 1991 >> MX-5 Miata L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module >> Checkpoint For Each Terminal >> Terminals 1P-2H

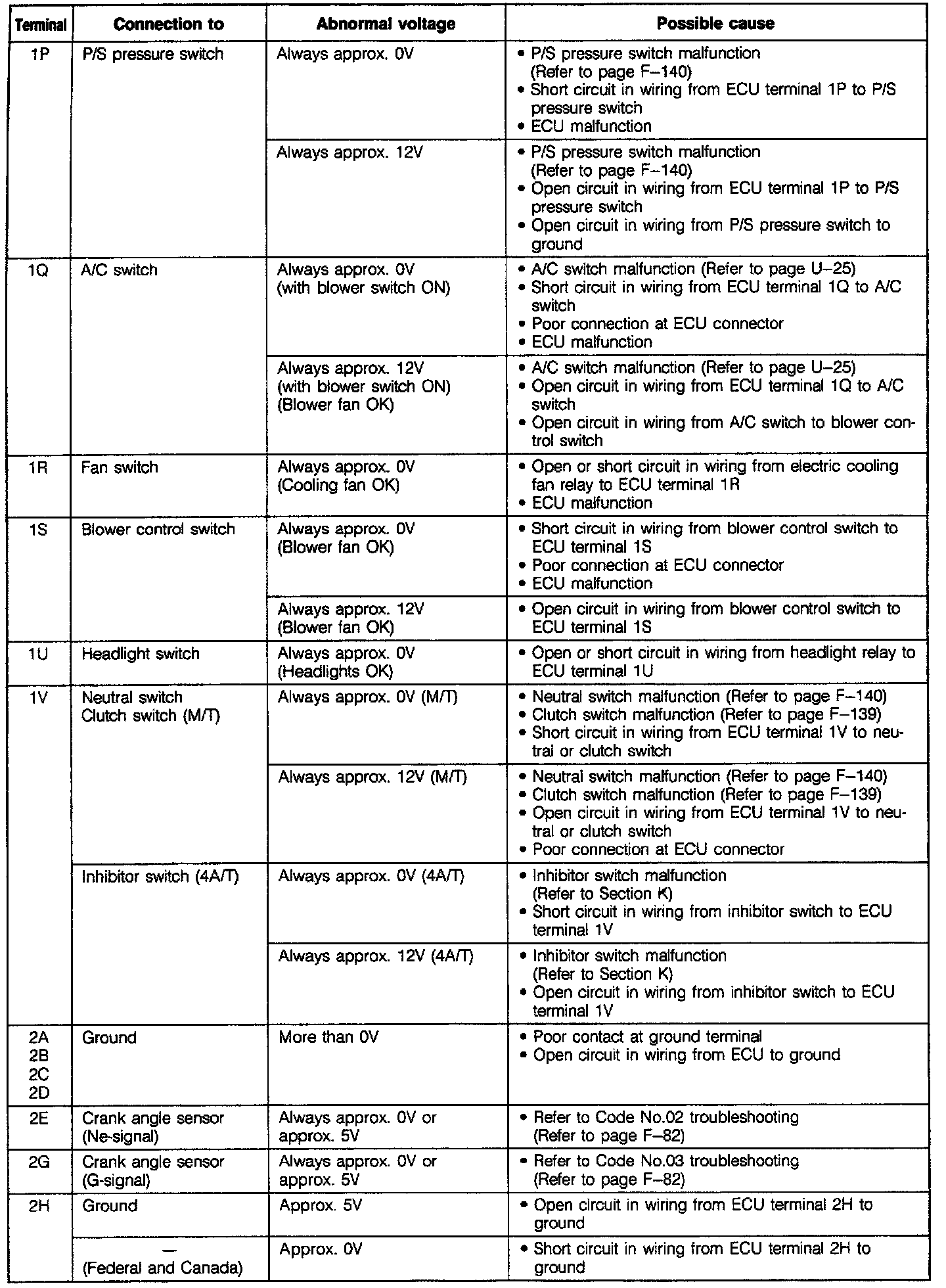

Terminals 1P-2H
