Home >> Mazda >> 1991 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting System >> Ignition Switch

Ignition Switch

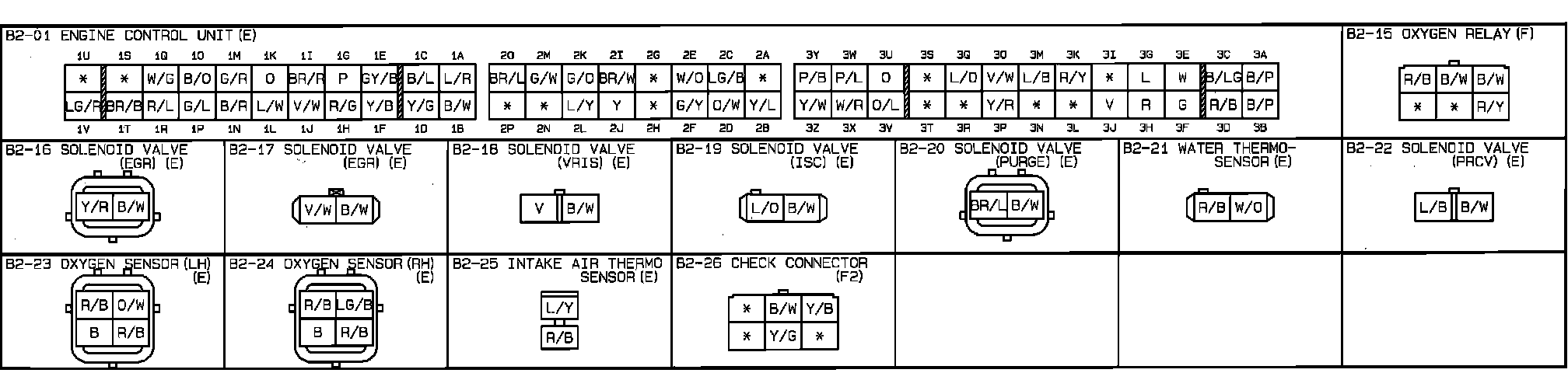

Engine Control System. DOHC. Connector Identification:

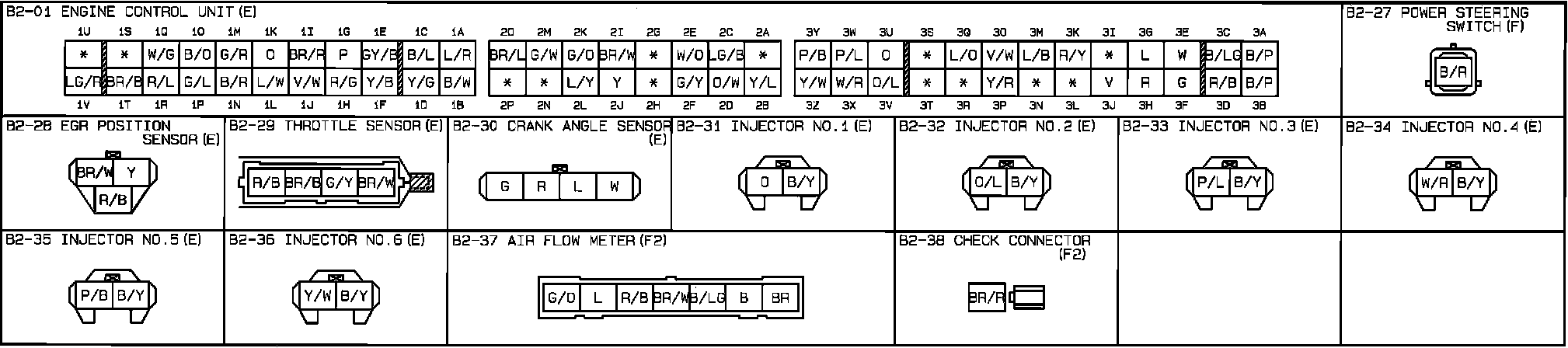

Engine Control System. DOHC. Connector Identification:

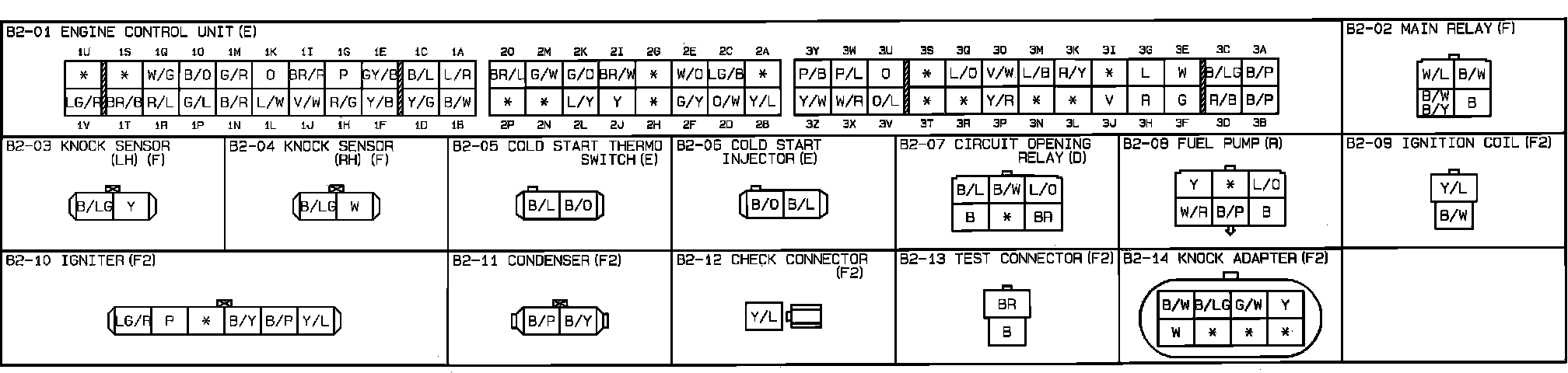

Engine Control System. DOHC. Connector Identification:
