Home >> Mazda >> 1991 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module >> 2WD

2WD

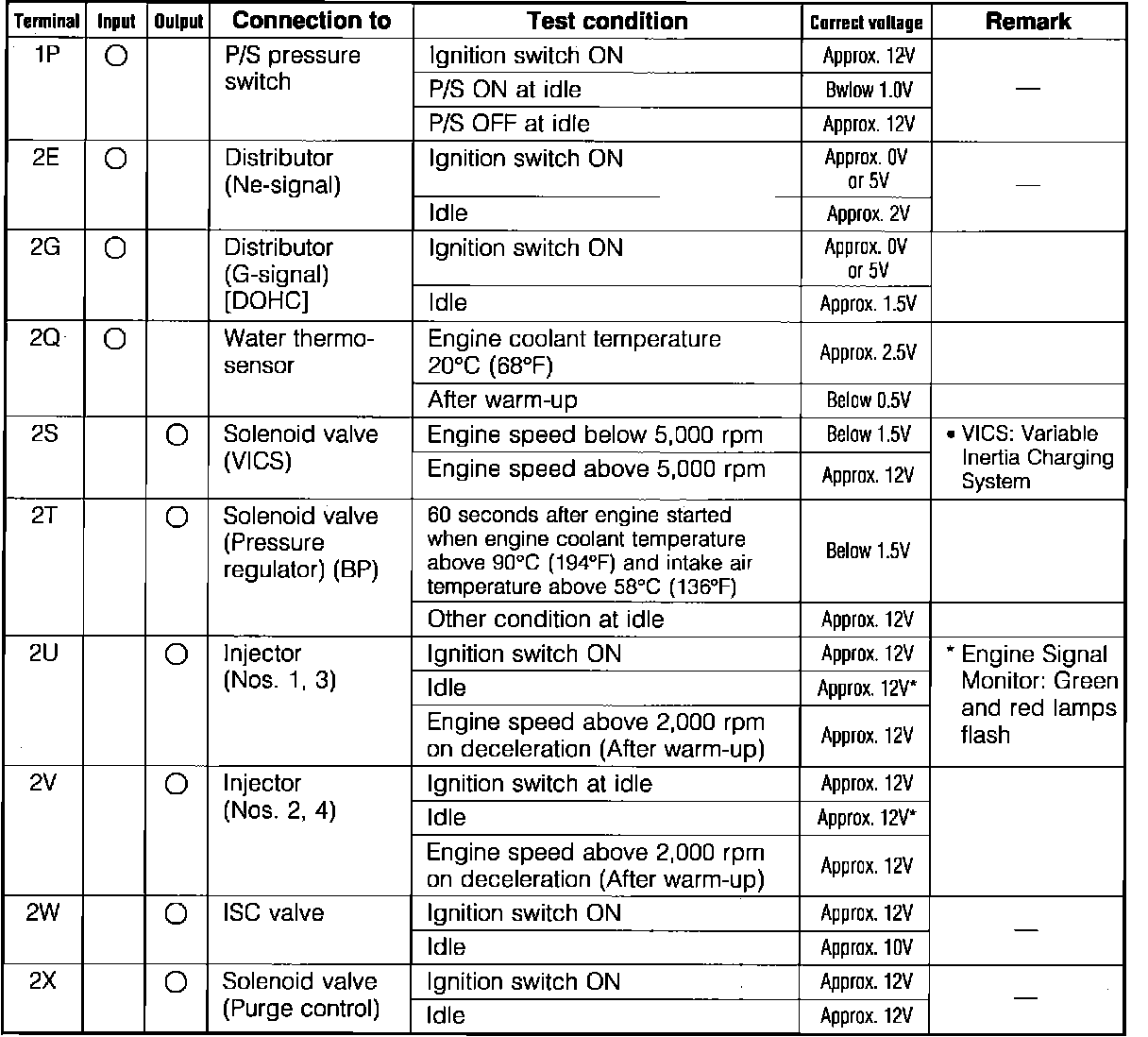

Engine Control System. 2wd. ECU Pin Voltage Chart:

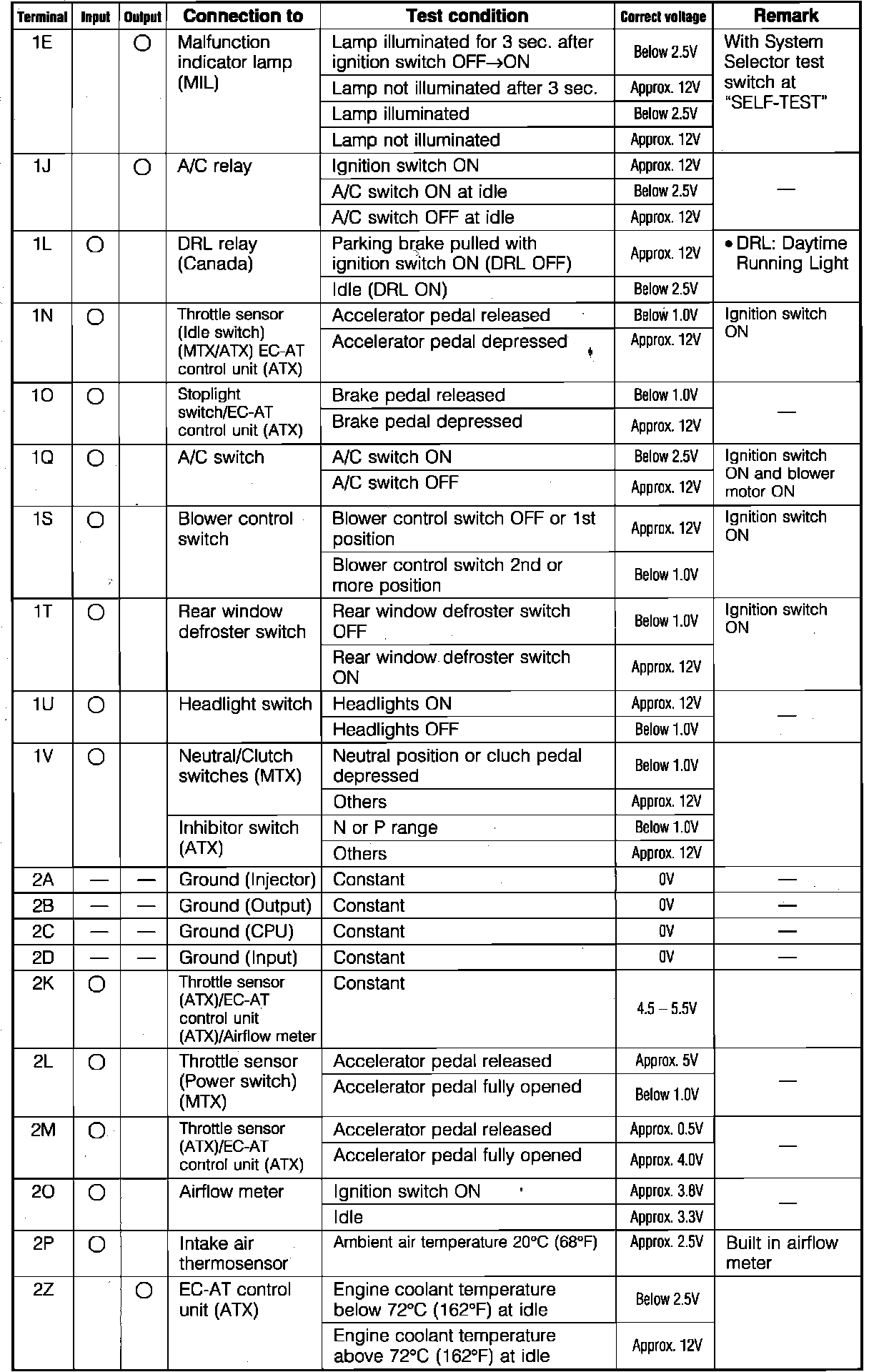

Engine Control System. 2wd. ECU Pin Voltage Chart:

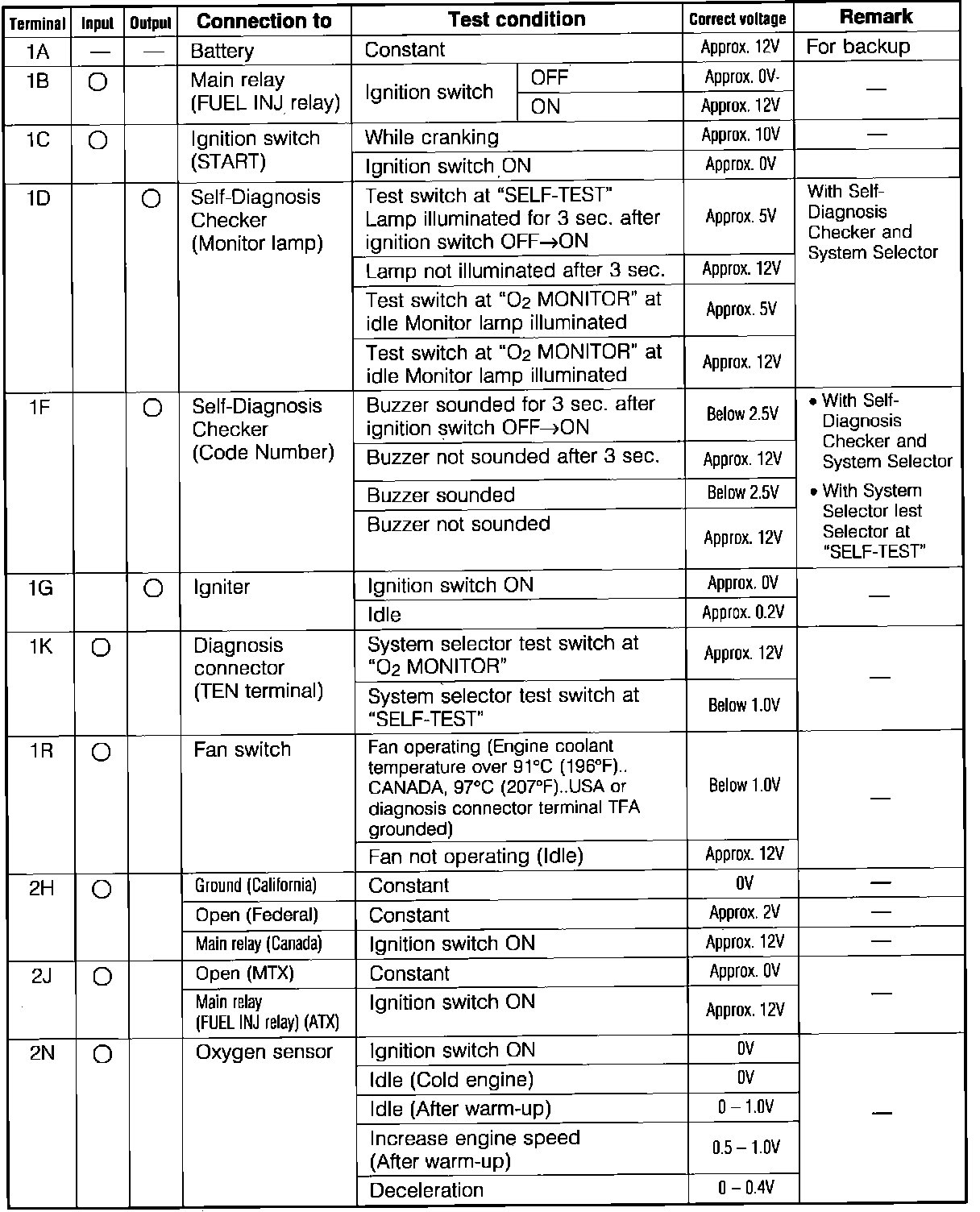

Engine Control System. 2wd. ECU Pin Voltage Chart:
