Home
>>
Mazda
>>
1990
>>
929 V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Connector Locations
Connector Locations

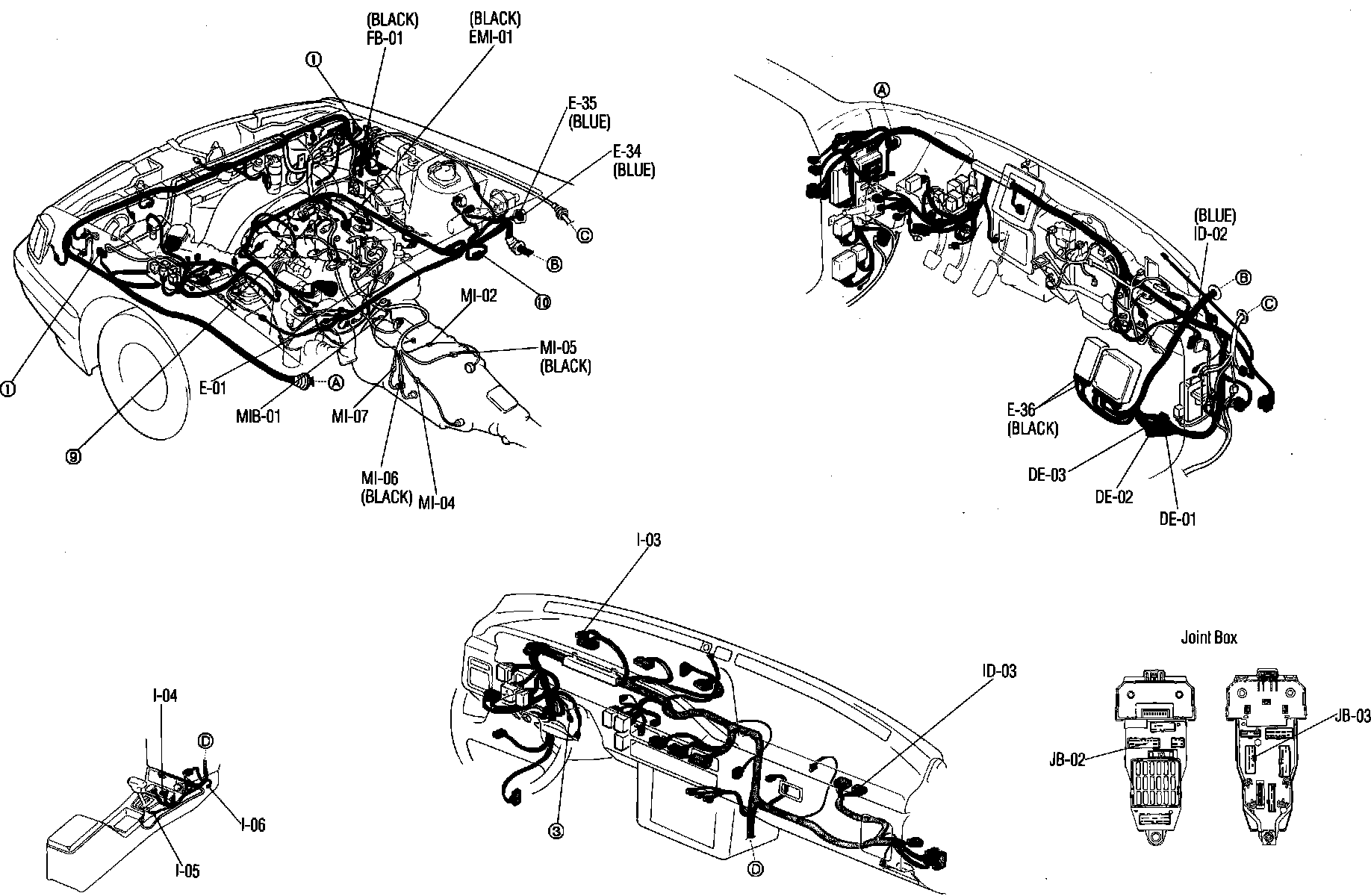

Automatic Transmission Control Unit & Shift Lock System. SOHC Engine. Harness Locations:
