Home >> Mazda >> 1990 >> 929 V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Defogger

Rear Defogger

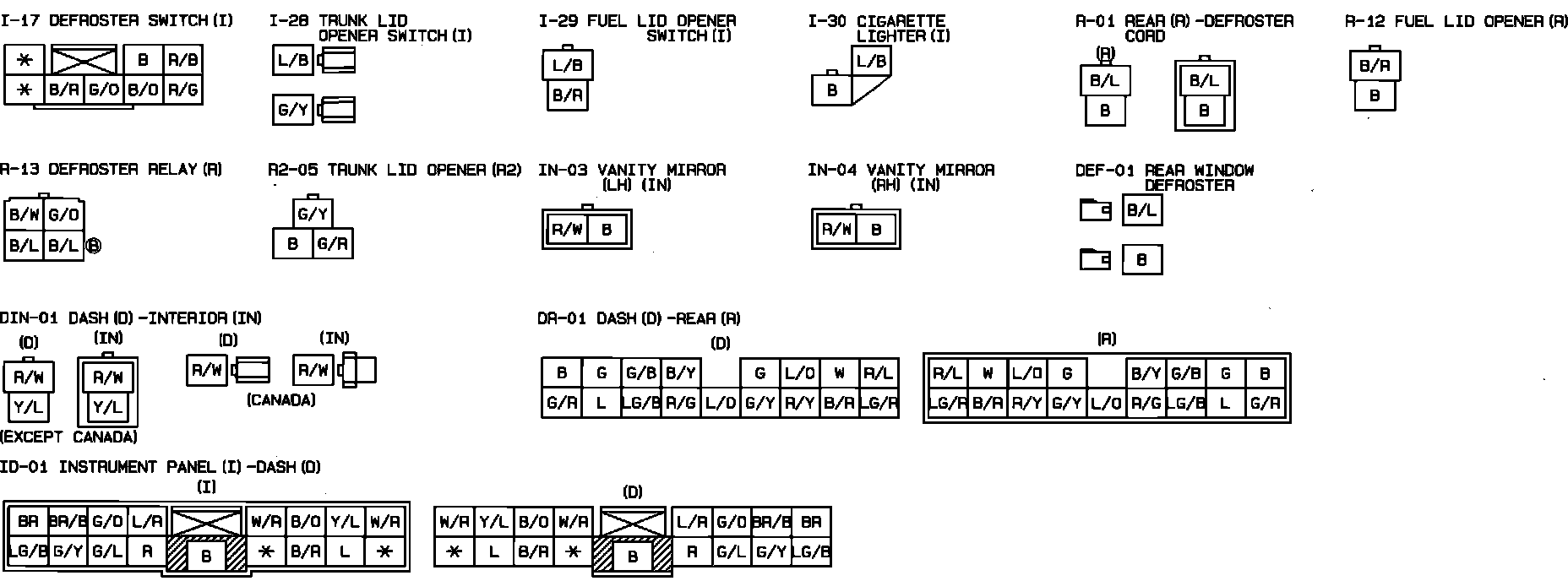

Vanity Mirror, Trunk & Lid Opener, Rear Window Defogger & Cigar Lighter. Connector Identification:
