Connector Locations

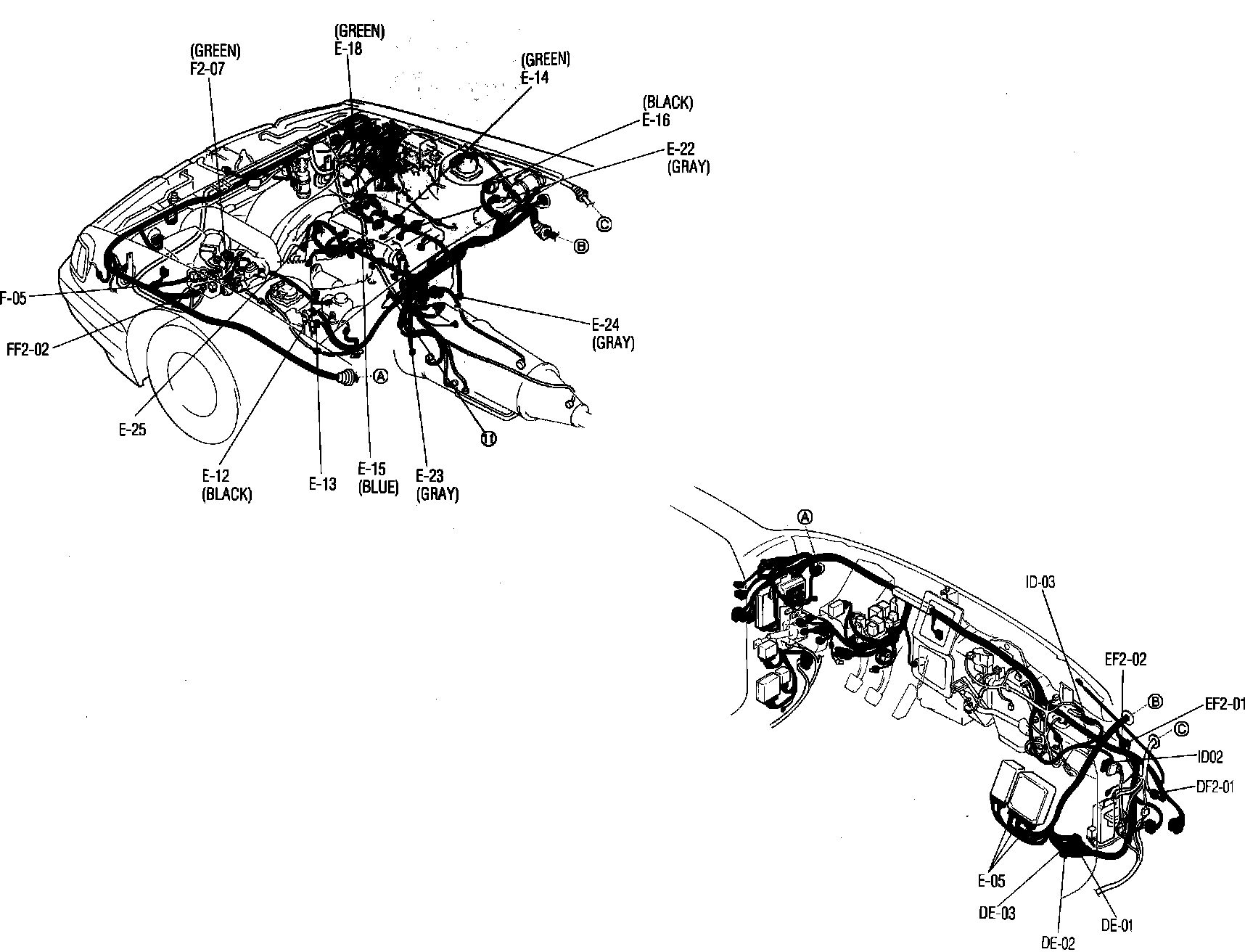

Ignition & Engine Control System. DOHC Engine. Harness Locations:

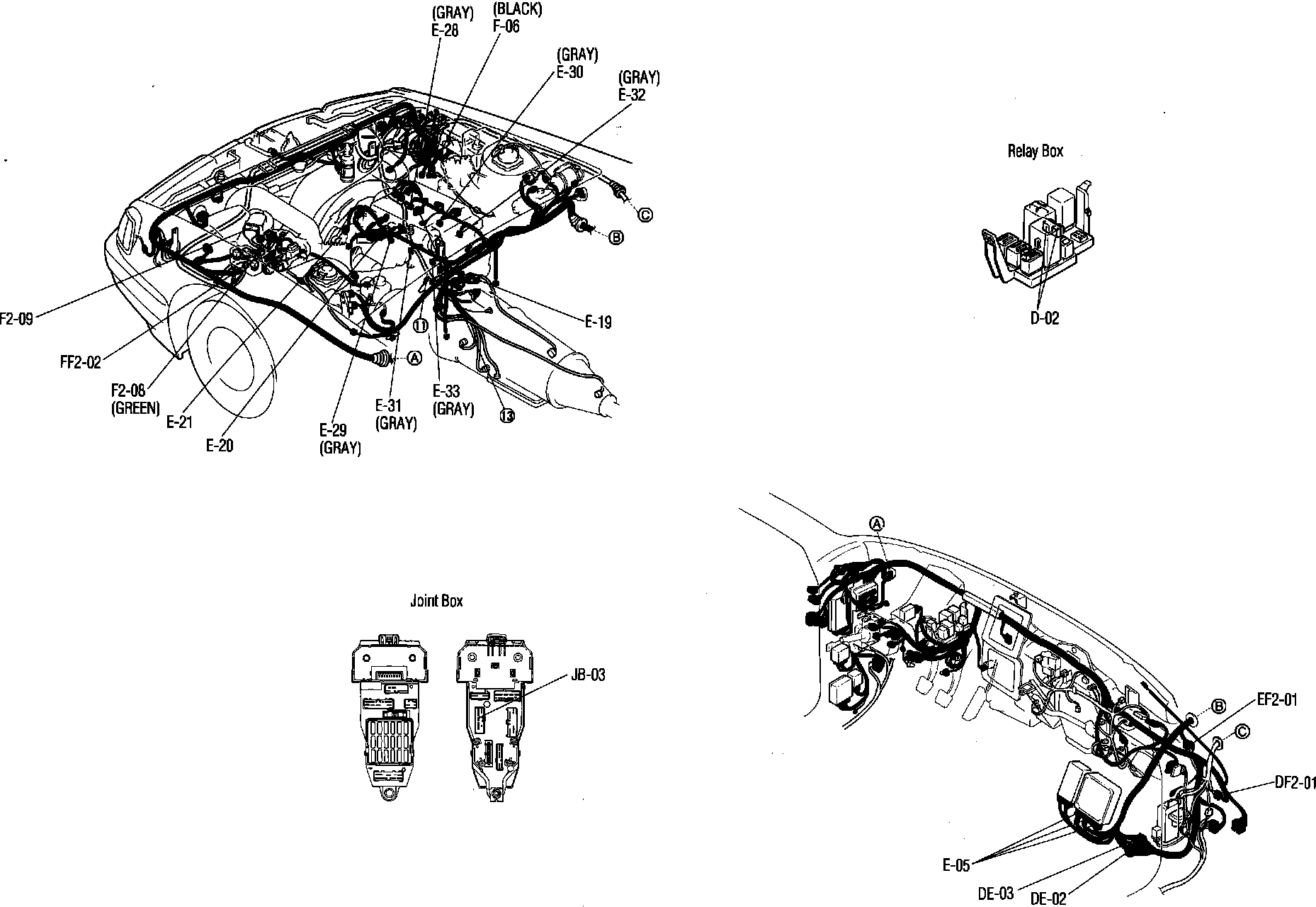

Ignition & Engine Control System. DOHC Engine. Harness Locations:

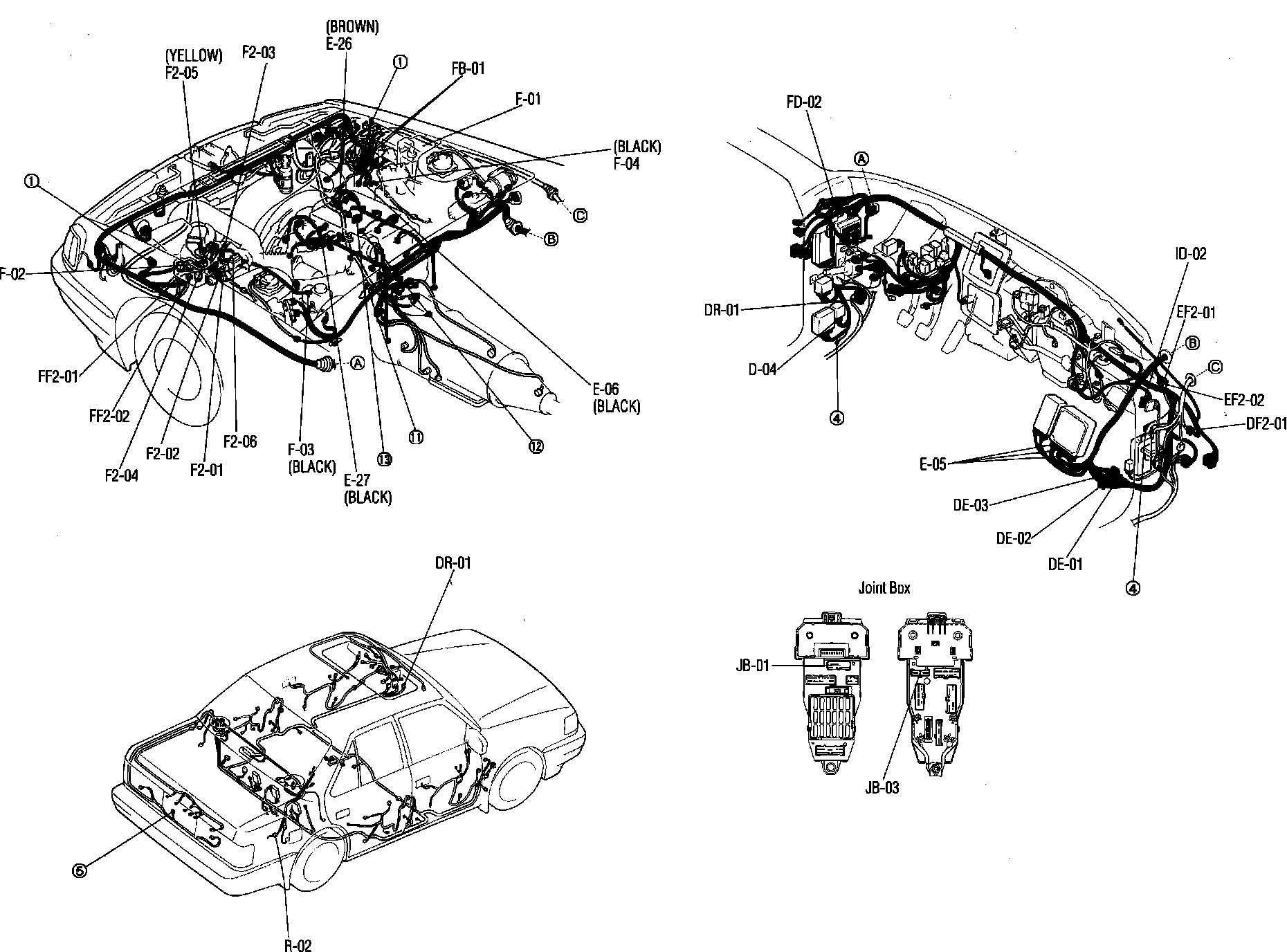

Ignition & Engine Control System. DOHC Engine. Harness Locations:
