Home >> Mazda >> 1990 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting System >> Ignition Switch

Ignition Switch

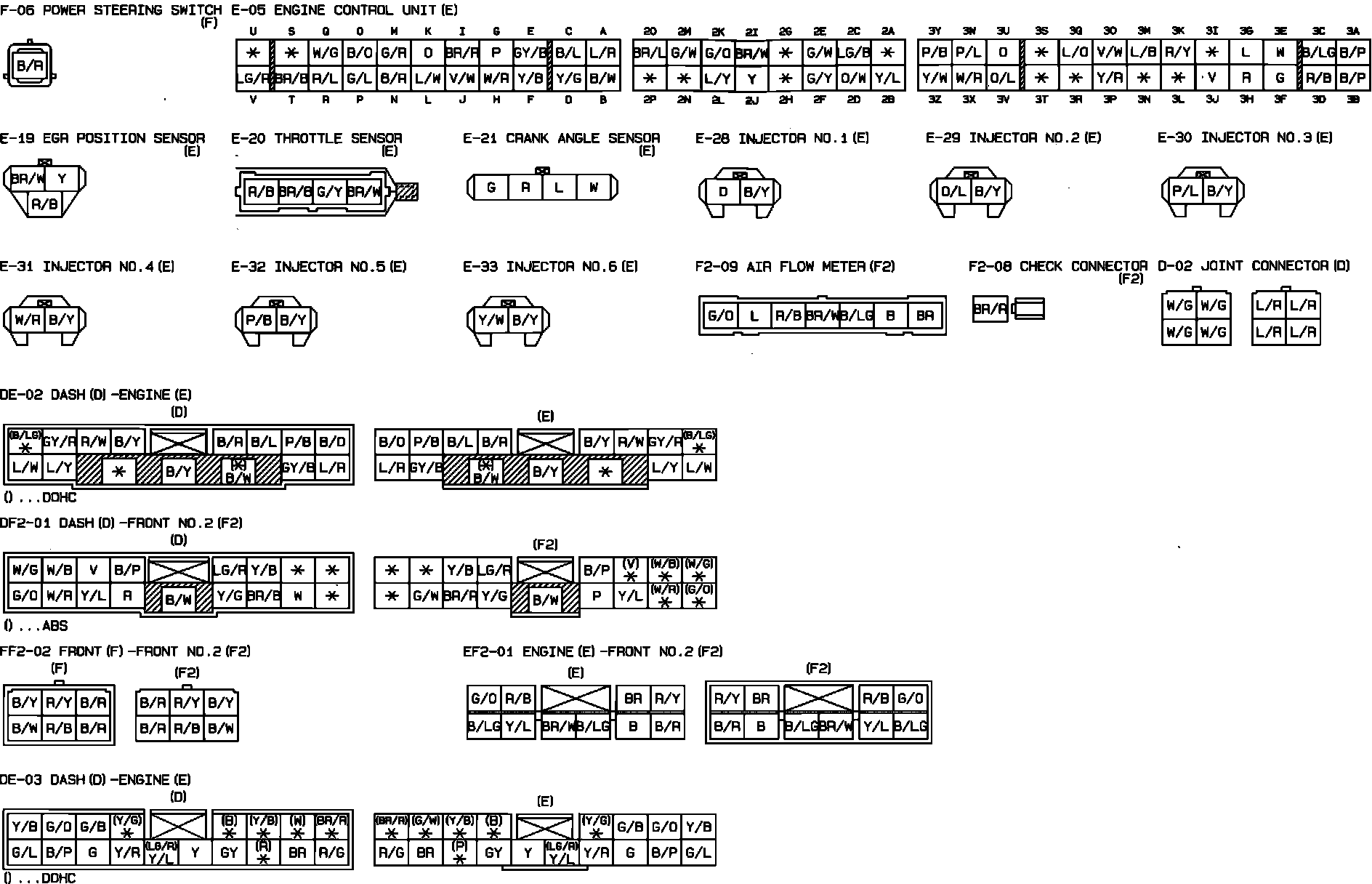

Ignition & Engine Control System. DOHC Engine. Connector Identification:

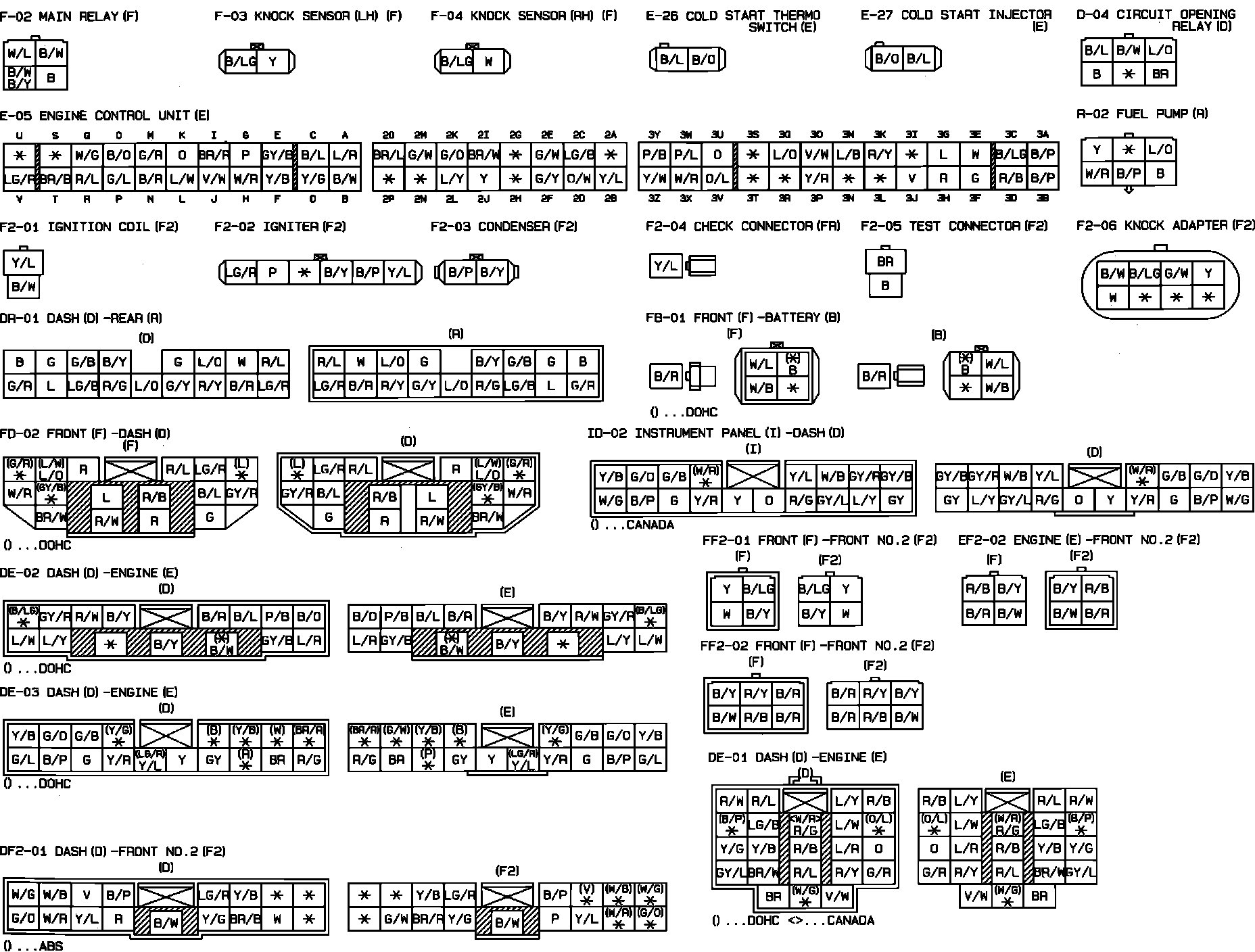

Ignition & Engine Control System. DOHC Engine. Connector Identification:

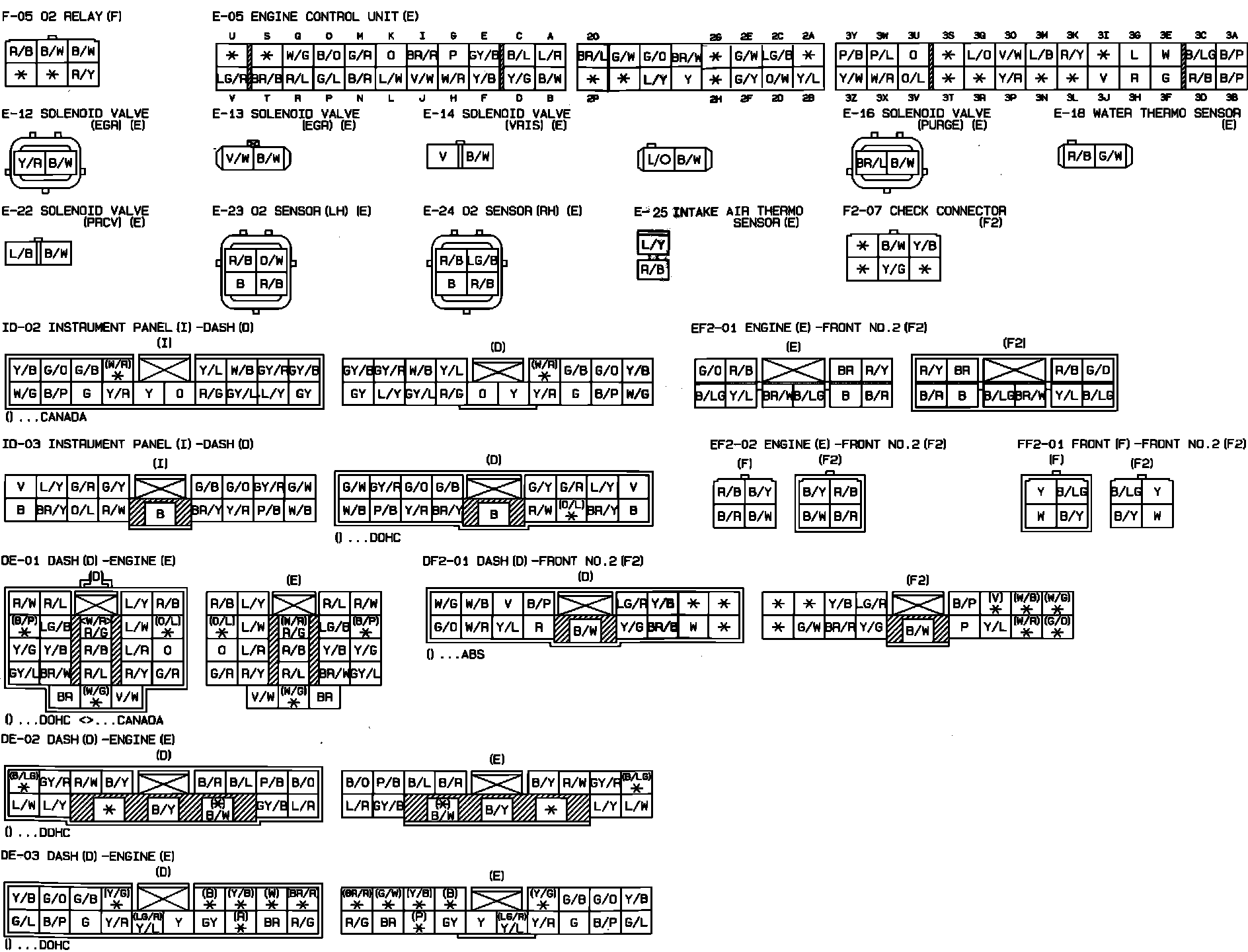

Ignition & Engine Control System. DOHC Engine. Connector Identification:
