Home >> Mazda >> 1990 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Connector Views

Connector Views

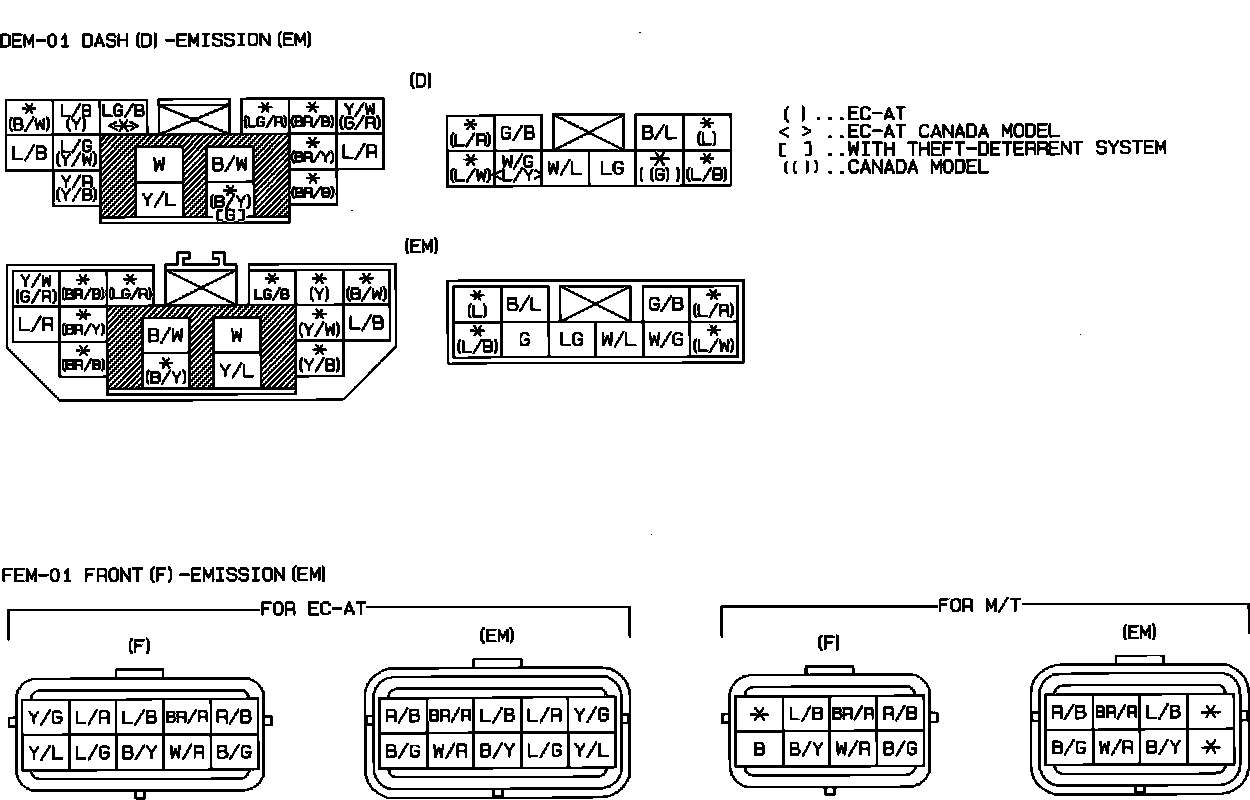

Ignition & Engine Control System. Non-Turbo. Connector Identification:

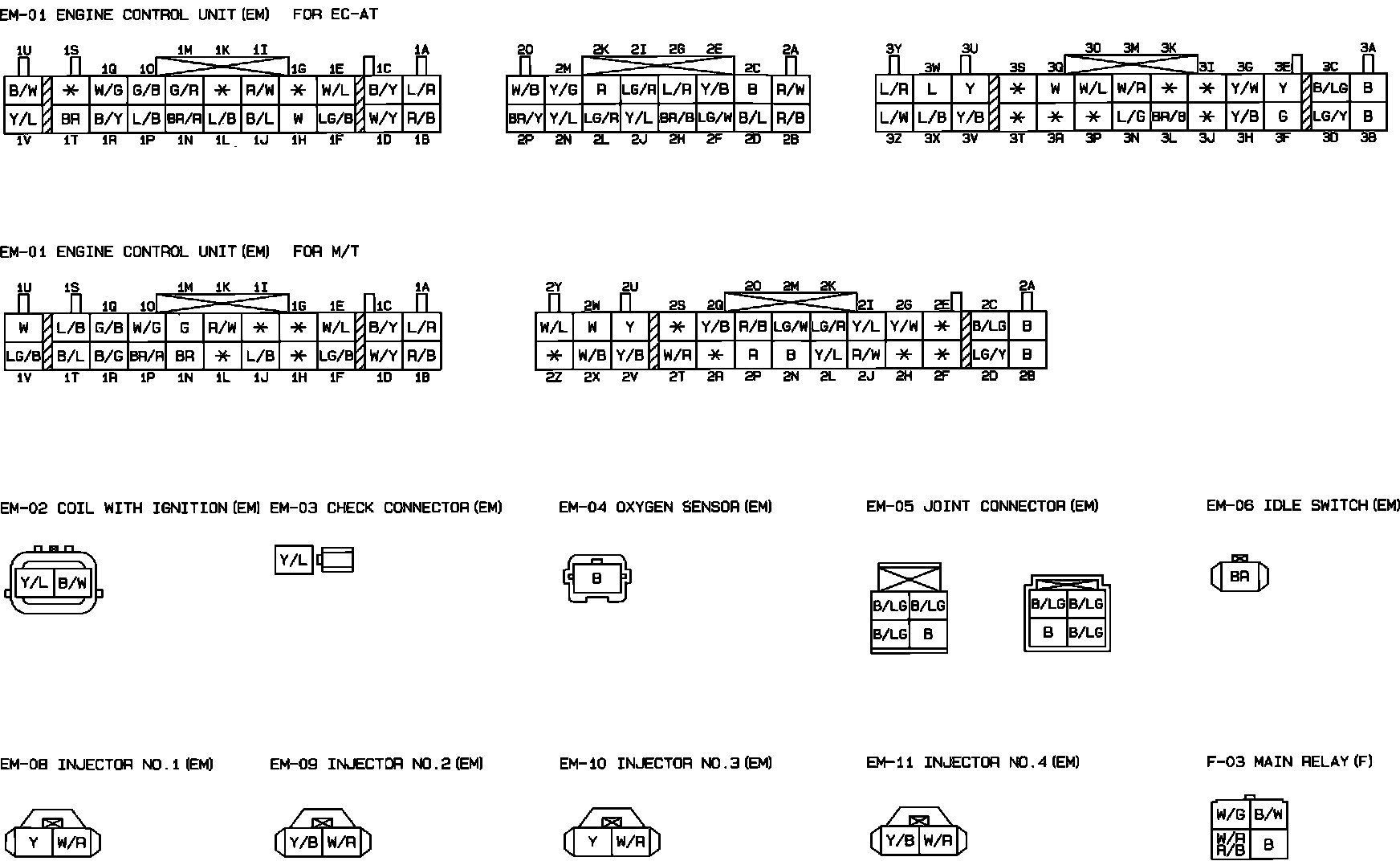

Ignition & Engine Control System. Non-Turbo. Connector Identification:
